919-560 04/30/15
LRI4E/HRI4E/LRI6E/HRI6E/E33

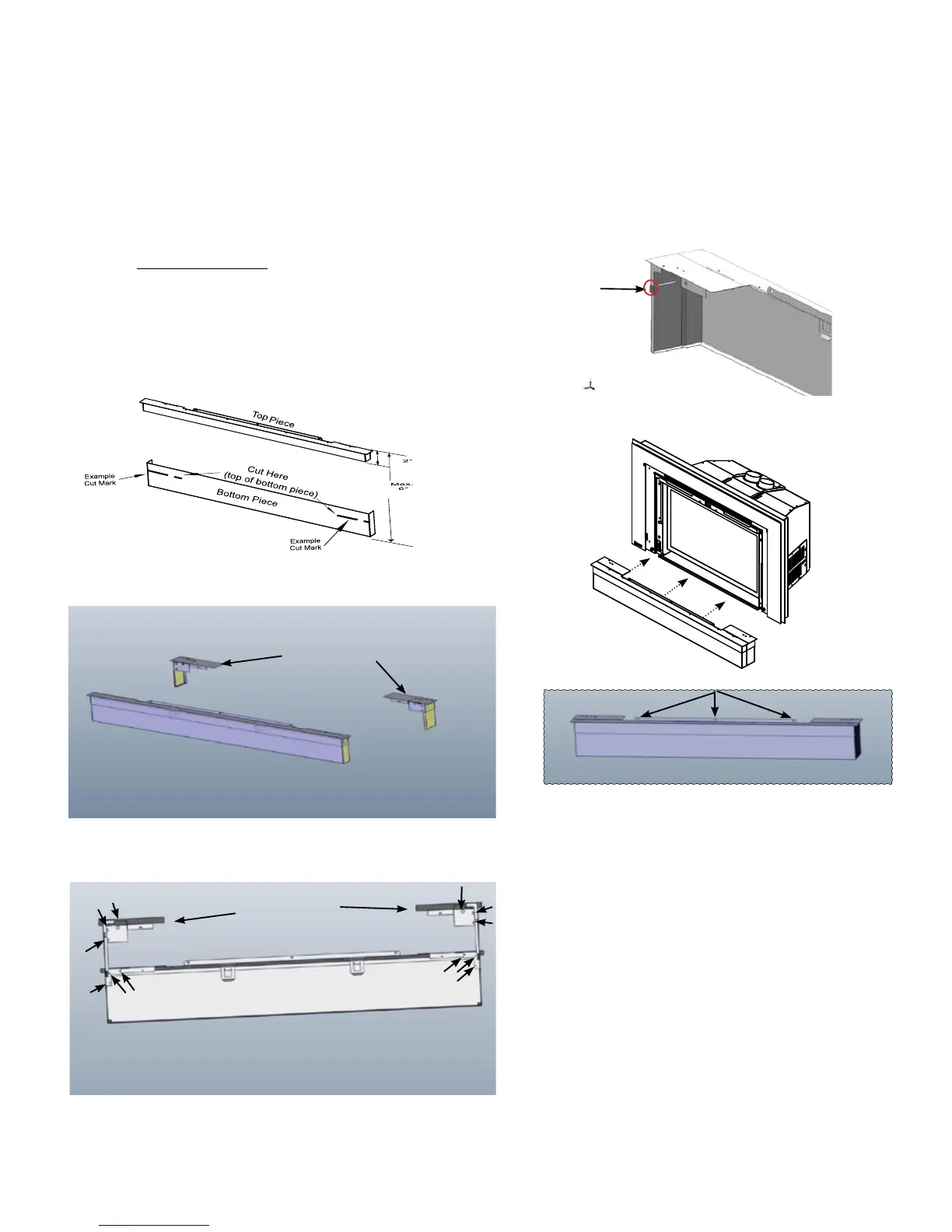

OPTIONAL HEARTH TRIM INSTALLATION -
VIGNETTE FACEPLATE WITH SPACER AND LOW PROFILE FACEPLATE
Customizing the Hearth Trim:
The Hearth Tr i m can be adjusted to custom fit an installation by pulling
apart the top piece from the bottom piece. Minimum height of the hearth
trim is 2” and can be adjusted up to maximum 6”.
1) Cut the top of the bottom piece of the hearth trim to the appropriate
height using a metal cutting blade.
NOTE: The tab bends at the back of the top piece of the hearth trim
should be used as the measuring point to the hearth to measure the
height required.
2) Reattach the top piece of the hearth trim to the cut bottom piece by
fitting in place.
6) Line up the hearth trim with base of the unit and secure it with 3 screws
as shown below.
Spacer Brackets
Attach the hearth trim and spacer bracket with 3 screws each side
Spacer Brackets
Hearth Trim Front Part
4) Attach the top and bottom part of the spacer brackets and then attach these
spacer brackets to the assembled hearth trim with 3 screws.
Align hearth trim to base of the unit and secure it with 3 screws
5) Secure the hearth trim with a clip on its side to keep it steady as shown
in the diagram below .
Clip - secures
hearth trim
3) Similar to the front hearth trim, cut the top of the bottom piece of the spacer
brackets to the appropriate height.
To Next Page
