E33-10
919-577 5/25/15
OVERSIZE BACKINGPLATE INSTALLATION
NOTE:
It is recommended to install oversize backing plate
to the vignette faceplate seperately and then install
both together to the unit.
Oversize backing plate can be ordered for the unit
if required.

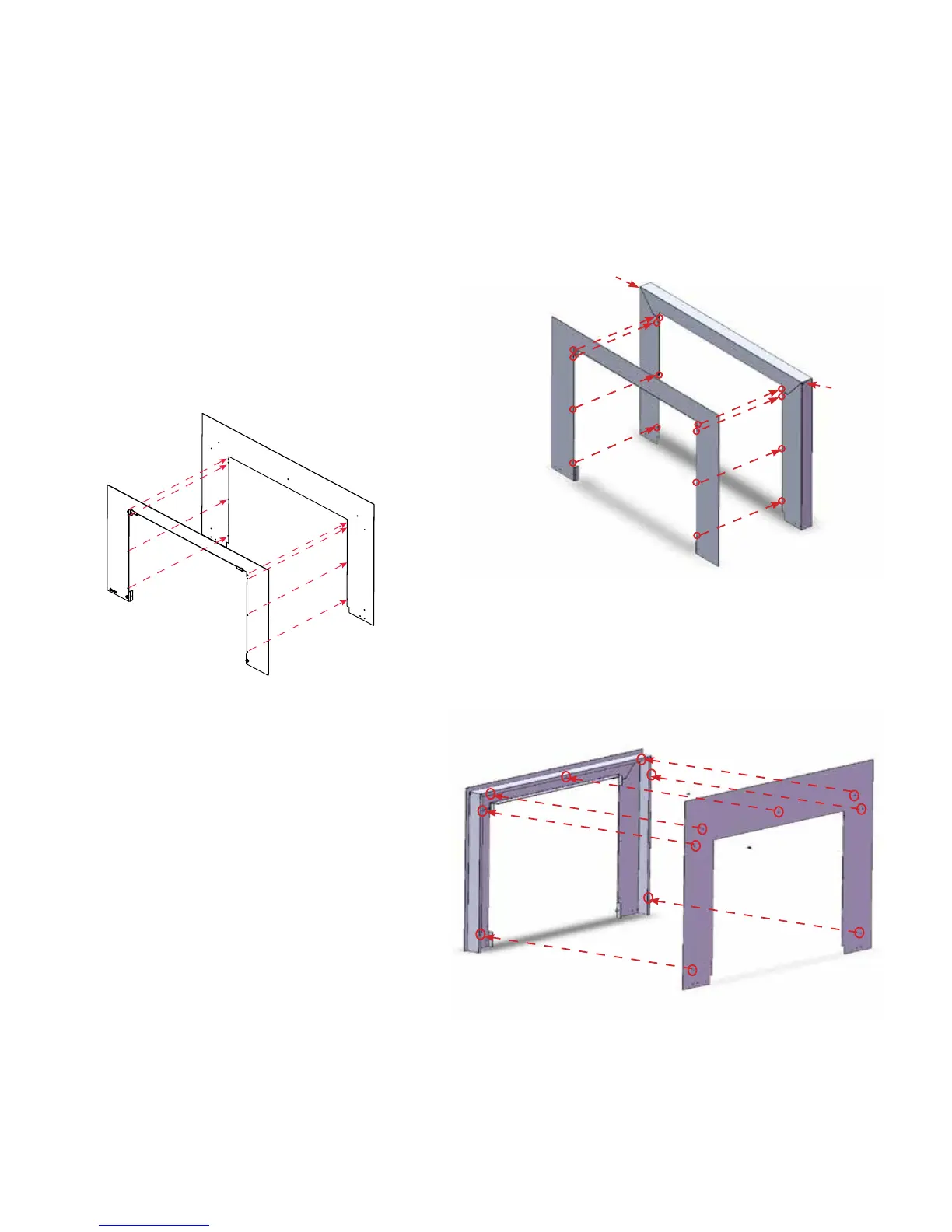

1) Slide the oversize backing plate behind the vignette
faceplate and secure it with 8 screws (4 per side).
2) Proceed to faceplate installation- see “Optional Vi-
gnette Faceplate Installation”.
OVERSIZE BACKING PLATE INSTALLATION
WITHOUT SPACER
OVERSIZE BACKING PLATE INSTALLATION WITH
SPACER
1) Install the spacer to the back of the faceplate backing with 6
screws from the front, 2 on the top of the faceplate backing
and 2 screws on the top sides.
2) Install the oversize backing plate to the faceplate backing
and spacer with 7 screws (2 on each side and 3 across the
top) installed from the backside of the backing plate into the
backside of the assembled faceplate backing with spacer as
shown below.
3) Proceed to faceplate installation- see “Optional Vignette Face-
plate Installation”.
