30 | E33-10 FPI Direct Vent Gas Insert
|
30
installation
OPTIONAL HEARTH TRIM INSTALLATION- LOW PROFILE

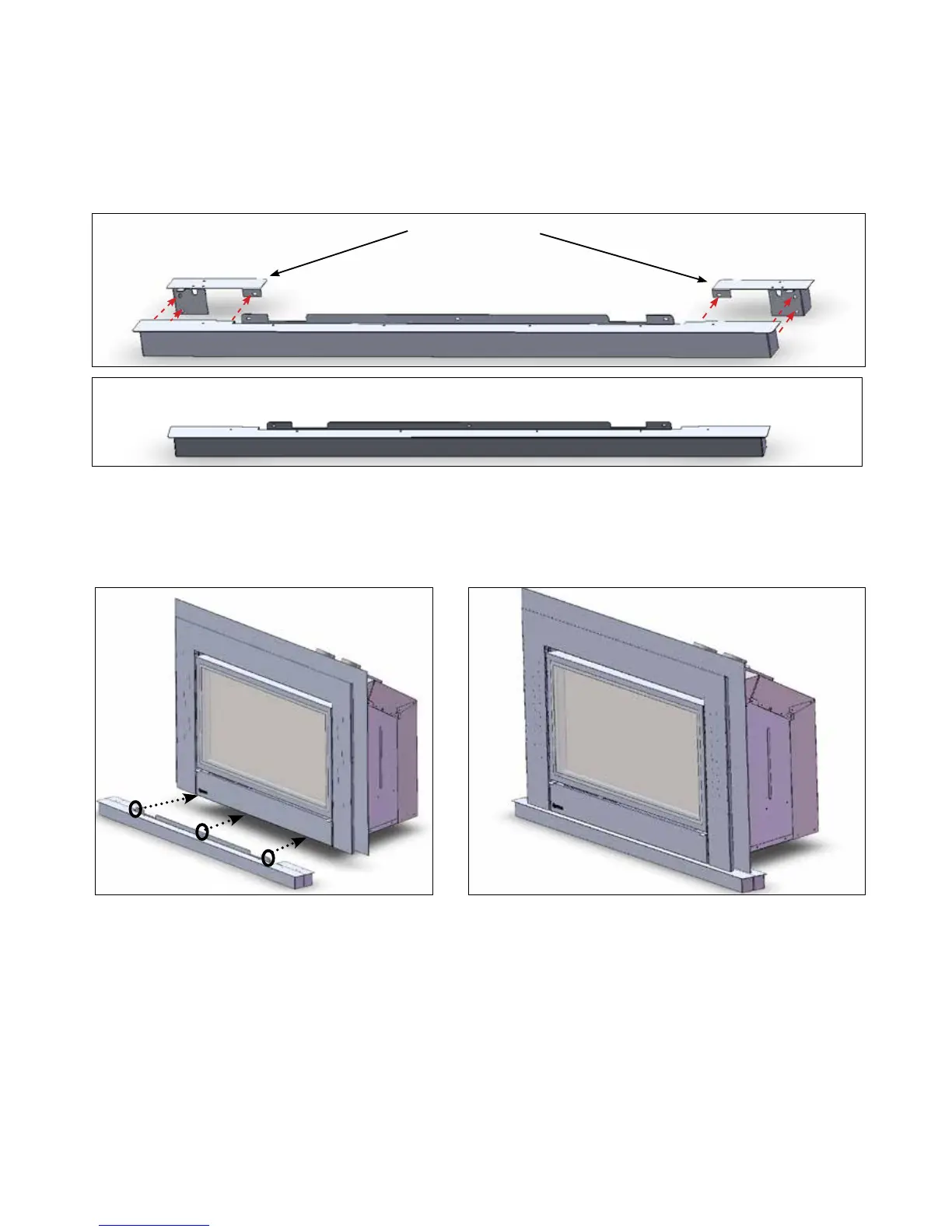

1. If you do not have spacer, remove the spacer brackets from the heart trim by removing 3
screws per side. Refer to diagrams 1 and 2 below.
Front
Spacer Brackets
Diagram 1-Top View
OPTIONAL HEARTH TRIM INSTALLATION- LOW PROFILE
2. Attach hearth trim to the unit with 3 screws as shown in the picture below.
Final Install
Diagram 2-Front View
Hearth Trim Front Part without Spacer Brackets
NOTE: Final Installation includes Rear brackets
as shown in the picture above.
