Regency E33-NG10 - Safety Screen and Flush Door Installation

E33-10 FPI Direct Vent Gas Insert | 31
|
31
installation
The standard ush door comes with a black frame. To install the frame, simply
hook the top door ange onto the top of the unit and swing the door towards
the unit, (Diagram 1 and 2). Be careful that the glass gasket does not roll up;
there must be a gap between the gasket and the door lip to ensure that the
door sits securely on the unit. Refer to Diagram 3.

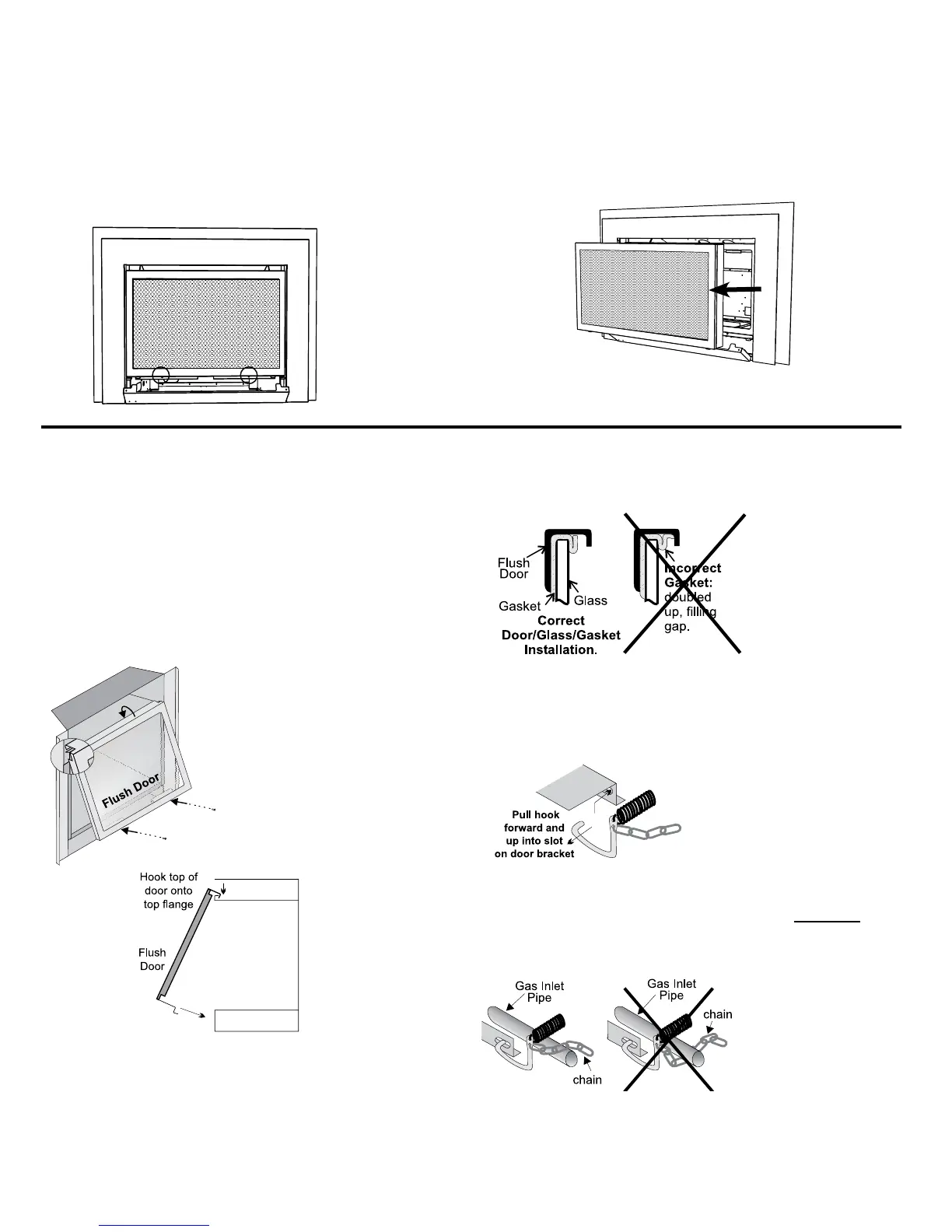

STANDARD FLUSH DOOR REMOVAL / INSTALLATION
SAFETY SCREEN INSTALLATION / REMOVAL - LOW PROFILE FACEPLATE
Diagram 2
Screws Diagram 1
1. To remove safety screen, ip open bottom louver and remove 2 screws
in locations shown below.
2. Pull o󰀨 safety screen and frame from glass door.
3. To install, reverse Steps 2-1.
To remove the ush door, reverse the above steps.
NOTE: The chain must rest on TOP of the gas inlet pipe never under it.
Diagram 4
Diagram 3
Diagram 5
Diagram 2
Use the hook to pull the spring out until you can put the hook into the slot on
the bottom door bracket. Repeat for 2nd spring. See diagram 4.
NOTE: See Vignette or Low Prole Faceplate instructions for removal
of screen prior to removing glass. .
