Regency Ultimate U1500E-LP - Framing Dimensions

14 | Regency Ultimate
™
U1500E Gas Fireplace
installation

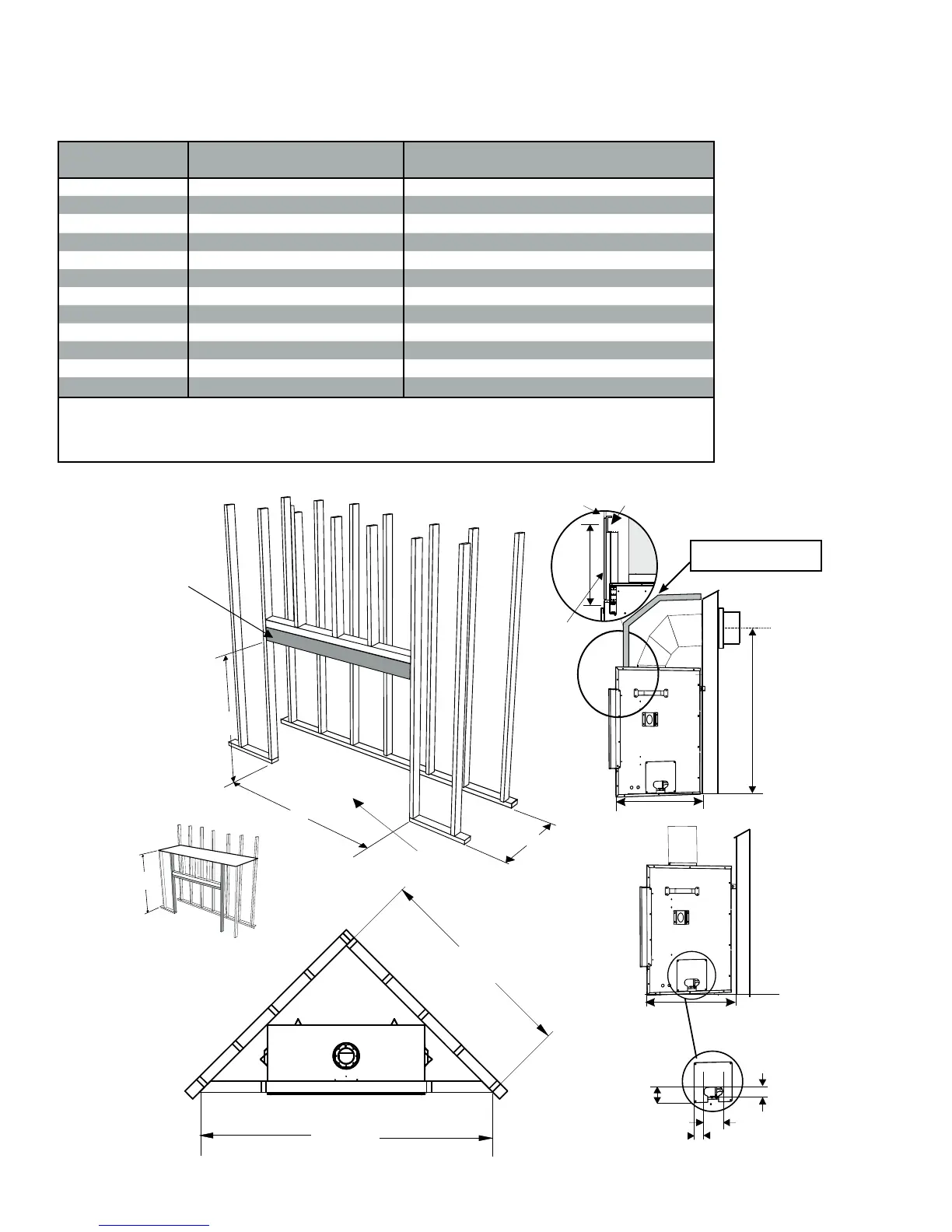

FRAMING DIMENSIONS
Framing
Dimensions
Description U1500E
A Framing Height 47" (1194mm)
B Framing Width 55" (1397mm)
C
*
Framing Depth 24-1/4" (615mm)
D Minimum Height to Combustibles 69-1/2" (1765mm)
E Corner Facing Wall Depth 65-3/4" (1670mm)
F Corner Facing Wall Width 93" (2362mm)
G Vent Centerline Height 41-3/8" (1051mm)
H Non-combustible facing height 23-7/8" (606mm)
I Gas Connection Opening Height 1-11/16" (43mm)
J Gas Connection Height 2-11/16" (67mm)
K Gas Connection Inset 1-1/8" (29mm)
L Gas Connection Opening Width 4-11/16" (119mm)
* Framing depth measurement is noted with the nailing strips set as far forward on the rebox as possible.
The nailing strips can be adjusted back up to 1-1/2" (38mm) to allow for varying thicknesses in non-combustible
material & wall nishes.
See non combustible section in this manual for details.
A
B
C
D
G
H
Non-Combustible
Facing
Header
F
E
I
J
K
L
Flex or Rigid Pipe
Finished Floor
Drywall or
other facing
C
C
Note: All other framing may
be of wood construction.
Non-combustible header
(steel stud on edge)
Pipe heatshield.
See manual for details.
