40 | Regency Ultimate
™
U1500E Gas Fireplace
installation
1. Remove faceplate, inner door frame, and glass door if already installed - see instructions in this manual.
2. Remove two (2) screws in locations shown below to remove front trim piece.
3. Loosen the 5 screws in locations shown below to remove top deflector.
4. Reverse steps to reinstall.
1. Remove front trim piece - see instructions above.
2. Remove two (2) screws in locations shown below to release panel clips.
3. Remove panels by sliding out.
4. Reverse steps to reinstall.
Panel Clip Screw Locations
Panel Clip
INNER PANEL REMOVAL / INSTALLATION
FRONT TRIM & DEFLECTOR REMOVAL / INSTALLATION

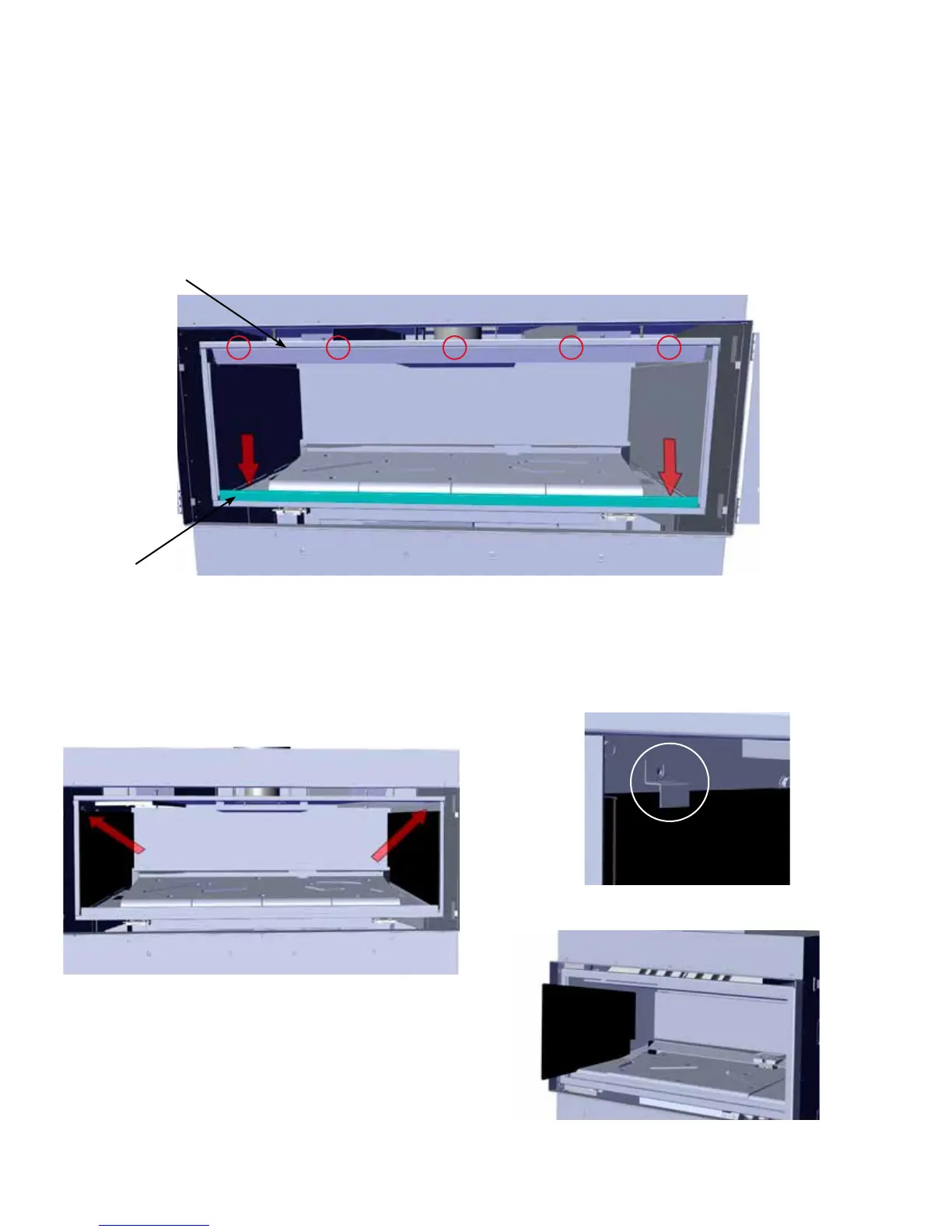

Diagram 1 - Front Trim Screw Locations
Front Trim Piece
Deector
