Regency Ultimate U1500E-LP - Horizontal Vent Deflector Installation

Regency Ultimate
™
U1500E Gas Fireplace | 15
installation
HORIZONTAL VENT DEFLECTOR INSTALLATION
Note: This installation is only required for horizontal terminations when
terminating at the minimum requirement of 41-3/8" to centerline. If
any rise is used when venting this unit - the deector and extender
are not required.

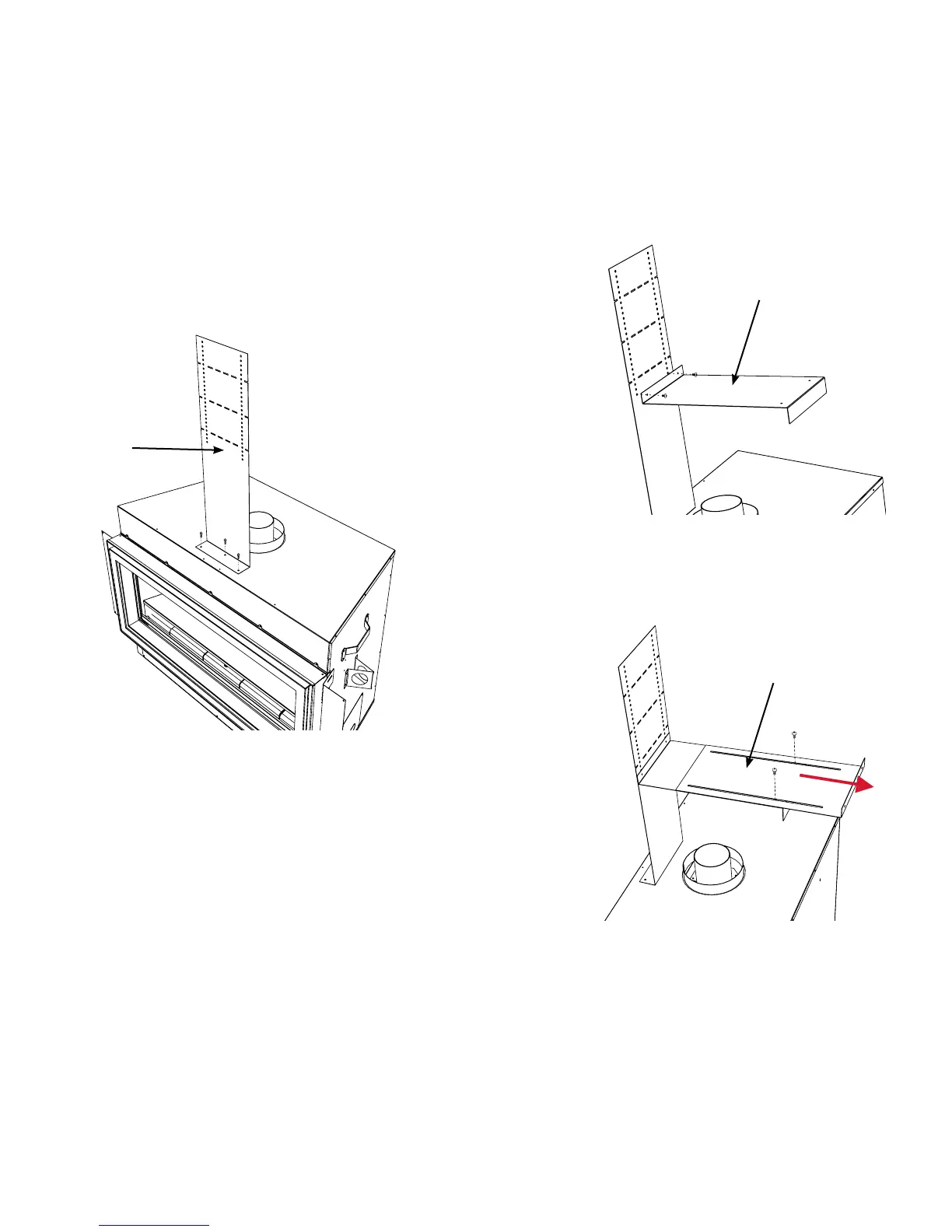

1. The deector and extender are shipped on top of the rebox.
2. Install the vertical section of the deector to the top of the rebox with 3
screws as shown below.
3. Install the horizontal section of the deector to the vertical section at the
desired height with 2 screws.
4. If the deector extender is required, install with 2 screws, extend to desired
length before tightening screws. Secure the end of the extender to framing/
wall.
5. If there is any excess material on the horizontal section of the deflector, it
can be folded down at the fold lines.
Deector vertical section
Deector horizontal section
Deector extender--secure to
framing/wall.
