Regency Ultimate
™
U1500E Gas Fireplace | 55
maintenance
VALVE TRAY REPLACEMENT
PRIOR TO VALVE TRAY REPLACEMENT, ENSURE UNIT
HAS COOLED TO ROOM TEMPERATURE, ALL POWER IS
DISCONNECTED AND GAS SUPPLY IT TURNED OFF.
6. Remove burner by removing 16 screws in locations shown below.
7. Lift out valve tray.
8. Replace valve tray and reverse steps.

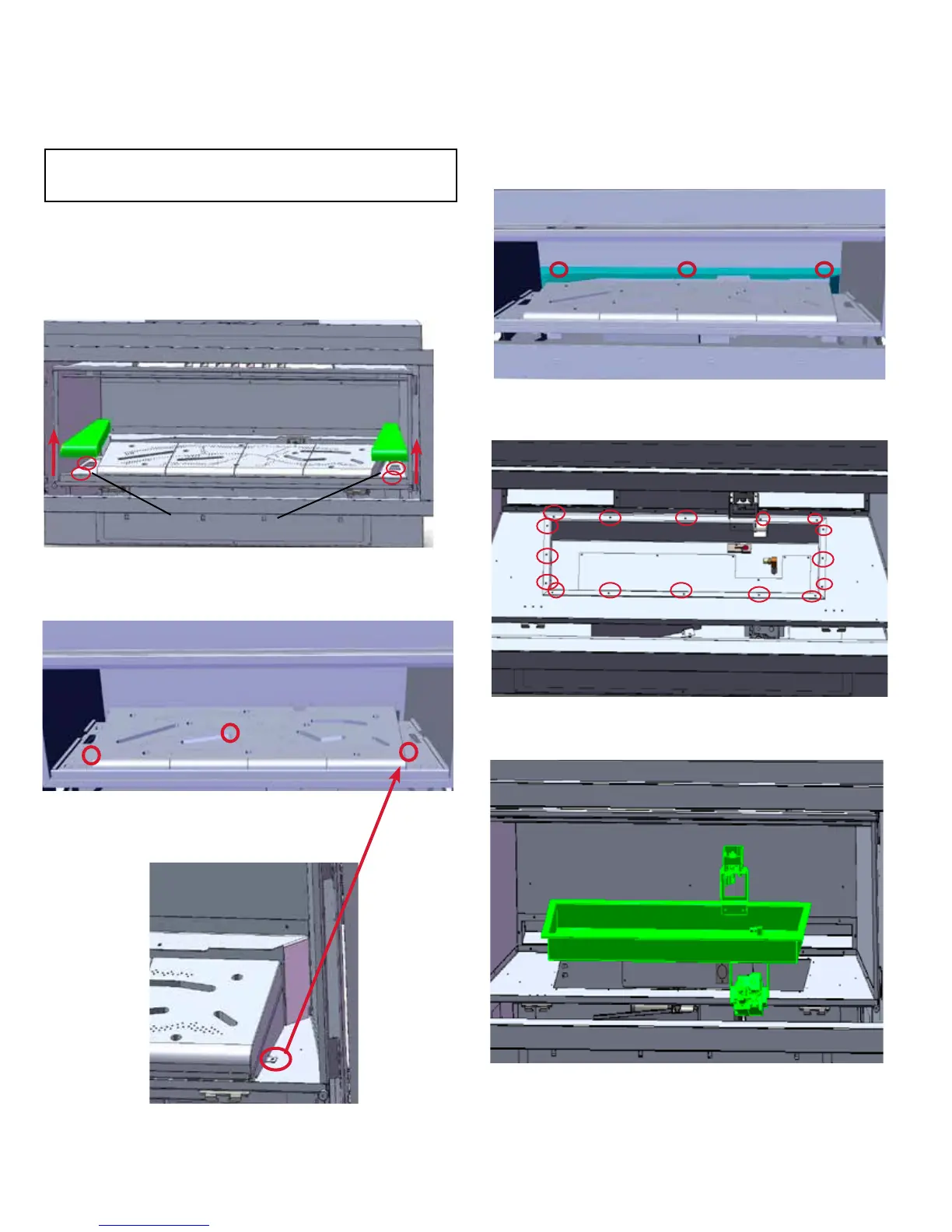

Diagram 4 - Valve Tray Screw Locations
Diagram 5 - Valve Tray Removal
1. Remove faceplate, inner frame, glass door, front trim piece and inner panels
- see instructions in this manual.
2. Remove logs.
3. Remove ceramic mounting bracket by removing 2 screws on each side
and remove burner side panels by lifting out as shown in Diagram 1.
4. Remove burner by removing 3 screws in locations shown below.
Diagram 3 - Log Tray screws
Diagram 2 - Burner Screw Locations
5. Remove rear log tray by removing 3 screws as shown in Diagram 3
below.
Diagram 1
Screw locations--ceramic mounting brackets
