Regency Ultimate U1500E-LP - Screen & Inner Door Frame Installation

Regency Ultimate
™
U1500E Gas Fireplace | 41
installation
SCREEN & INNER DOOR FRAME INSTALLATION
919-796
06.21.17
1

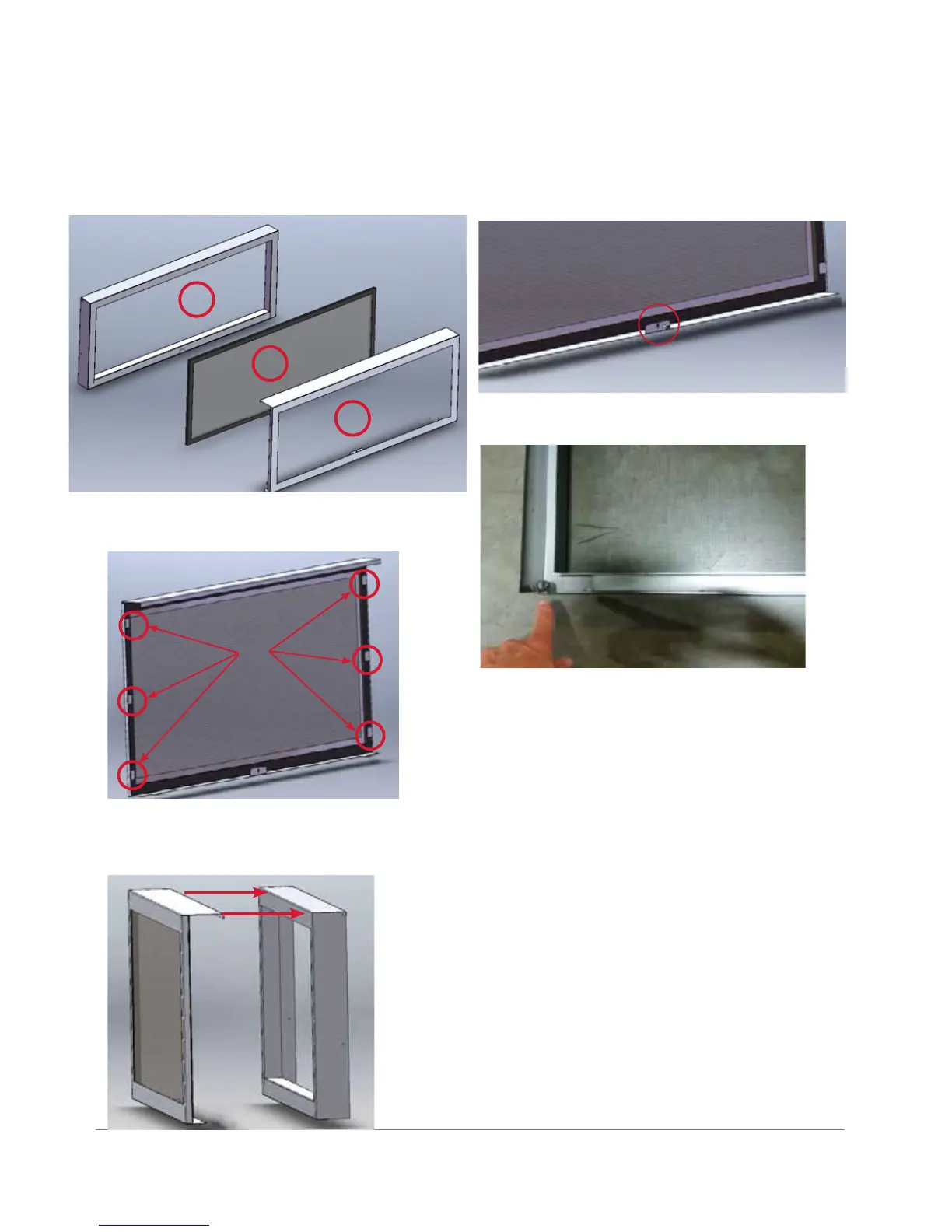

SAFETY SCREEN / INNER DOOR FRAME REMOVAL/INSTALLATION
THE INNER DOOR FRAME (3) MUST BE PURCHASED SEPARATELY IN EITHER STAINLESS STEEL OR BLACK
1. The inner door trim (1) and safety screen (2) come attached to the fireplace.
Remove the inner door trim and safety screen by pulling the bottom of the
trim towards you as one, then lift up.
2. Install screen into inner door frame - secure safety screen by bending in 6
tabs in locations shown below.
3. Hook the inner door frame (3) and safety screen assembly (2) over
the inner door trim.
1
4. Bend the center tab up and secure with a screw to attach the inner
door frame/safety screen assembly to the inner door trim
6. Attach completed assembly to the glass door on unit.
7. Secure the assembly with 1 screw on each side.
Note: Bottom of frame is secured to glass door frame with left and right
magnets.
2
3
Tabs
5. Bend in magnetic tabs—located in lower corners of the frame (lower
left shown below).
