Regency Ultimate U1500E-LP - Horizontal Terminations; Flex Vent 5 X 8

Regency Ultimate
™
U1500E Gas Fireplace | 23
installation

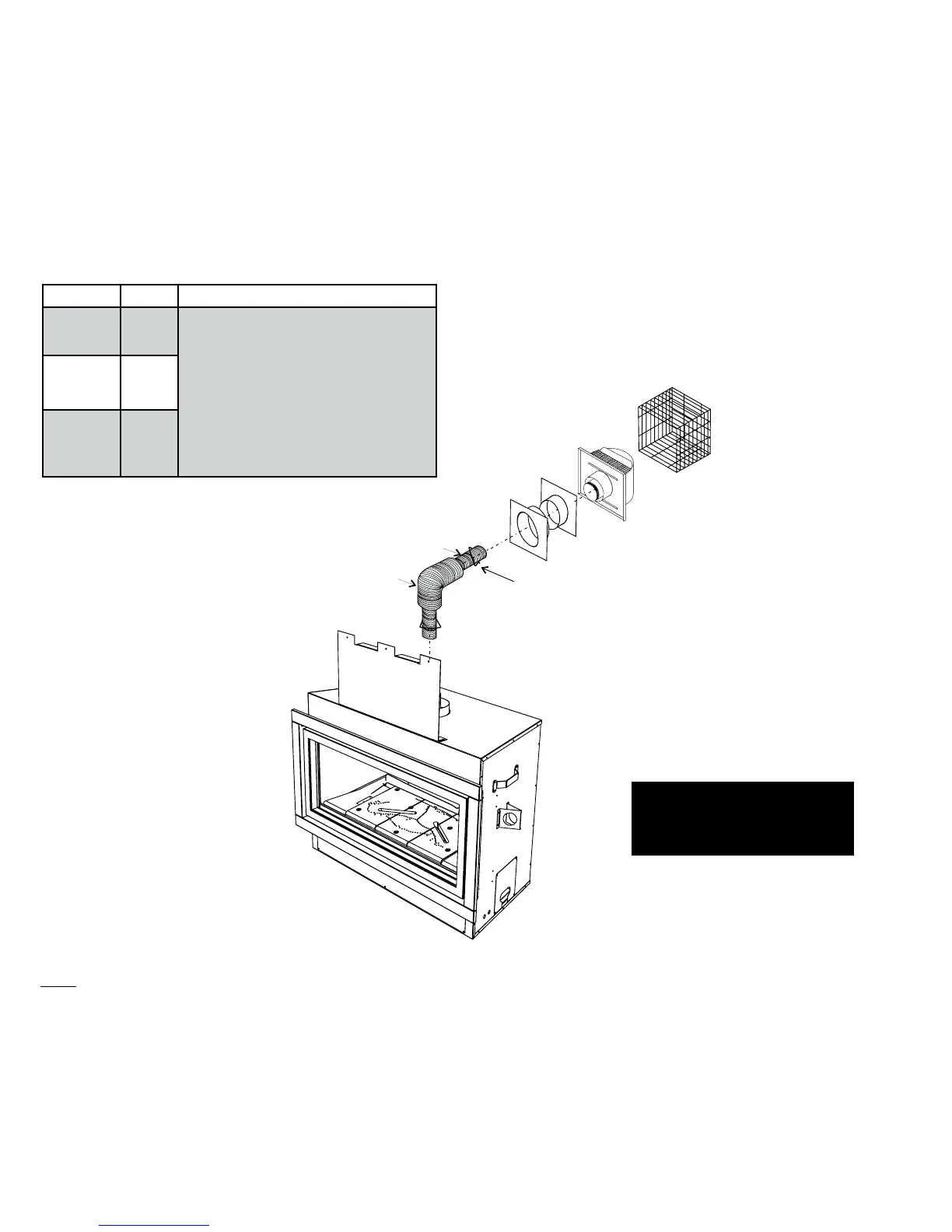

HORIZONTAL TERMINATIONS
FLEX VENT 5" X 8"
These venting systems, in combination with the U1500E Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by
Intertek. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination
Locations" section.
Regency
®
Direct Vent (Flex) System 4 foot Termination Kit (Part# 946-615), 6 foot Termination (Part# 946-618) or 10 foot Termination Kit
(Part# 946-616) includes all the parts needed to install the U1500E.
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex installations.
3) Regency
®
Direct Vent System (Flex) is only approved for horizontal terminations.
NOTE: If longer runs are required the FPI Direct Vent system (Flex) #946-616 includes
all parts needed to install the U1500E with a maximum 10' run.
FPI Kit # Length Contains:
#946-615 4 Feet
1) 8” exible liner (Kit length)
2) 5” exible liner (Kit length)
3) spring spacers
4) thimble
5) AstroCap XL termination cap
6) screws
7) tube of Mill Pac
8) plated screws
9) S.S. screws #8 x 1-1/2” drill point
10) vinyl siding stando󰀨
#946-618 6 Feet
#946-616 10 Feet
IMPORTANT
Must use Rear Venting Deector
packaged with unit in rear vent
horizontal termination applications.
203mm
dia.
Flue pipe
127mm
dia. flue pipe
spring spacer
Termination Cap
AstroCap XL
TM
(Part #946-623/P)
Flue Guard - if required *
(Part #946-506/P)
Wall Thimble
(Mandatory in all
Horizontal Terminations)
(Part 946-604/P)
