Regency Ultimate U1500E-LP - Fan Service

Regency Ultimate
™
U1500E Gas Fireplace | 53
maintenance
FAN SERVICE
PRIOR TO SERVICING THE FAN, ENSURE THAT UNIT
HAS COOLED TO ROOM TEMPERATURE, ALL POWER IS
DISCONNECTED AND GAS SUPPLY IS TURNED OFF.
1. Remove faceplate, inner frame, glass door, front trim piece and front deflec-
tor - see instructions in this manual.
2. Remove logs.
3. Remove burner side panels by lifting out as shown in Diagram 1.
Remove front lip by removing 2 screws located on firebox floor.
Remove enamel side panels by loosening the 2 screws (1 per side).
Remove 2 screws on each side to remove ceramic mounting brackets.
4. Remove burner by removing 3 screws in locations shown below.
7. Loosen three (3) screws to remove heat deflector shown in Diagram 5.
8. Remove two (2) screws to remove fan shown in Diagram 6.
9. Reverse steps to reinstall fan.
6. Remove access panel by removing eight (8) screws in locations shown
in Diagram 4.

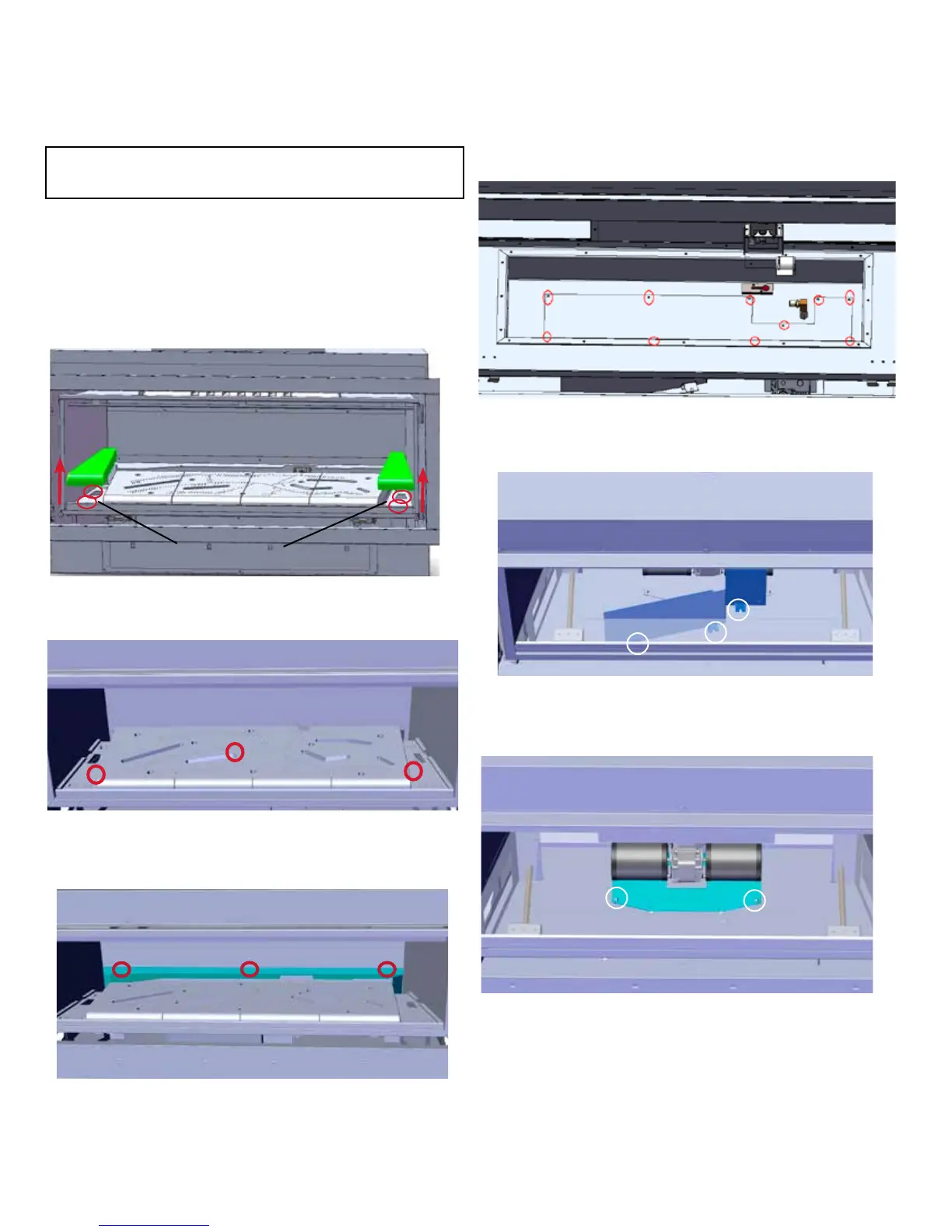

Diagram 3 - Log Tray screws
Diagram 5 - Heat Deector Screws
Diagram 4 - Heat Deector Screws
Diagram 6 - Fan Screws
Diagram 2 - Burner Screw Locations
5. Remove rear log tray by removing 3 screws as shown in Diagram 3 below.
Diagram 1
Screw locations--ceramic mounting brackets
