919-587a
05/29/17

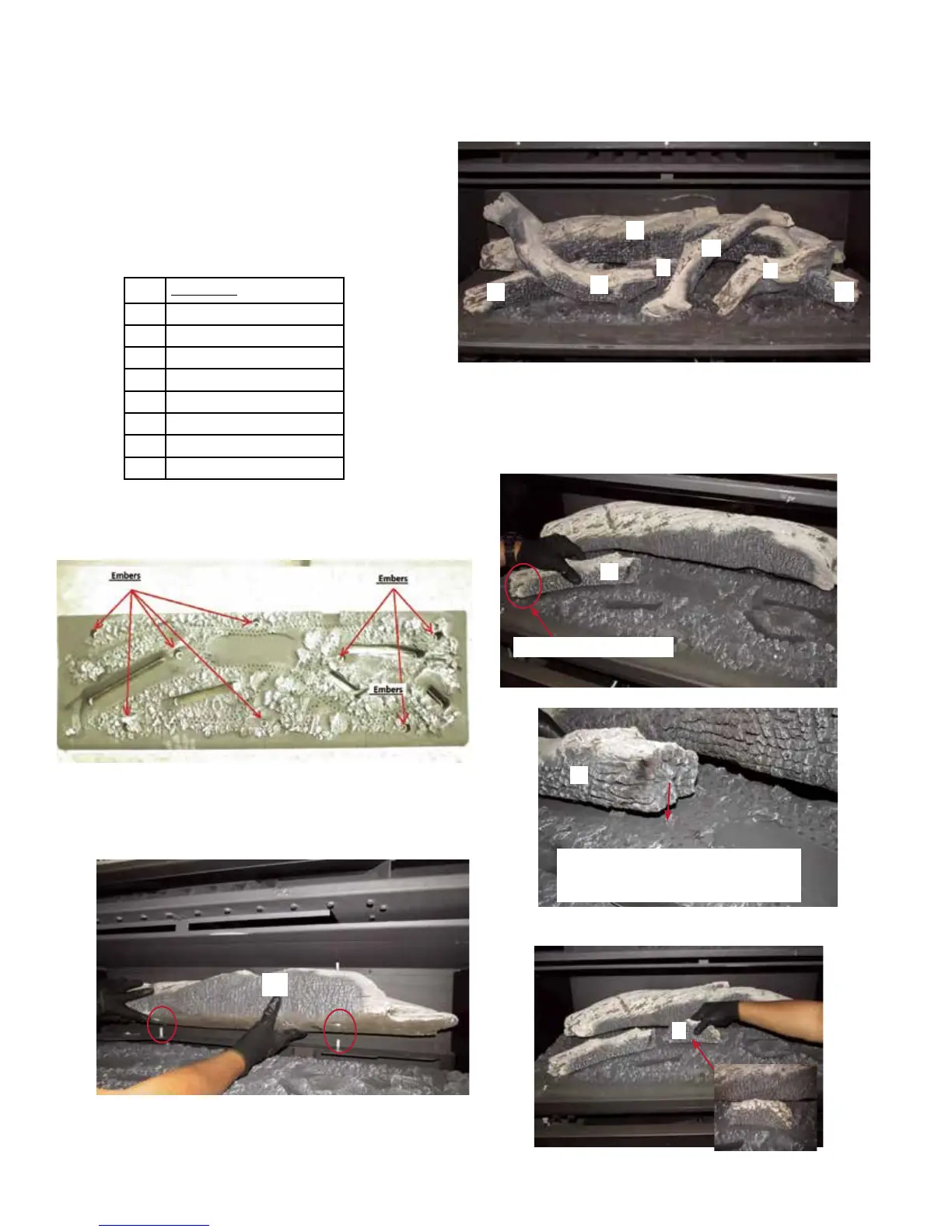

LOG SET INSTALLATION
Read the instructions below carefully and refer to the images. If
the logs are broken do not use the unit until they are replaced.
Broken logs can interfere with pilot operation.
Improper positioning of the logs may create carbon build-up
and can alter the unit's performance which is not covered under
warranty.
Log kit # 606-930 contains the following pieces:
2. Line up locators on Log 1 with corresponding locators on Log Tr ay as
shown in Diagram 3.
3. Line up locators on Log 2 with corresponding locators on Ceramic Log
Burner as shown in Diagram 4 and 5.
4. Line up locator on Log 3 with corresponding locator on Ceramic Log
Burner as shown in Diagram 6.
Description
1 Log 1-Rear Log
1 Log 2- Left log
1 Log 3- Center Log
1 Log 4- Right Log
1 Log 5- Front left Log Piece
1 Log 6- Front Center Log piece
1 Log 7- Front Right Log piece
1 Bag Embers
Diagram 3
1
Diagram 5
Log 2 should perfectly fi t into this space
2
Diagram 4
Position of Log 2
2
3
1
3
4
5
6
7
Diagram 1
Complete Log Install and Log Identifi cation
2
Diagram 6
1. Install the supplied embers on exposed screw holes located on top of the
ceramic burner as shown in Diagram 2.
Diagram 2
1
GF1500
