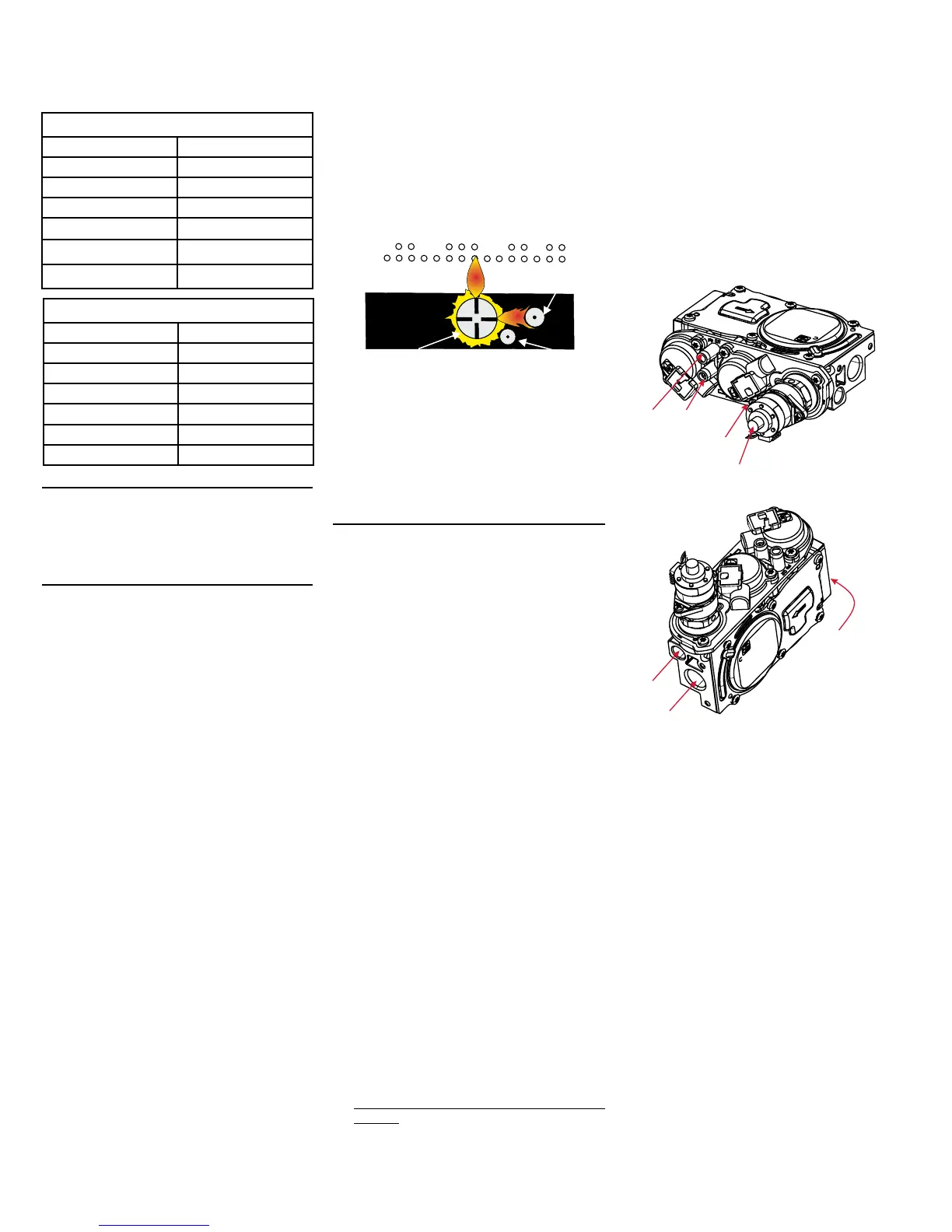

Regency Ultimate
™
U1500E Gas Fireplace | 33
installation
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-o valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig. (3.45 kPa). Disconnect
piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.
Note: To properly check gas pressure, both
inlet and manifold pressures should be
checked using the valve pressure ports
on the valve.
1. Make sure the unit is in the "OFF" position.
2. Loosen the "IN" and/or "OUT" pressure tap(s),
turning counterclockwise with a
1/8" wide flat screwdriver.
3. Attach manometer to "IN" and/or "OUT" pressure
tap(s) using a 5/16" ID hose.
4. Turn the unit on with the remote or wall switch
5. The pressure check should be carried out with
the unit burning and the setting should be within
the limits specified on the safety label.
6. When finished reading manometer, turn off
the unit, disconnect the hose and tighten the
screw (clockwise) with a 1/8" flat screwdriver.
Note: Screw should be snug, but do not over
tighten.
HIGH ELEVATION
This unit is approved for altitude 0 to 4500 ft.
(CAN1 2.17-M91.
GAS LINE
INSTALLATION
Since some municipalities have additional local
codes it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.
For USA installations follow local codes and/or the
current National Fuel Gas Code, ANSI Z223.1.
When using copper or ex connectors use only
approved ttings. Always provide a union so that
gas lines can be easily disconnected for servicing.
Flare nuts for copper lines and ex connectors are
usually considered to meet this requirement.
NOTE: A shuto / dante valve should be sup-
plied in or near the unit (or as per local codes)
for ease of servicing this appliance.
IMPORTANT: Always check for gas leaks with
a soap and water solution or gas leak detector.
Do not use open ame for leak testing.
U1500E-NG SYSTEM DATA
Min. Supply Pressure 5" WC (1.25 kpa)
Max. Supply Pressure 1/2" Psi (3.45 kpa)
Manifold Pressure - High 3.5" WC (0.87 kpa)
Manifold Pressure - Low 1.6" WC (0.40 kPa)
Orice Size #30 DMS
Maximum Input 43,000 Btu/h (12.6 kW)
Minimum Input 29,000 Btu/h(8.49 KW)
U1500E-LP SYSTEM DATA
Min. Supply Pressure 11" WC (2.73 kpa)
Max. Supply Pressure 1/2" Psi (3.45 kpa)
Manifold Pressure-High 10" WC (2.49 kpa)
Manifold Pressure-Low 6.4" WC (1.60 kpa)
Orice Size #48 DMS
Maximum Input 42,000 Btu/h (12.3 kW)
Minimum Input 33,500 Btu/h (9.82 KW)
Note: If you have an incorrect ame pattern,
contact your Regency
®
dealer for further
instructions.
Incorrect ame pattern will have small, probably
yellow ames, not coming into proper contact
with the rear burner or ame sensor.
Burner
Flame Sensor
Pilot
Ignitor
PILOT ADJUSTMENT
Periodically check the pilot ames. Correct ame
pattern has two strong blue ames: 1 owing
around the ame sensor and 1 owing across
the burner (it does not have to be touching the
burner).
885 S.I.T. VALVE
DESCRIPTION
1) 6 Stage flame adjustment
2) Pilot adjustment
3) Outlet Pressure Tap
4) Inlet Pressure Tap
5) Pilot Outlet
6) Main Gas Outlet
7) Main Gas Inlet
