Regency Ultimate U1500E-LP - Rigid Pipe Venting Systems; Basic Horizontal & Vertical Terminations

26 | Regency Ultimate
™
U1500E Gas Fireplace
installation

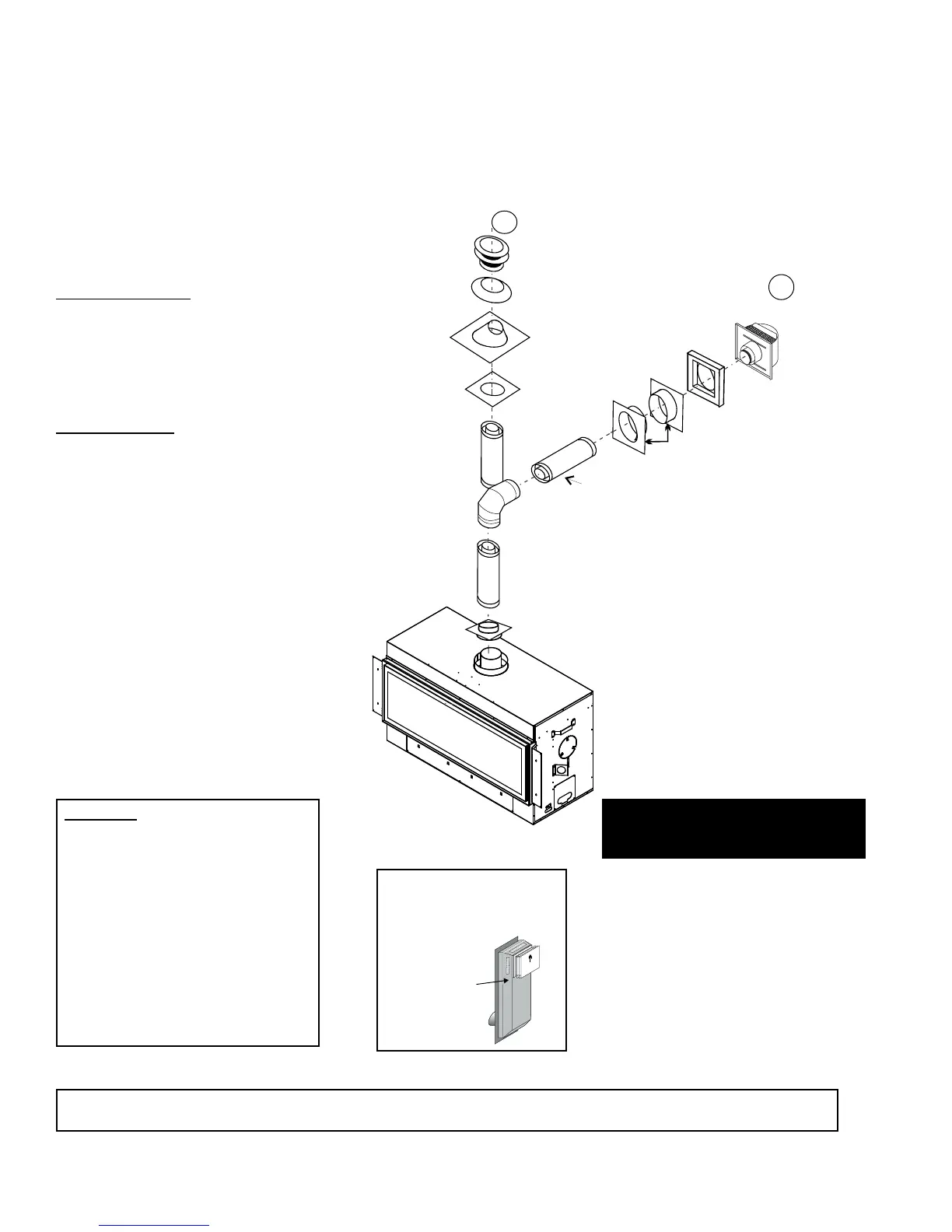

Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
Rigid Pipe Adaptor
Pipe
Length
Pipe Length
90 Elbow
o
Astrocap
(946-523/P)
Wall Thimble
Vinyl Siding
Standoff (Optional)
RIGID PIPE VENTING SYSTEMS
BASIC HORIZONTAL & VERTICAL TERMINATIONS
Rigid Pipe Vent Systems o󰀨er a complete line of
component parts for installation of both horizontal
and vertical installations. Many items are o󰀨ered
in decorative black, as well as galvanized nish.
The minimum components required for a basic
Horizontal Termination are:
1 AstroCap XL Termination Cap
1 90
o
Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of rigid pipe to suit wall thickness
The minimum components required for a basic
Vertical Termination are:
1 Vertical Termination Cap
1 Rigid Pipe Adaptor
1 Lengths of pipe to adequately
penetrate roof
1 Ceiling Firestop
1 Flashing
1 Storm Collar
Wall thickness is measured from the back
stando󰀨s to the inside mounting surface of
termination cap. For siding other than vinyl, furring
strips may be used, instead of a vinyl siding
stando󰀨, to create a level surface to mount the
vent terminal. The Terminal must not be recessed
into siding. Measure the wall thickness including
furring strips.
If a Vinyl Siding Stando󰀨 is required (it must be
used with vinyl siding), measure to outside surface
of wall without siding and add 2 inches.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
Alternate Snorkel
Termination Cap
HOT
Alternate
Horizontal Termination
Caps
A
B
This product has been evaluated by Intertek
when using a rigid pipe adaptor and use of
any of the specic chimney systems listed in
this manual. Use of these systems with the
rigid pipe adaptor is deemed acceptable and
does not a󰀨ect the Intertek WHI listing of these
components.
WARNING:
Do not combine venting components from
di󰀨erent venting systems.
Exception: However, use of the the AstroCap
XL
TM
is acceptable with all systems.
The Regency AstroCap
TM
and Regency Riser Vent terminal are certied for installations using Regency venting systems as well as any specic
chimney systems listed in this manual. AstroCap
TM
is a proprietary trademark of Regency Fireplace Products.
