Regency Ultimate U1500E-LP - Page 25

Regency Ultimate
™
U1500E Gas Fireplace | 25
installation
Description
Simpson
Direct Vent Pro
®
Selkirk
Direct Temp™
Metal-Fab™
Sure Seal
ICC Excel
Direct
Olympia
Ventis DV*
Attic Insulation Shield 12” 58DVA-IS N/A from FPI N/A N/A N/A VDV-AIS05
High Wind Vertical Cap 58DVA-VCH N/A N/A TM-5VT VDV-VCH05
High Wind Horizontal Cap N/A N/A N/A TM-5DHT N/A
Horizontal Square Termination Cap N/A 5DT-HHC 5DHT TM-5HT VDV-HC05
Vertical Termination Cap N/A 5DT-HVC 5DVT N/A N/A
Storm Collar 58DVA-SC 5DT-SC 5DSC TM-SC VDV-SC05
Restrictor Disk 58DVA-RD N/A N/A TM-5DS N/A
Colinear Flex Connectors N/A N/A N/A N/A N/A
Adjustable Flashing 0/12-6/12 58DVA-F6 5DT-AF6 5DF TF-5FAVDV-F0506
Adjustable Flashing 6/12-12/12 58DVA-F12 5DT-AF12 5DF1-2 TF-5FB VDV-F0512
Vinyl Siding Standoff 58DVA-VSS 5DT-VS 5DVS TM-VSS VDV-SSO
Vinyl Siding Shield Plate N/A 5DT-VSP N/A N/A N/A
Snorkel Termination 14” 58DVA-SNK14 N/A N/A TM-5ST14 N/A
Snorkel Termination 36” 58DVA-SNK36 (N/A - FPI) N/A N/A TM-5ST36 N/A
Basic Horizontal Te rmination Kit (A) N/A 5DT-HKA N/A TM-5HTK VDV-KW05
Horizontal Termination Kit (B) 58DVA-KHA 5DT-HKB N/A TM-5HTK VDV-K05
Vertical Termination Kit 58DVA-VHA 5DT-VKC N/A N/A N/A
FPI
946-604/P Simpson Direct Vent or Astro Cap -Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap
770-994 Rigid Pipe Adaptor (Must use with all rigid piping) **946-506/P Vent Guard (Optional)
**946-606 Starter collar reducer 5” x 8” to 4” x 6-5/8” (B36XTE, B36XTCE ONLY) 946-625 Vinyl Siding Standoff - AstroCap XL
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (5DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (770-994).
** Not available/applicable for the following units: B41XTE, B41XTCE, CV72E, HZ54E, U1500E

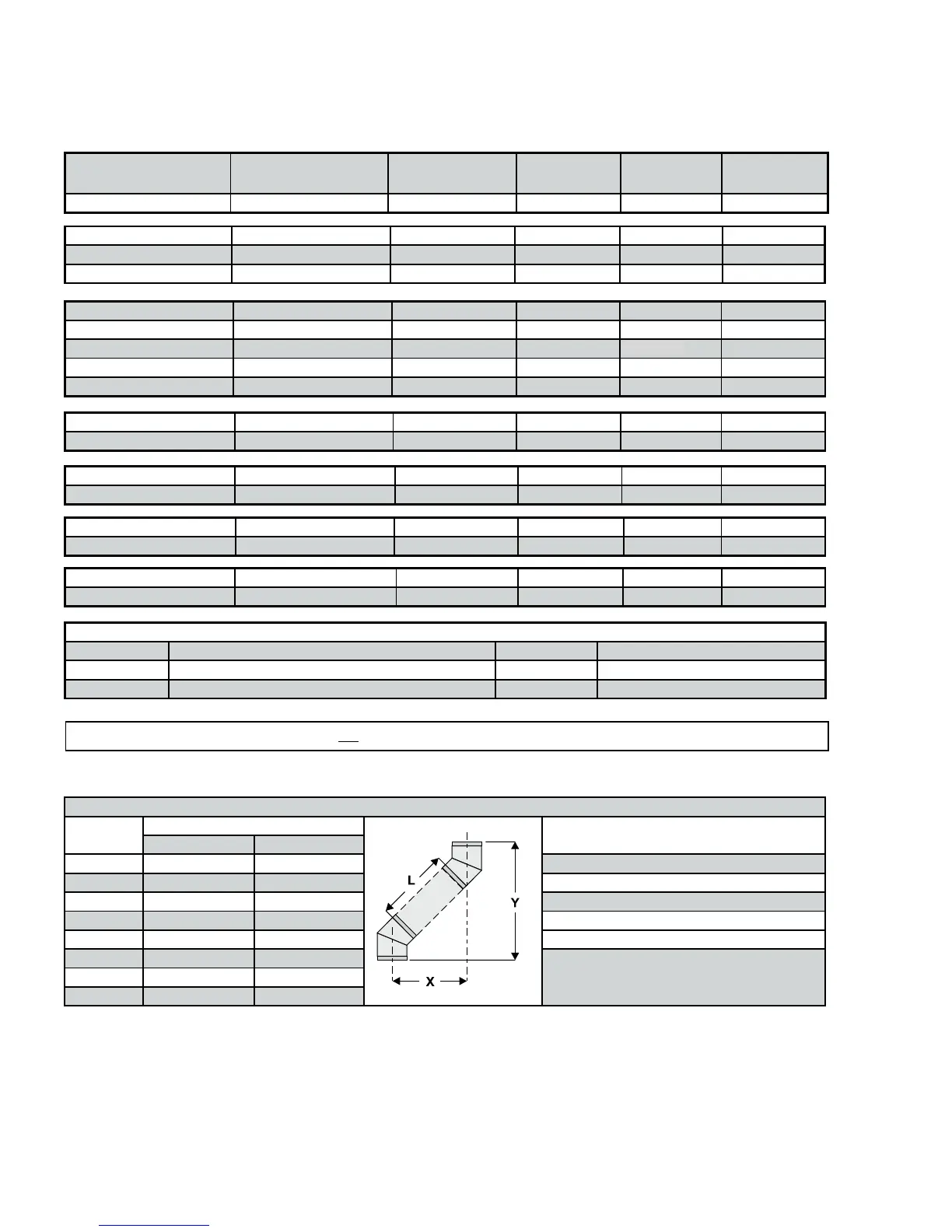

Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
5” x 8” Venting For specifi c instructions on venting components - visit the
manufacturers website listed below.
Run (X) Rise (Y)
0” (0mm) 5-11/16” (144mm) 15-5/16” (389mm) Simpson Direct Vent Pro: www.duravent.com
6” (152mm) 8-13/16” (224mm) 18-7/16” (468mm) Selkirk Direct-Temp: www.selkirkcorp.com
9” (229mm) 10-15/16” (278mm) 20-9/16” (522mm) Metal-Fab Sure Seal: www.mtlfab.com
12” (305mm) 13” (330mm) 22-11/16” (576mm) Industrial Chimney Company: www.icc-rsf.com
Olympia Ventic DV: www.olympiachimney.com
24” (610mm) 21-7/16” (697mm) 31-1/16” (789mm) Note: Horizontal runs of vent must be level, or have a 1/4”
rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high
temperatures and may present a possible fi re hazard.
36” (914mm) 29-13/16” (757mm) 39-7/16” (1002mm)
48” (1219mm) 38-1/4” (972mm) 47-7/8” (1216mm)
* Olympia Ventis DV applicable for the following units only: B36XTE, B36XTCE, B41XTE, B41XTCE, City Series, P36, P36E, U1500E
N/A
