Regency Ultimate U1500E-LP - Page 39

Regency Ultimate
™
U1500E Gas Fireplace | 39
installation
919-587a 05/29/17

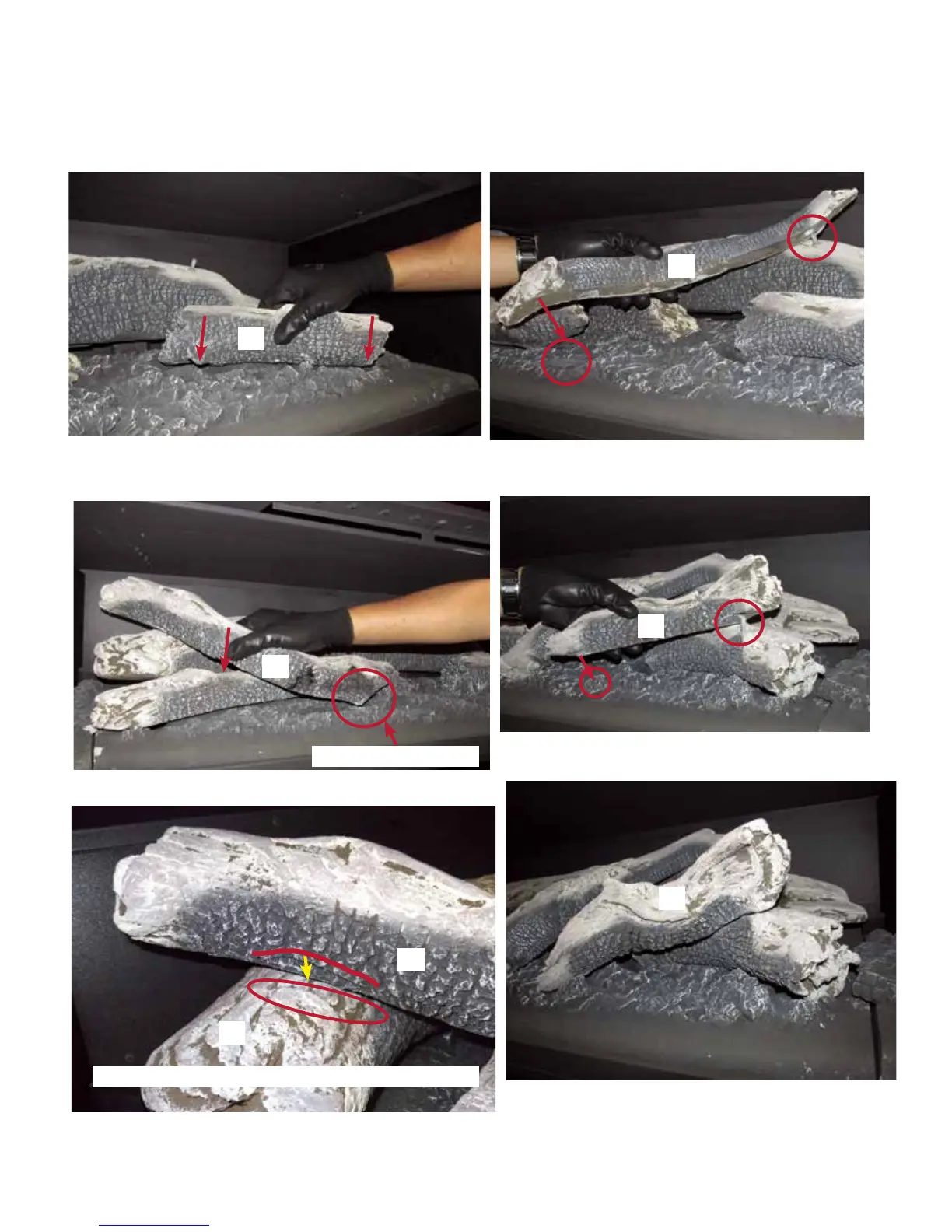

5. Line up locator on Log 4 with corresponding locator on Ceramic Log
Burner as shown in Diagram 7.
6. Rest Log 5 on Log 2 and Log 1 and also on the Ceramic log Burner as
shown in Diagram 8 and Diagram 9.
6. Rest Log 6 on Log 1 and also on the Ceramic log Burner as shown in
Diagram 10.
7. Rest Log 7 on Log 4 and also on the ceramic Log Burner as sho
wn in
Diagram 11.
8. Log 7 in fi nal position shown in Diagram 12.
Diagram 8
Diagram 9
Diagram 10
Diagram 11
Diagram 12
Diagram 7
4
5
7
7
Position of Log 5
6
The Arch on Log 5 should rest on the Arch on Log 1.
5
1
2
GF1500
