MCK-RA6T2 User's Manual
R12UZ0091EJ0100
Rev 1.00
Page
12
of
38
August 3, 2021

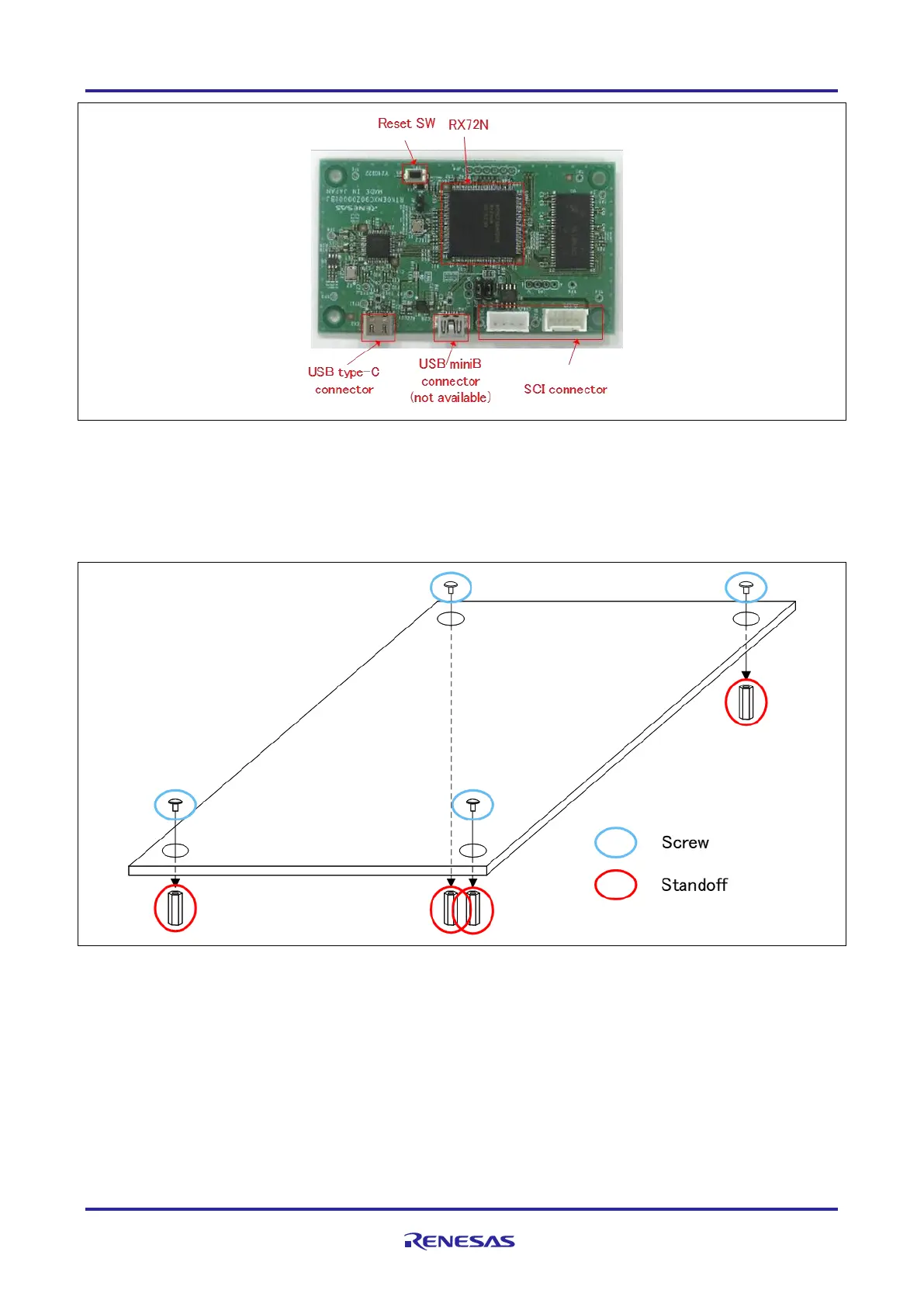

Figure 4-4 Commun
ication b
oard
4.4
Standoffs and Screw
s
Before using this pro
duct, a
ssemble the inc
luded stand
offs and screws as
shown below.
Figure 4-5 Standof
fs and Screws
assembly
14
16
Table of Contents
