Renesas RA6 Series User Manual

Renesas RA Family MCK-RA6T2 User's Manual
R12UZ0091EJ0100 Rev 1.00 Page 6 of 38
August 3, 2021
4. Hardware Configuration and Default Setting
4.1 Hardware configuration
MCK-RA6T2 consists of the inverter board, the CPU board and the communication board. Specifications as
a kit and for the relevant boards are listed below.

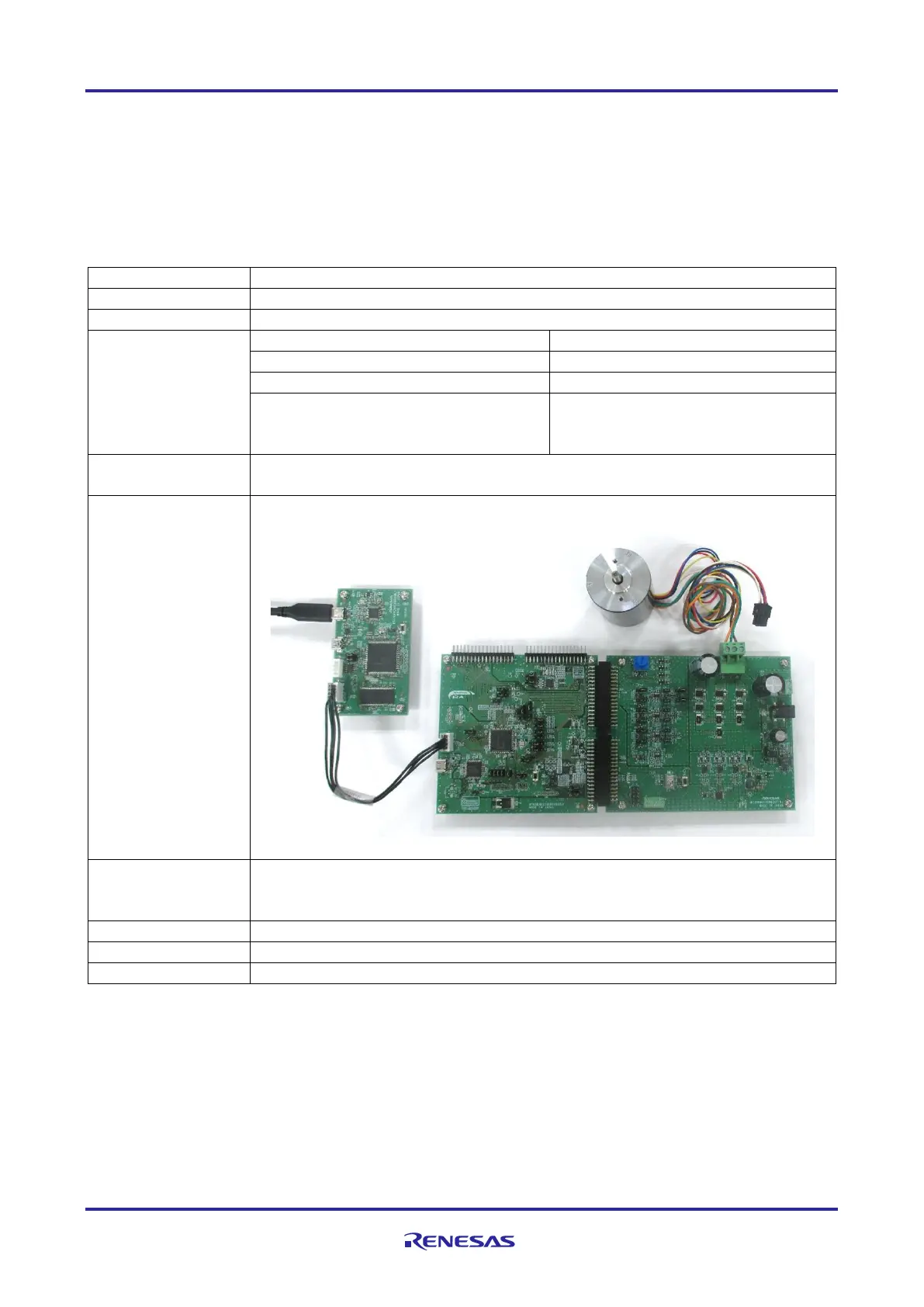

Table 4-1 MCK-RA6T2 specification (1/4)
Item
Specification
Kit product name
MCK-RA6T2
Kit product No.
RTK0EMA270S00020BJ
Kit configuration
Inverter Board
RTK0EM0000B12020BJ
CPU Board
RTK0EMA270C00000BJ
Communication Board
RTK0EMXC90Z00000BJ
Brushless DC Motor
R42BLD30L3 (MOONS’)
Rated voltage：36[V]
Rated current：1.67[A]
Isolation
Inverter board - CPU board : Non-isolated
Communication board - CPU board : Isolated
External view
Note: The actual product may differ from this photo.
Board size
Inverter board : 133 mm (W) x 109 mm (L)
CPU board : 109 mm (W) x 109 mm (L)
Communication board : 89 mm (W) x 52 mm (L)
Operating temperature
Room temperature
Operating humidity
No condensation allowed
EMC Directive
Europe：EN61326-1 : 2013 Class A
