Renesas RA6 Series User Manual

Renesas RA Family MCK-RA6T2 User's Manual
R12UZ0091EJ0100 Rev 1.00 Page 13 of 38
August 3, 2021
4.5 Jumper pin setting
4.5.1 Inverter Board
Default settings and functions of the jumper pins (JP1~JP15) are as follows.
Table 4-5 Jumper pin setting of inverter board
Jumper pin
Default setting
Function
JP1
2-3pin short
1-2pin short : Disable 5V regulator
2-3pin short : Enable 5V regulator
JP2, JP3, JP4,
JP6, JP12, JP13
2-3pin short
1-2pin short : Disable current detection amplifiers
2-3pin short : Enable current detection amplifiers
JP5, JP7, JP9,
JP10, JP14, JP15
1-2pin short
1-2pin short : Current detection amplifier gain = 20
1-2pin open : Current detection amplifier gain = 10
JP8, JP11
1-2pin short
1-2pin short : 2-/3-shunt current detection
2-3pin short : 1-shunt current detection

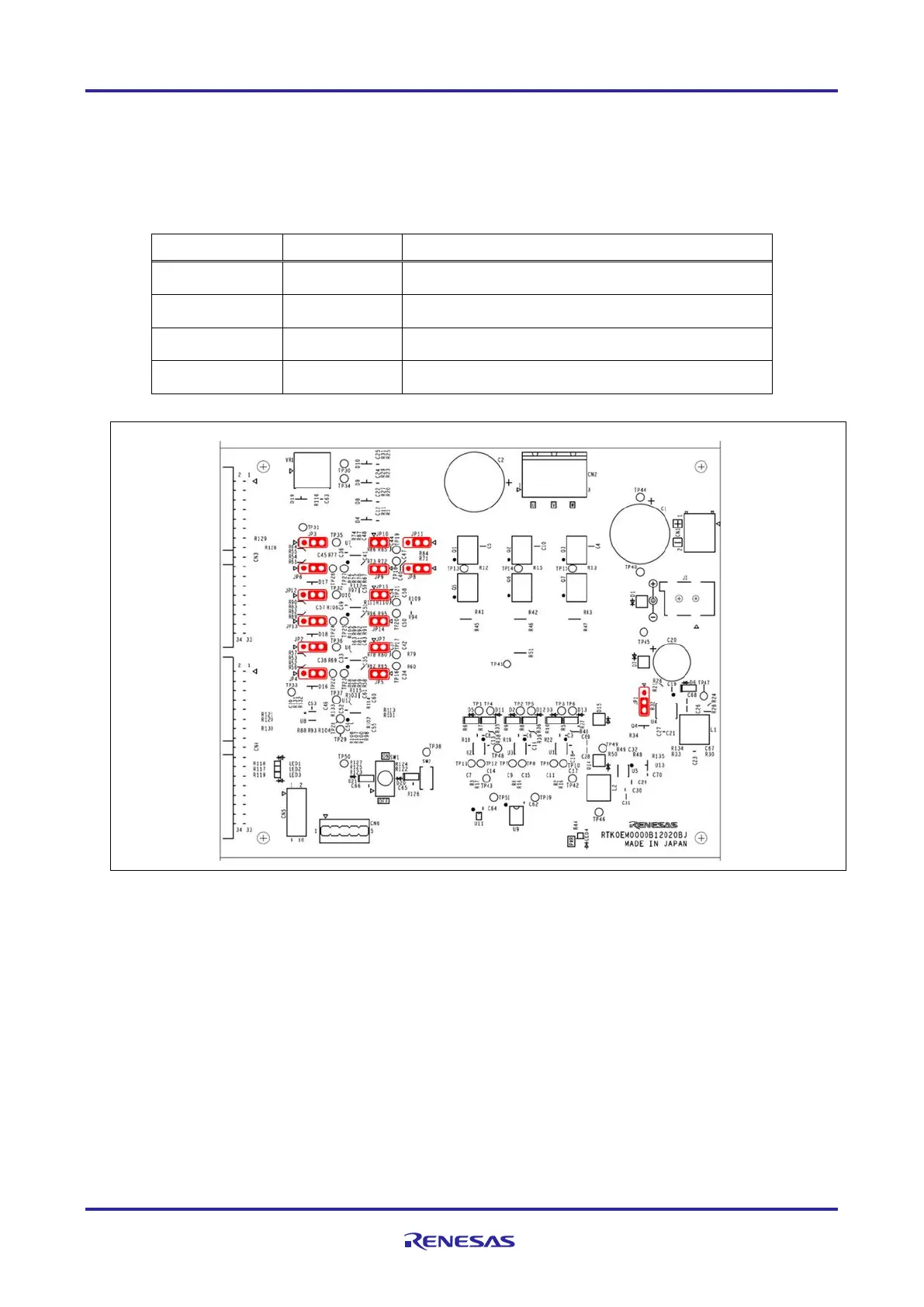

Figure 4-6 Default jumper pin setting
