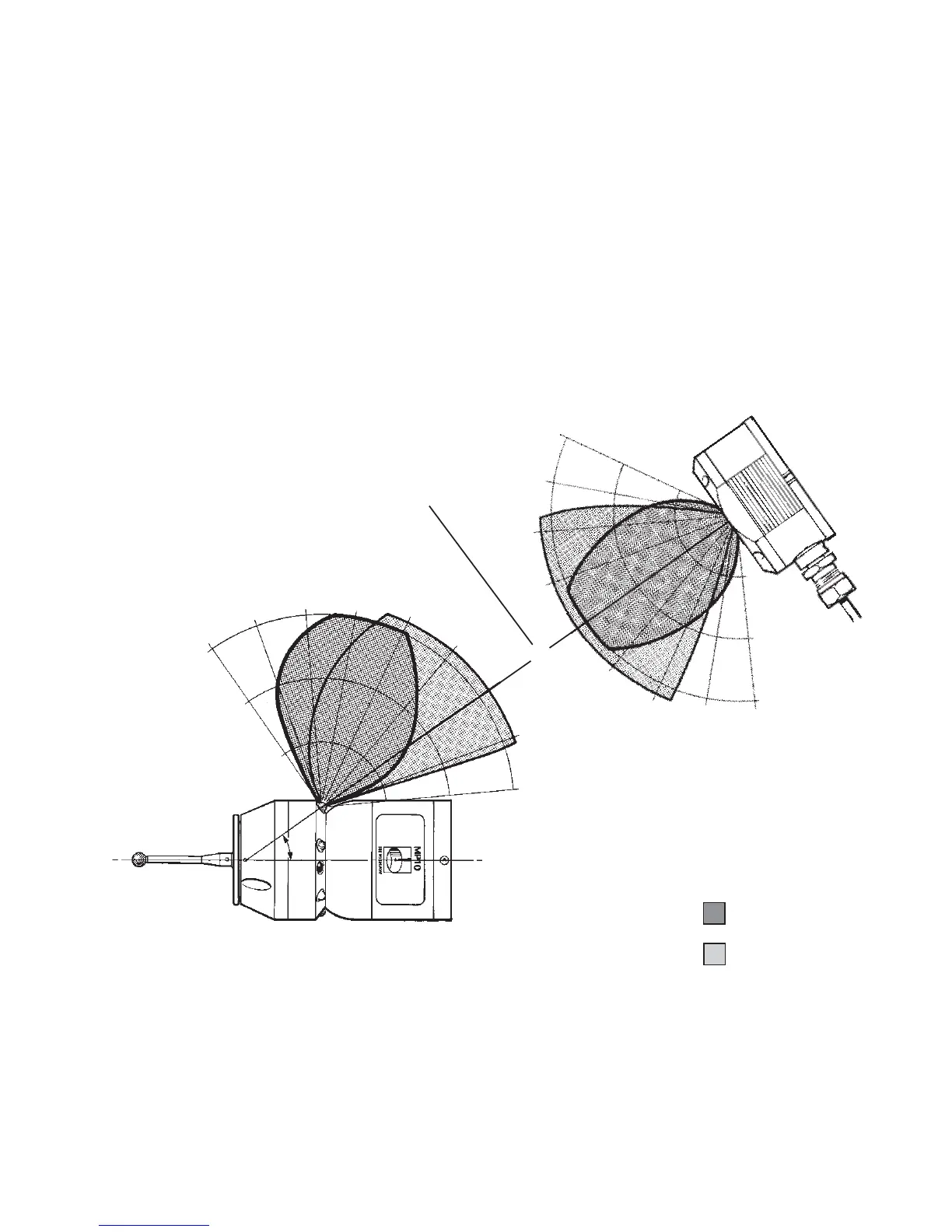

PERFORMANCE ENVELOPE
MP10 35° OUTPUT PROBE + OMI
Probe and OMI diodes must be
mutually in each others field of view,
and within the performance envelope
shown.
SWITCH-ON/OFF RANGE
and OPERATING RANGE
The OMP must be within
3 m (9.8 ft) of the OMI.
Optical
centre
line
35° OMP
2 (6.5)
1 (3.3)
3 (9.8)
90°
15°
60°
15°
75°
30°
30°
SWITCH ON/OFF
OPERATING
Range metres (feet)
0°
45°
