Renishaw NC4 Installation Guide

1-6
NC4 non-contact tool setting system: Before you begin
激光辐射
请勿直视激光光束

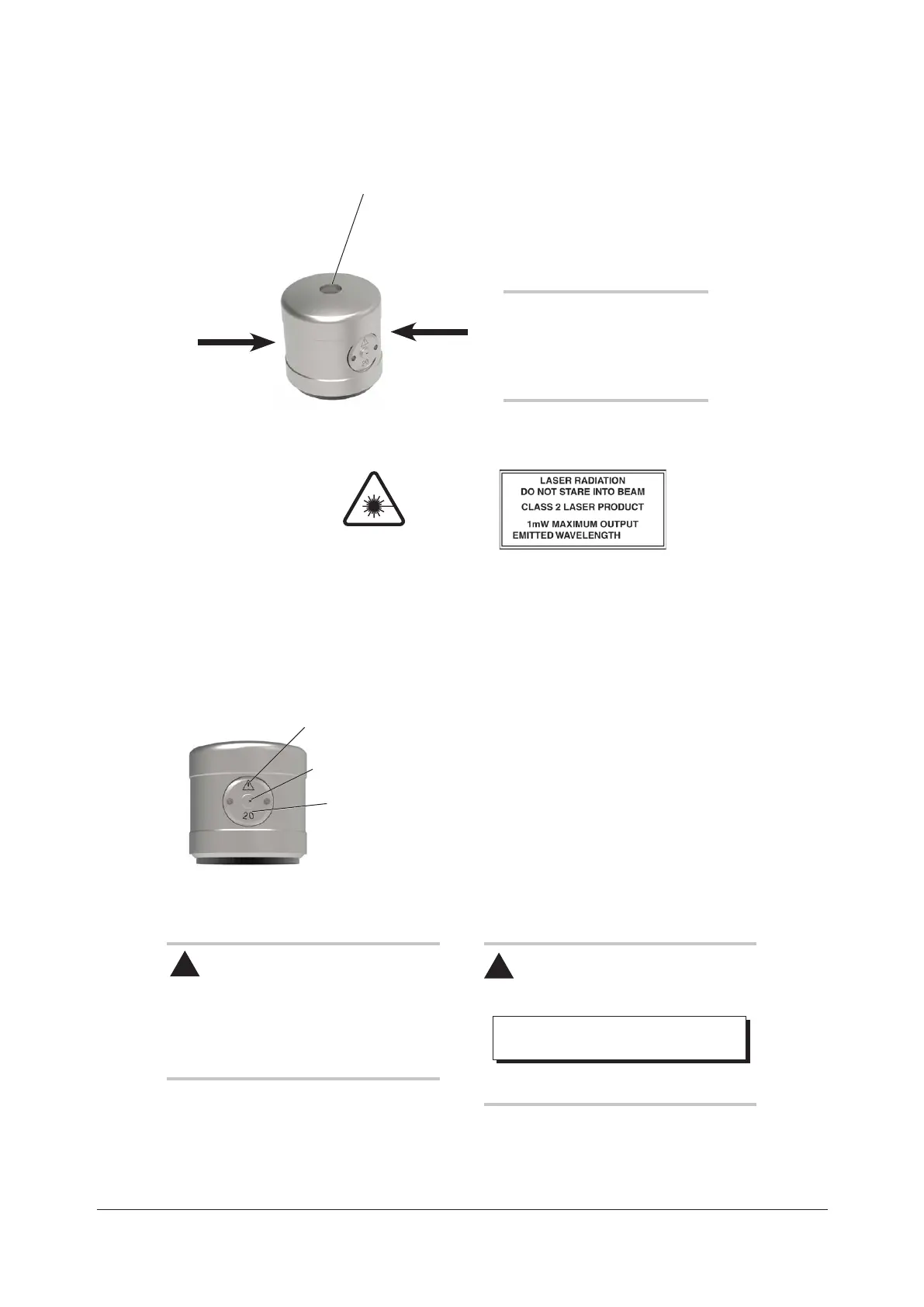

Laser safety and warning labels
Label B
Label A
Laser ‘On’ and status LED (for more information, see
page 4-12, “Status LED function”).
NOTE: Labels A and B are tted to
the transmitter head only.
An adhesive warning label is
provided for attachment outside the
machine.
Label A Label B
Location of the laser aperture
Access panel identication markings, denoting system range (for
more information, see the NC4 non-contact tool setting system
accessories data sheet (Renishaw part no. H-2000-2223)).
Laser aperture / MicroHole™
Caution symbol (see “CAUTION symbol” below,
for further information)
CAUTION – LASER SAFETY
The access panel is to be removed for service
purposes only using the special tool supplied.
Before removing the panel, switch off electrical
power to the transmitter head to avoid exposure
to the laser beam.
CAUTION SYMBOL
The caution symbol on the access panel denotes
the following:
CAUTION – Class 3R Laser radiation when
open. Avoid direct eye exposure.
This text is not included on the access panel due
to the limited space available.
!
!
Complies with 21 CFR 1040.10 and 1040.11
except for conformance with IEC 60825-1
Ed. 3., as described in Laser Notice No. 56,
dated May 8, 2019.
670nm

Renishaw NC4 Specifications

General

Brand	Renishaw
Model	NC4
Category	Tools
Language	English
