4-9
www.renishaw.com/nc4
NC4 set-up tool
Introduction
The NC4 set-up tool (Renishaw part no. A-4114-8000, sold separately) is a battery-operated device that is
used to provide a visual indication of the signal strength at the NC4 receiver head. The signal strength is
shown on a numerical display. The higher the number, the greater the signal received at the receiver head.
The set-up tool is placed over the receiver head and is rotated so that the display can be easily viewed.
Placing the tool over an NC4 unit activates the numerical display. Removing the tool causes the display to
power off (for more information, see page 4-10, “Using the set-up tool”).
NOTE: The numerical display provides only an indication of the signal strength. If a true reading of signal
strength is required, a voltmeter must be connected to the appropriate connector pins on the NCi-6
interface unit.

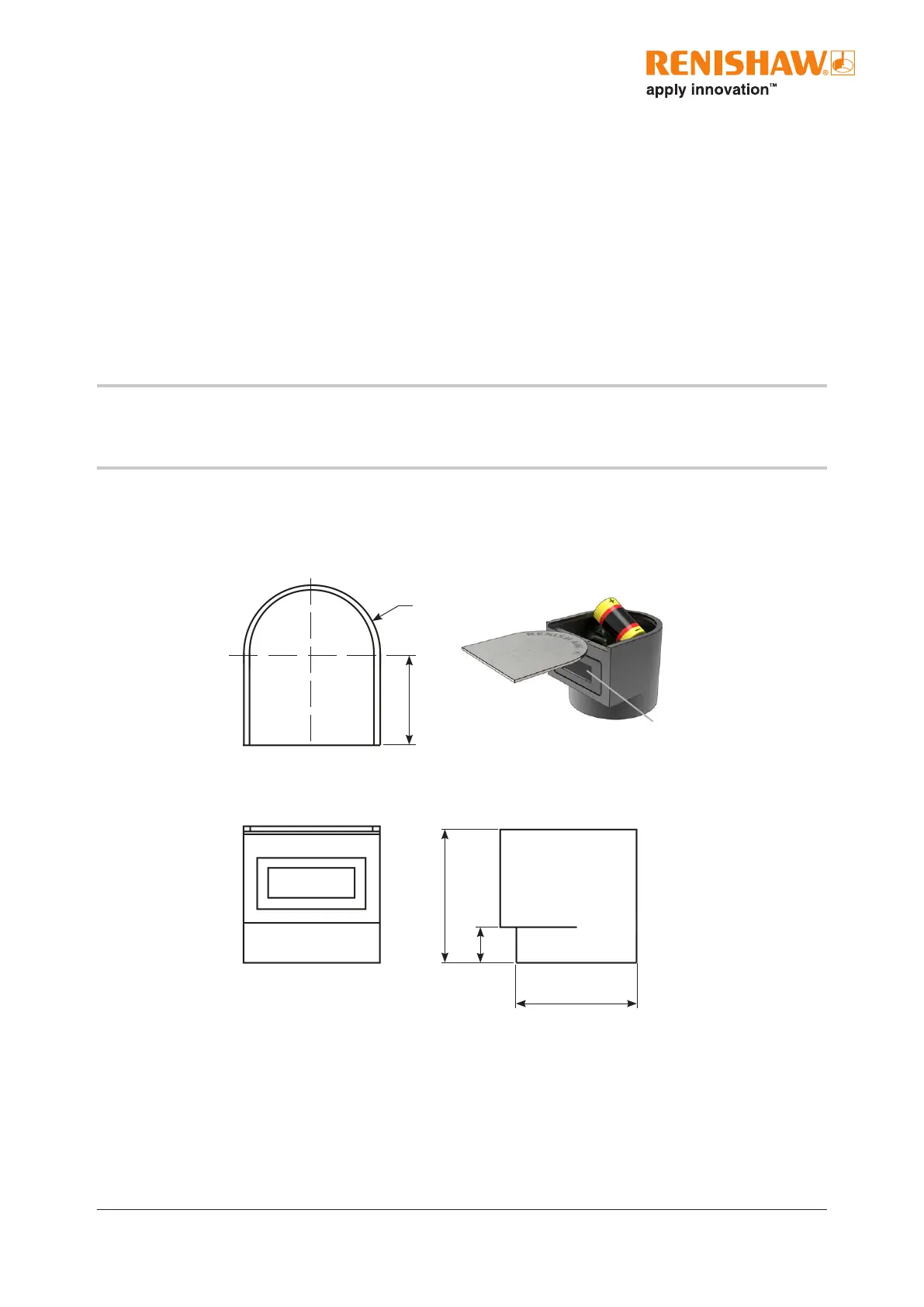

Dimensions
Dimensions given in mm (in)
21.3 (0.84)
35 (1.38)
10.5
(0.41)
R = 18.75
(R = 0.74)
39.5 (1.56)
Numerical display
