Renishaw NC4 Installation Guide

2-1
www.renishaw.com/nc4
NC4 basics
Introduction
This guide describes how to install, congure, maintain and service the Renishaw NC4 non-contact tool
setting system.
The NC4 is a laser-based non-contact tool setting system that provides high-speed/high-precision
measurement of cutting tools on a machining centre under normal operating conditions.
As a tool moves through the laser beam, the system detects when the beam is broken. Output signals sent
to the controller allow the presence of a tool and the position of the tip to be established. This can be used
to determine the dimensions of tools (tool measurement) or condition of tools (broken tool detection).

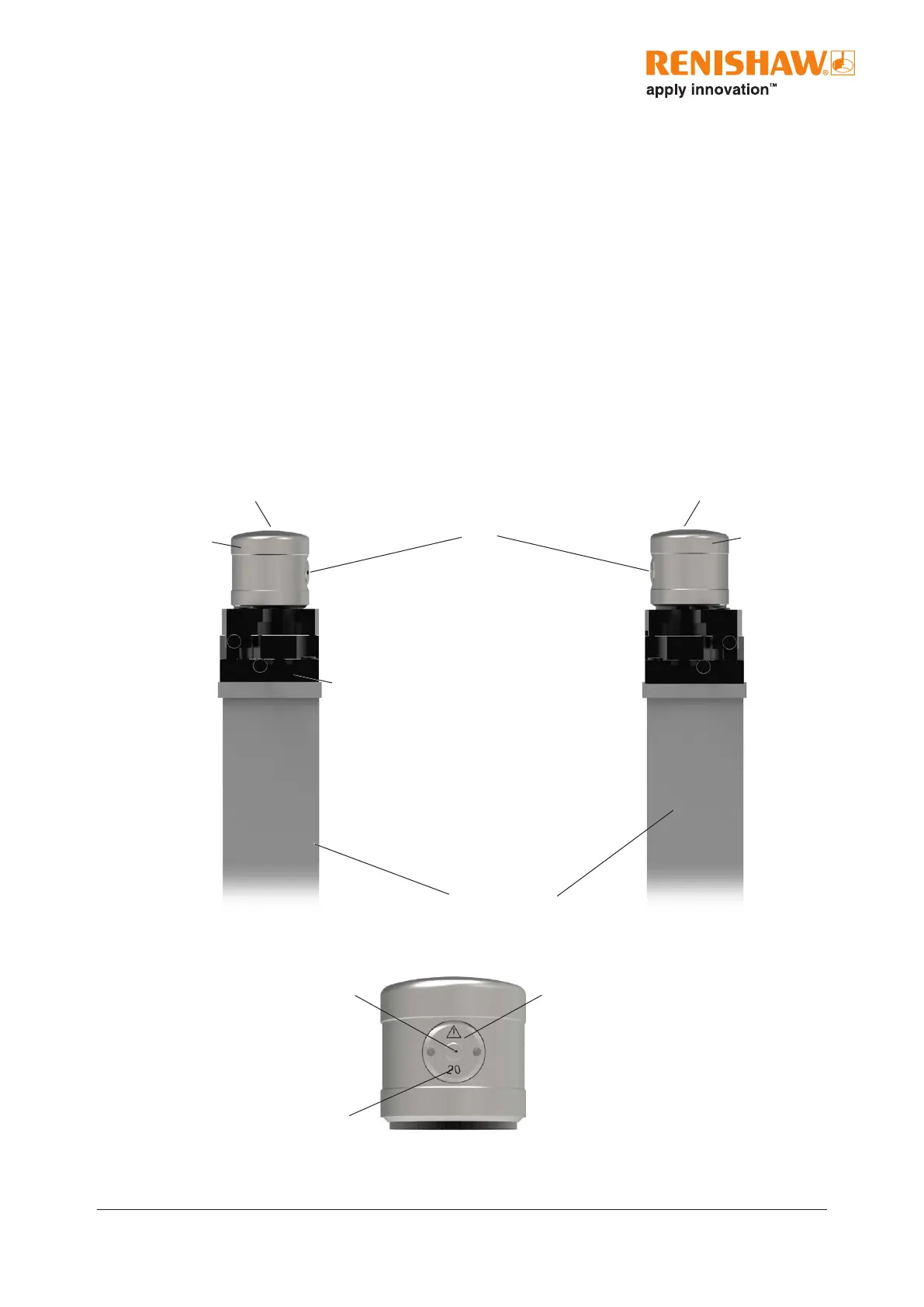

NC4 unit components
Rx head
Status LED
Access
panels
Status LED
Tx head
Access panel
Laser
aperture /
MicroHole™
Access panel
identication
marking
3-plate adjuster pack
Typical mounting
bracket
