Renishaw NC4 Installation Guide

3-5
www.renishaw.com/nc4

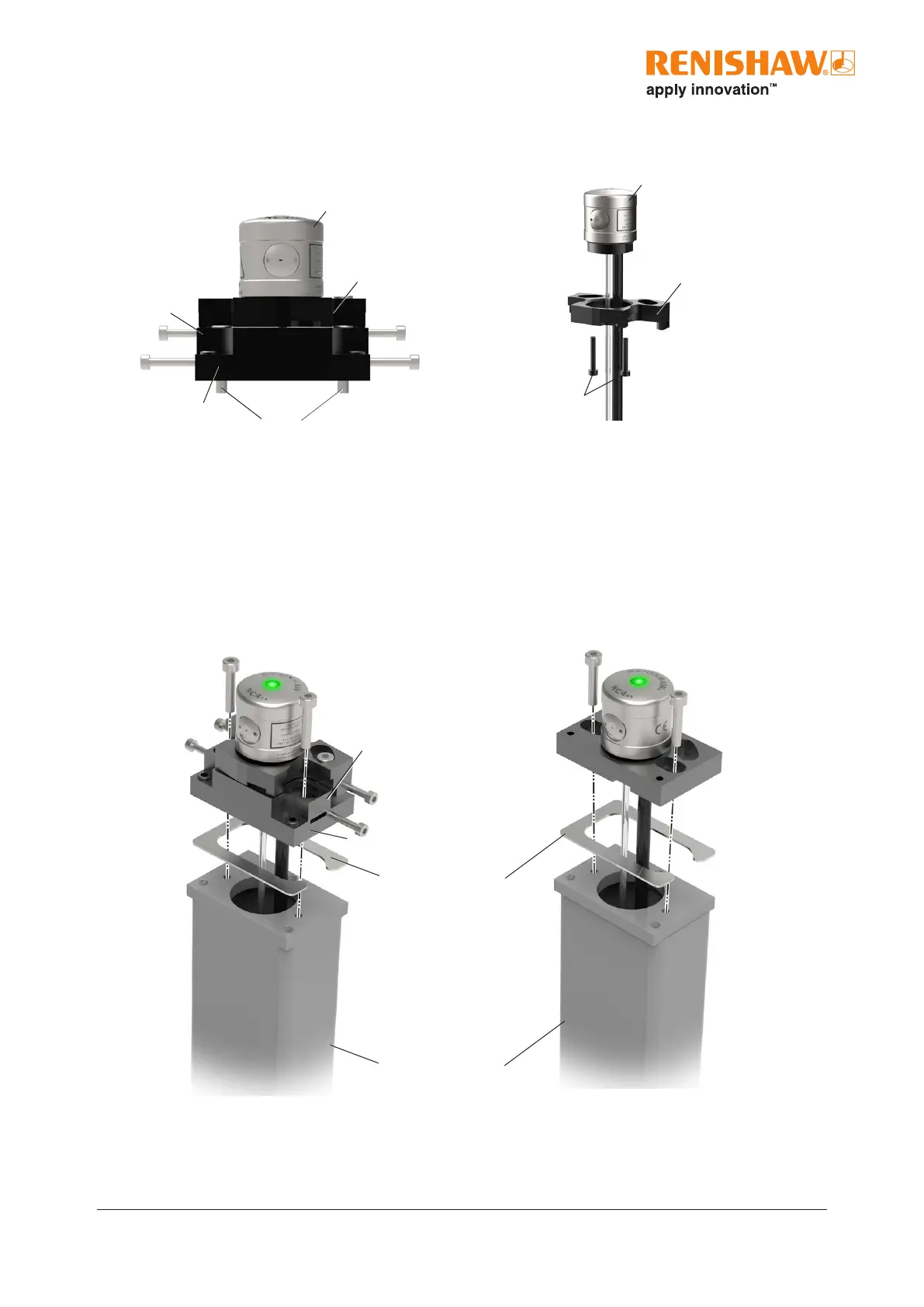

5. Remove the two screws that secure mounting plate A to the adjuster pack. Feed the electrical cable
and air pipe through mounting plate A.
6. Secure the NC4 unit to mounting plate A with the two M3 holding screws.
7. Feed the electrical cable and air pipe through mounting plates B and C.
Mounting plate C
Screw covers (to keep the
assembly together during transit)
Mounting plate B
Mounting plate A
NC4 unit
3-plate adjuster
pack
Single-plate
adjuster pack
Mounting plate B
Mounting plate C
1 mm spacer plate
(used to raise the
adjuster pack if
required; see the
NC4 non-contact tool
setting accessories
data sheet (Renishaw
part no. H-2000-2223))
Typical mounting
bracket
NC4 unit
Mounting plate A
M3 holding screws (×2)
