Renishaw NC4 Installation Guide

3-12
NC4 non-contact tool setting system: System installation
6. Adjust the rotation and the pitch of the transmitter until the laser beam shines on the centre of the
receiver MicroHole.
7. Load a tool into the spindle of the machine. A solid, at-bottomed tool is preferred.

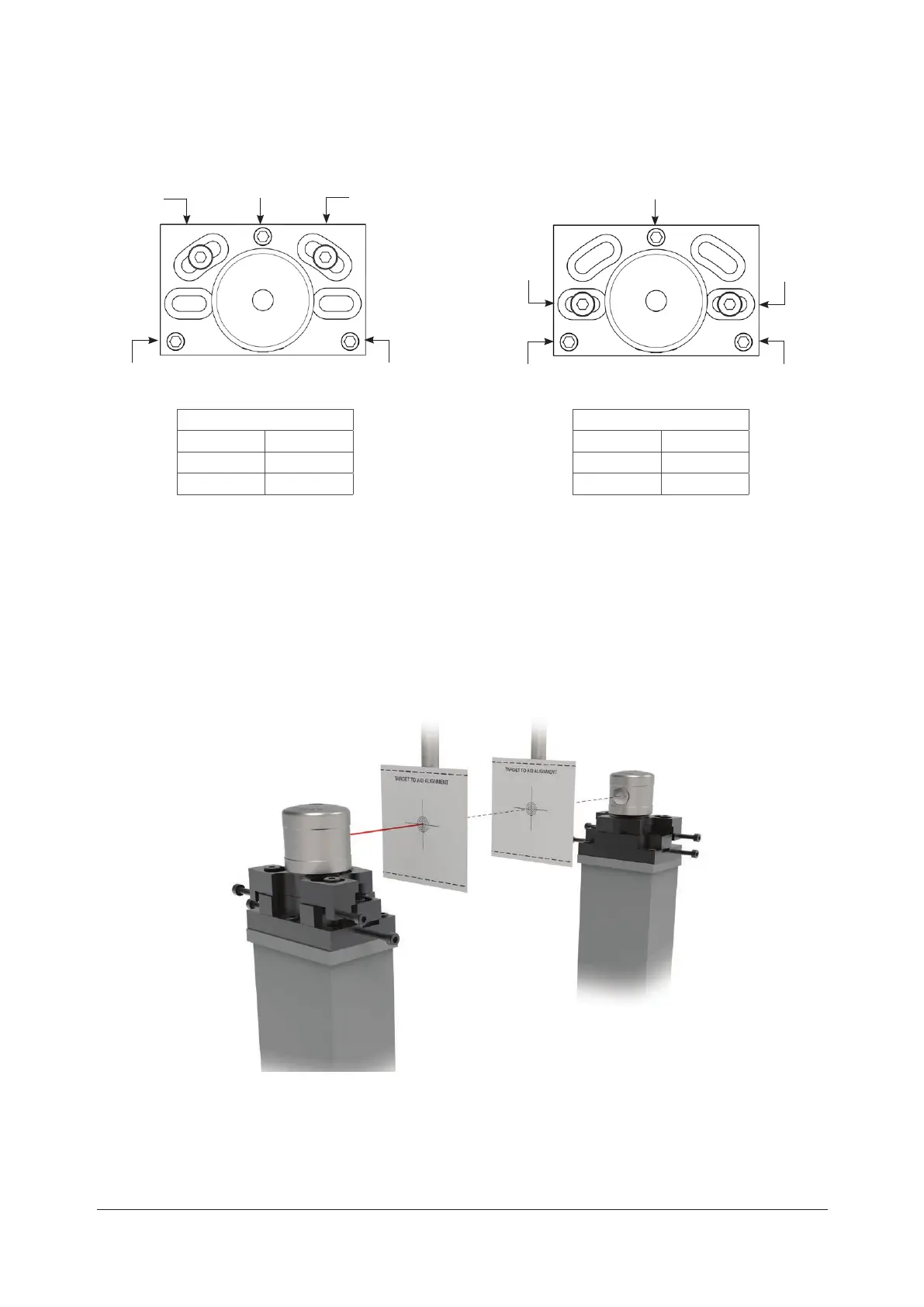

8. Attach a target marker to the tool, as shown in the gure below.
Rotation
holding
screw
Rotation
holding
screw
Pitch and height
adjuster screw
Limits of adjustment
Rotation ±7 degrees
Height ±2.5 (±0.098)
Pitch ±5 degrees
Pitch and height
adjuster screw
Pitch and height
adjuster screw
Translation
holding
screw
Translation
holding
screw
Pitch and height
adjuster screw
Limits of adjustment
Translation ±2.5 (±0.098)
Height ±2.5 (±0.098)
Pitch ±5 degrees
Pitch and height
adjuster screw
Pitch and height
adjuster screw
Single-plate
adjuster pack
Target position 2
Target position 1
