Rexroth EcoDrive 03 DKC**.3-040...200 Instructions for Use 5-9
DOK-ECODR3-DKC40*200UL-IB01-EN-P
Mains connections
The mains connector serves as the connection of the drive controller with
the power supply.
device-external device-internal
AP5370F1.FH7
X5
L1
L2
L3
L1
N
n.c.

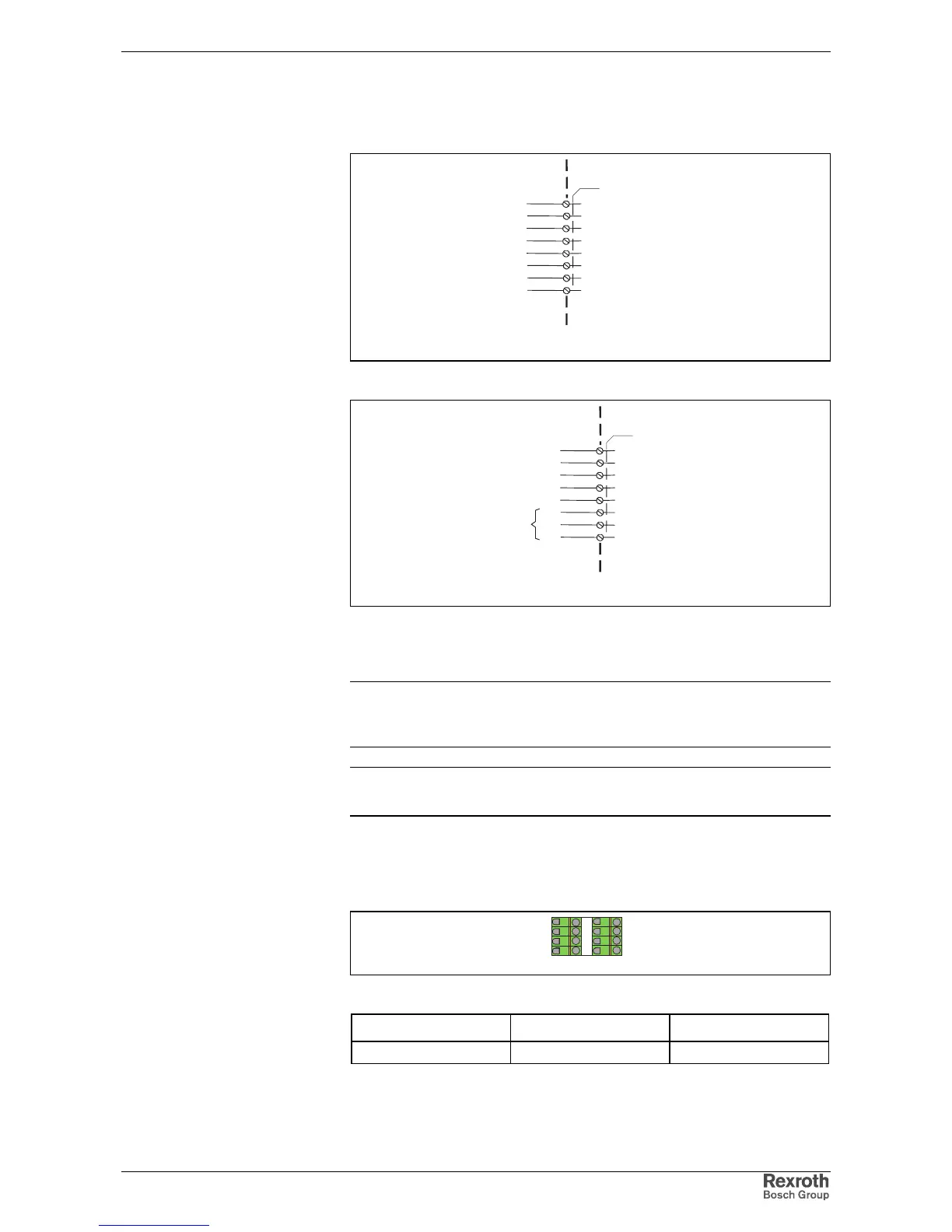

Fig. 5-19: Single-phase mains connection
device-external device-internal
AP5303F1.FH7
X5
L1
L2
L3
L1
L2
L3
mains connection
Fig. 5-20: Three-phase mains connection
XE2
Note: Mains connections should not be daisy-chained between the
units (intermediate connectors for the supply source should be
used).
Note: If applicable, an additional input filter SUP-M03-DKCxxx.3
NFD must be installed.
X6, Motor temperature monitoring and holding brakes
Technical description of connector
Ap5264f1.FH7
1234
5678
Fig. 5-21: Connector X6
Type No. of pins Design
Spring contact 2 x 4 Bushing on connector
Fig. 5-22: Design
Single-phase mains connection:
Three-phase mains connection:
Protective conductor connection
Illustration:
Design:
