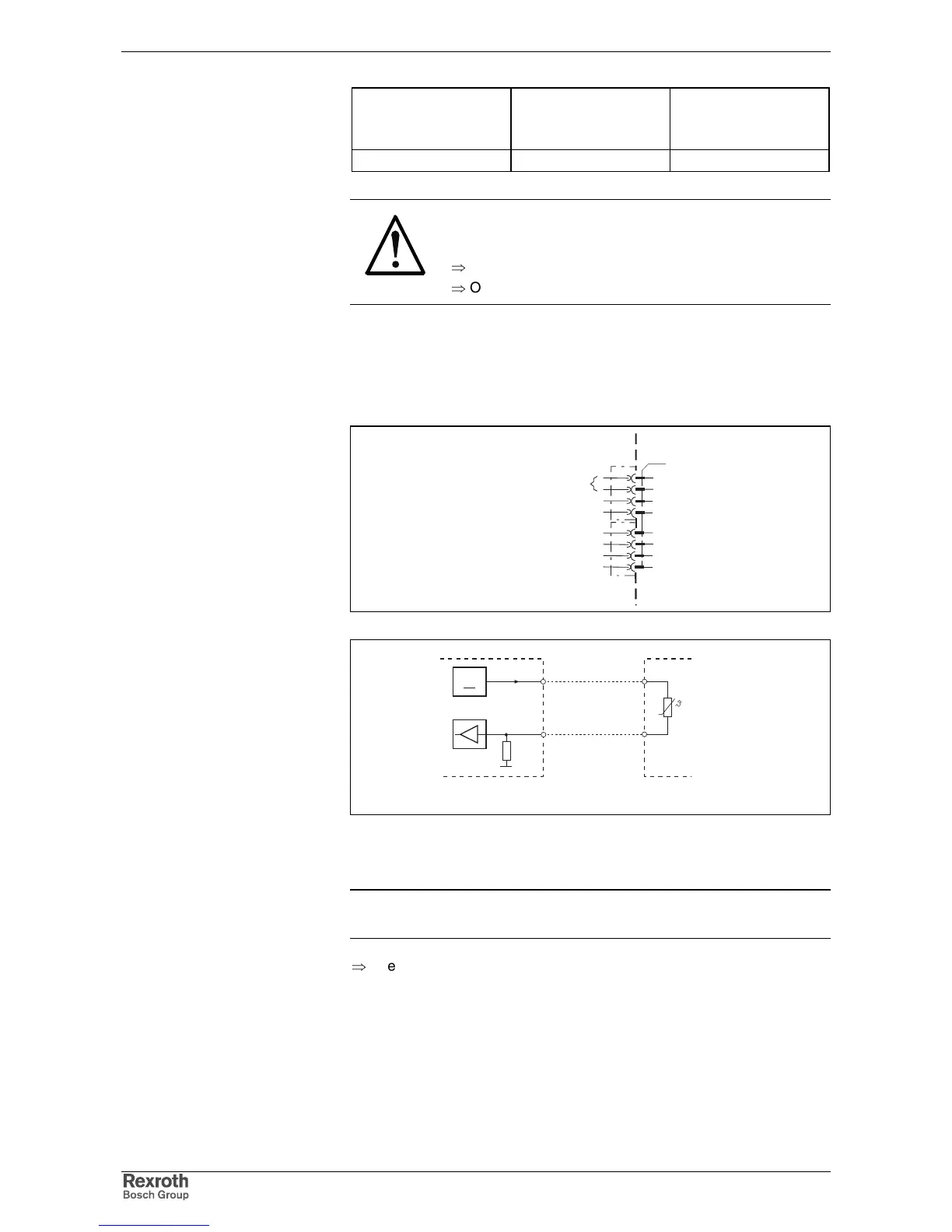

REXROTH EcoDrive 03 User Manual

5-10 Instructions for Use Rexroth EcoDrive 03 DKC**.3-040...200
DOK-ECODR3-DKC40*200UL-IB01-EN-P
Cross section
single wire
[mm²]
Cross section
multi core wire
[mm²]
Cross section
in AWG
Gauge no.:
0.2-2.5 1,5-2,5 16-12
Fig. 5-23: Connection cross section
CAUTION
Damages by exchanging the connectors X6.1-4
and X6.5-8!
⇒ Do not exchange connectors X6.1-4 and X6.5-8.
⇒ Only use lines with sufficient cross section.
Motor temperature monitoring (TM+, TM)
Connections TM+ and TM- are used to evaluate the temperature of
connected Rexroth motors. These are equipped with a temperature-
dependent resistor (either PTC or NTC dependent on the motor type) to
monitor temperature. The connection leads are in the motor power cable.
AP5297F1.FH7
X6
1
2
TM+
TM-
3
4
5
6
7
8
motor temperature monitoring
device-external device-internal
Fig. 5-24: Motor temperature monitoring
AP5326F1.FH7
G
R
TM+
TM-
U
Drive Controller MOTOR
Schematics
U: approximately 5 V
R: approximately 2 k
Fig. 5-25: Motor temperature evaluation
Note: Connections TM+ and TM- are only to be used with Rexroth
motors.
⇒ See also firmware functional description : "Temperature monitoring".
Connection cross section:
Connection
monitoring
TM+, TM-:
Motor temperature evaluation:
