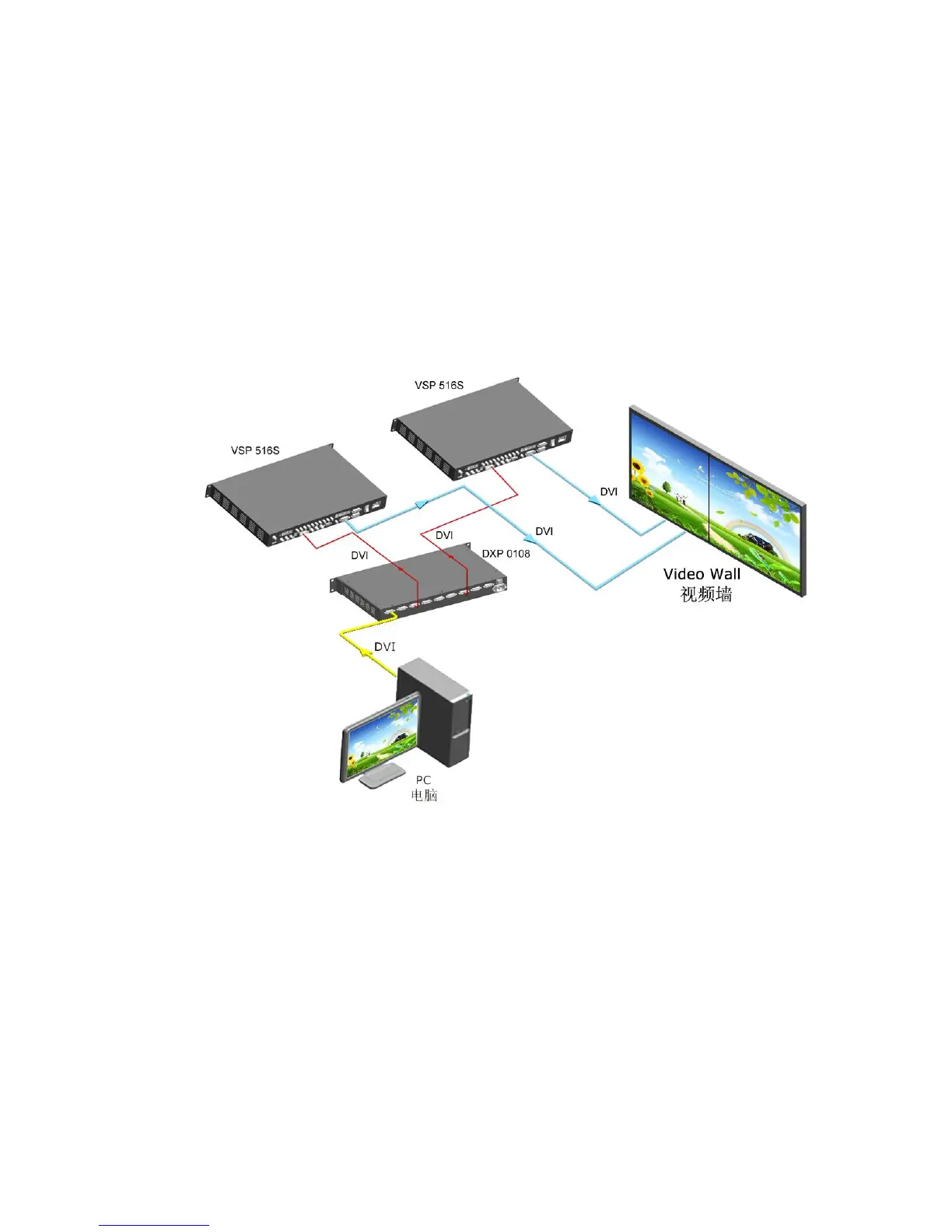

6.
System Setup and Operation
How to
Achieve Multiple C
ascade
VSP 516S
User Manual
114
parameter pr
eservat
ion.
It is automatically lo
ad SAVE1,
if sav
e to other channel,
please pus
h
the [LOAD/PIP2] button
and push c
orresponding b
utton to
load the
saved parameter.
4. Sketch
113
115
Table of Contents
Default Chapter
4
Power Source
4
Content
7
Table of Contents
7
Brief Introduction
14
Chapter Structure
15
How to Use the Manual
16
Term and Definitions
17
System Overview
23
Application Questions
24
Hardware Orientation
25
In this Chapter
25
VSP 516S Back Panel
26
CONT Interface
26
2: Dial Switch
26
3: 10/100M UDP Interface
26
4: USB Interface
27
5: RS232 Interface
27
INPUT Interface
27
15: Audio Input
27
1: 3G-SDI Input
27
21: Displayport Input
27
25: S-Video Input
27
26: DVI Input
27
10/100M Interface RJ45
28
18: Power Supply Port of Sending Card
28
19：USB Control Port of Sending Card
28
20：DVI Input
28
27~29: Ypbpr Input
28
30: VGA Input
28
31: AUDIO Output
28
32: DVI Output
28
33: DVI +VGA DVI Output
28
Output
28
34.35: Power Interface and Switch
29
Switch and Power
29
2: Dial Switch
30
3: 10/100M UDP Interface
30
4: USB Interface
30
CONT Interface
30
17: Displayport Input
31
1: 3G-SDI Input
31
21: S-Video Input
31
22: DVI Input
31
23~25: Ypbpr Input
31
26: VGA Input
32
Output
32
12: 10/100M Interface RJ45
32
8.13: Power Supply Port of Sending Card
32
9.14: USB Control Port of Sending Card
32
10.15: DVI Input
32
27: AUDIO Output
32
28: DVI Output
32
29：DVI +VGA DVI Output
32
Switch and Power
33
Power Interface and Switch
33
VSP 516S Front Panel
34
OLED Panel
34
Menu Buttons
34
5: RS232 Interface
31
INPUT Interface
31
Hardware Installation
38
In this Chapter
38
Safety Precautions
40
Unpacking and Inspection
40
Site Preparation
40
Menu Orientation
41
In this Chapter
41
Menu
42
Input
44
Output
46
Transition
52
Audio
54
Split
54
Save Setup
55
System
55
Language
56
Factory Reset
56
Communication Software Guideline
57
In this Chapter
57
Software Installation
58
Software Operation
62
Connection
62
Use
65
File Toolbar
65
Communication Toolbar
67
Device Toolbar
67
Schedule Toolbar
69
Output Resolution Toolbar
70
Images Display Mode Toolbar
70
Layout Toolbar
70
Aspect Ratio Toolbar
71
Signal Input Toolbar
71
Screen Parameter Toolbar
72
Image Toolbar
72
Display Toolbar
72
Output Image Setup Toolbar
73
Images Display Toolbar
74
User Mode Toolbar
74
Log Toolbar
74
Information Toolbar
74
[Video Processor] Options
75
[Help] Options
77
How to Connect Windows Control Program by LAN Interface
78
How to Connect Windows Control Program by RS232 Interface80
80
How to Connect Windows Control Program by USB Interface
83
System Setup and Operations
87
In this Chapter
87
Interface and Input Signal Option
88
How to Change the Language
93
How to Do Customized Output Resolution
94
How to Realize Single Image Switching
96
How to Set up the PIP
97
How to Set up the Size and Position of the Single Image
98
How to Set up Image Zoom
99
How to Realize the Screen Size and Full Size Switching
100
How to Realize the Freeze and the Live Image Switching
101
How to Realize the Text Overlay Setting
102
How to Set up the Volume
104
How to Set up the Playlist
106
How to Use Black out
109
How to Save the Parameter
110
How to Load the Saved Parameter
111
How to Achieve Multiple Cascade
112
Common Questions and Solutions
115
In this Chapter
115
No Output in LED Display
116
Confirm if There Is any Input Signal
116
Confirm if Signal Output
116
Flash Point in LED Display Output
116
Confirm if Monitor Output Is Normal
116
LED Display Only Displays Part of the Image
117
Signal Needs to Scale
117
No Display in the Second Half Part of LED Display
117
Resolution Is Insufficient
117
Left Screen Appears Two Black Sides
117
Adjust de Deviation
117
All Key Lights Light on Simultaneously
118
Check if Dial Switch Is Normal
118
Aliasstep or Shake When Input SDI Signal
118
Spottted Image or Freeze When Switch CV Signal
118
Normal Phenomenon
118
If DP Port Can Connect DVI or HDMI Signal
119
DP Port Can Only Connect DP Signal
119
Specification
120
Software Upgrade
123
USB Upgrade
123
How to Install the SDI Optional Module
128
