2. Hardware Orientation
VSP 516S Back Panel
VSP 516S User Manual 30

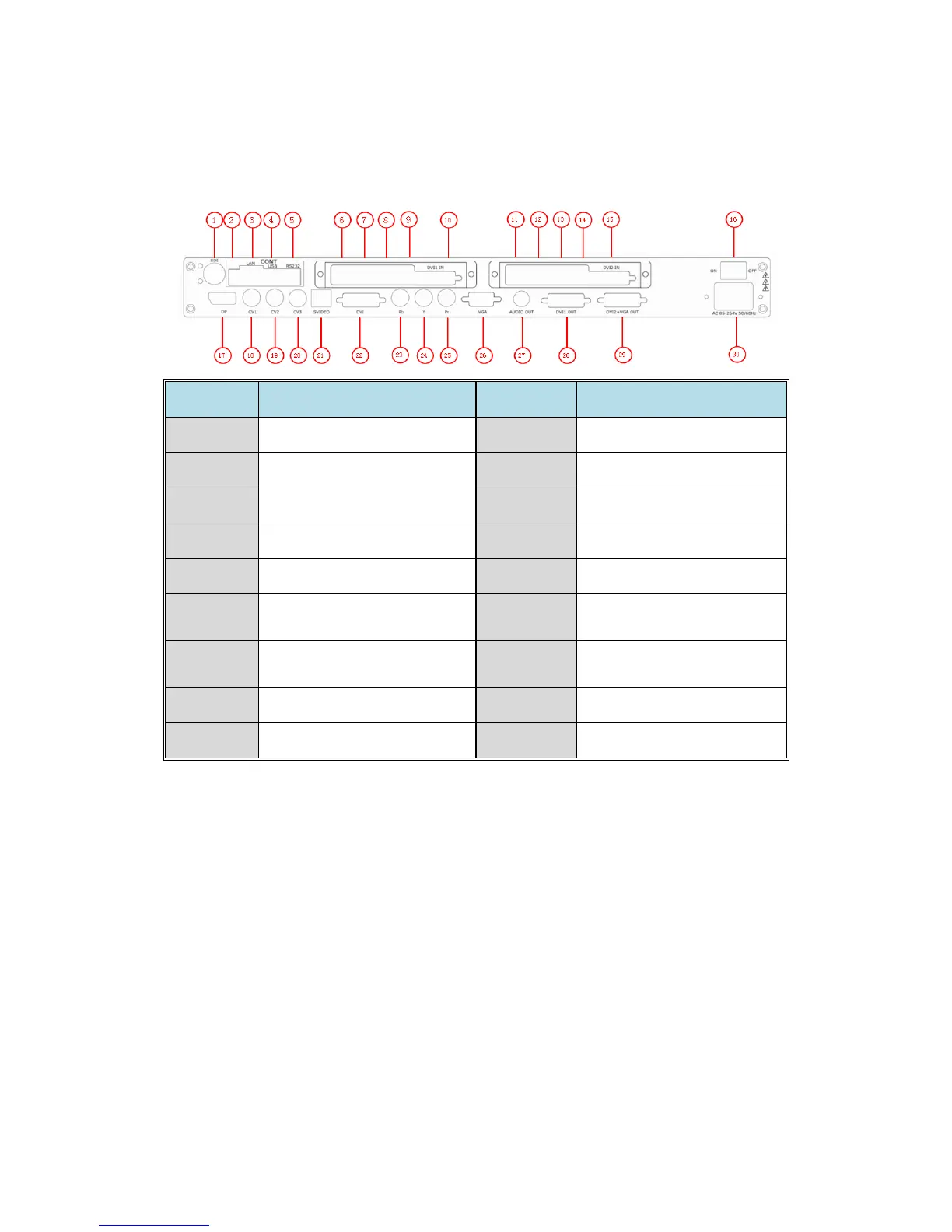

The figure below illustrates the professional interface and control signals of
VSP 516S back panel with two sending cards.
NO
INTERFACE
NO
INTERFACE
1
3G-SDI input BNC CVBS port
18~20
CVBS Input BNC port
2
Dial the code switch
21
S-Video DIN 4
3.6.7.11.12
10/100M Interface RJ45
22
DVI Input DVI-I
4.9.14
USB Interface
23~25
YPbPr Input
5
RS232 Interface
26
VGA Input DB15 port
8.13
Power supply port of
Sending Card
27
Audio Output
10.15
DVI input port of
sending card
28
DVI Output DVI-I
16
Switch
29
DVI+VGA DVI-I Output
17
Displayport Input
30
Power IEC-3 port
CONT Interface
2: Dial Switch
If the two dial switches are upwards, the device is in normal work, and if
they are downwards, the device is in upgrade state. OLED module light is
off when the device is in upgrade state. Some of the button lights turn on,
and the device will not work.
3: 10/100M UDP Interface
Used to connect the windows control program or device upgrade.
4: USB Interface
