2. Hardware Orientation
VSP 516S Back Panel
VSP 516S User Manual 26
VSP 516S Back Panel

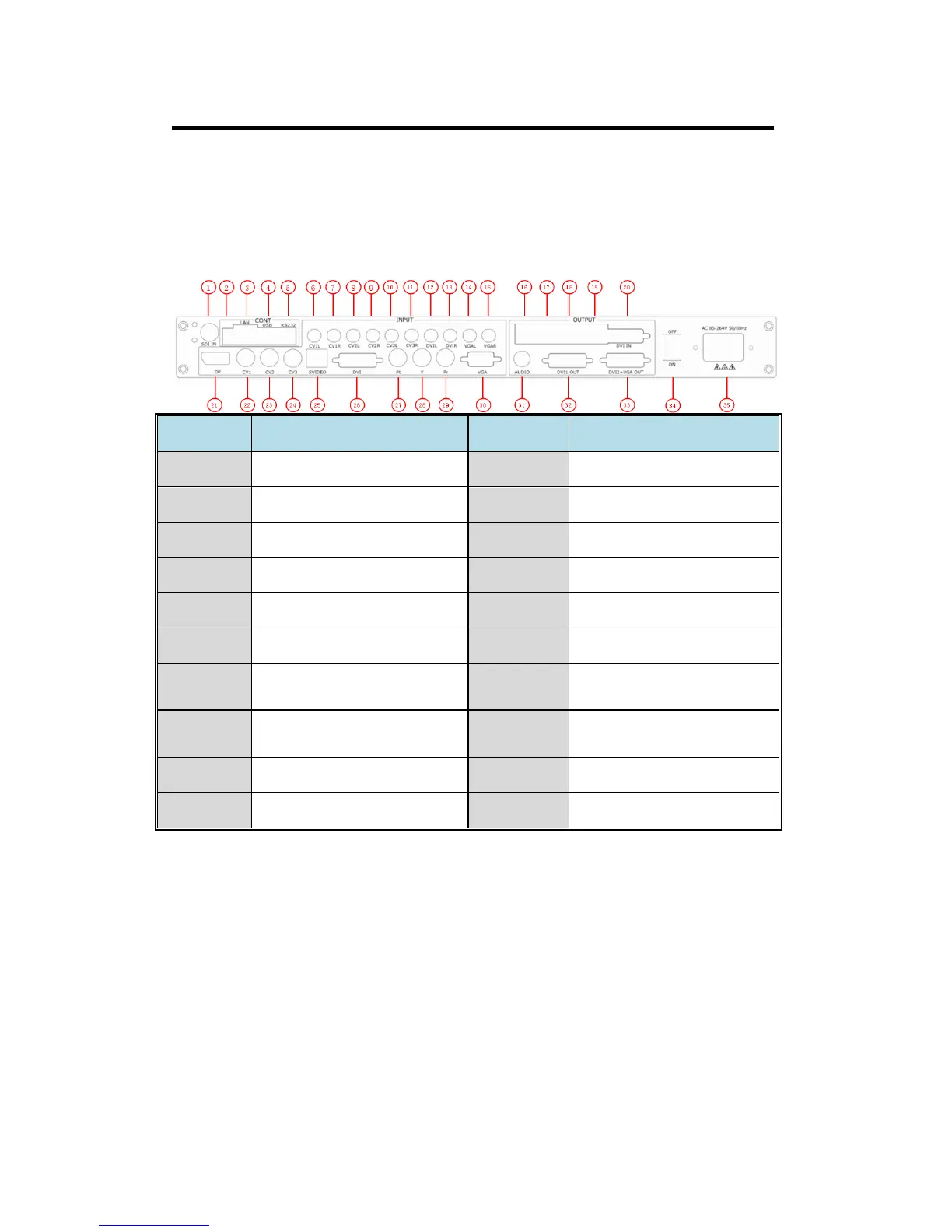

At present there are 2 versions of VSP 516S. The figure below illustrates
the professional interface and control signals of VSP 516S back panel with
audio.
NO
INTERFACE
NO
INTERFACE
1
3G-SDI input BNC CVBS port
25
S-Video DIN 4
2
Dial the code switch
26
DVI Input DVI-I
3.16.17
10/100M Interface RJ45
27~29
YPbPr Input
4.19
USB Interface
30
VGA Input DB15 port
5
RS232 Interface
31
Audio Output
6~15
Audio Input
32
DVI Output DVI-I
18
Power supply port of
Sending Card
33
DVI+VGA DVI-I Output
20
DVI input port of
sending card
34
Switch and Power
21
Displayport Input
35
Power IEC-3 port
22~24
CVBS Input BNC port
CONT Interface
2: Dial Switch
If the two dial switches are upwards, the device is in normal work, and if
they are downwards, the device is in upgrade state. OLED module light is
off when the device is in upgrade state. Some of the button lights turn on,
and the device will not work.
3: 10/100M UDP Interface
