2. Hardware Orientation
VSP 516S Front Panel
VSP 516S User Manual 34

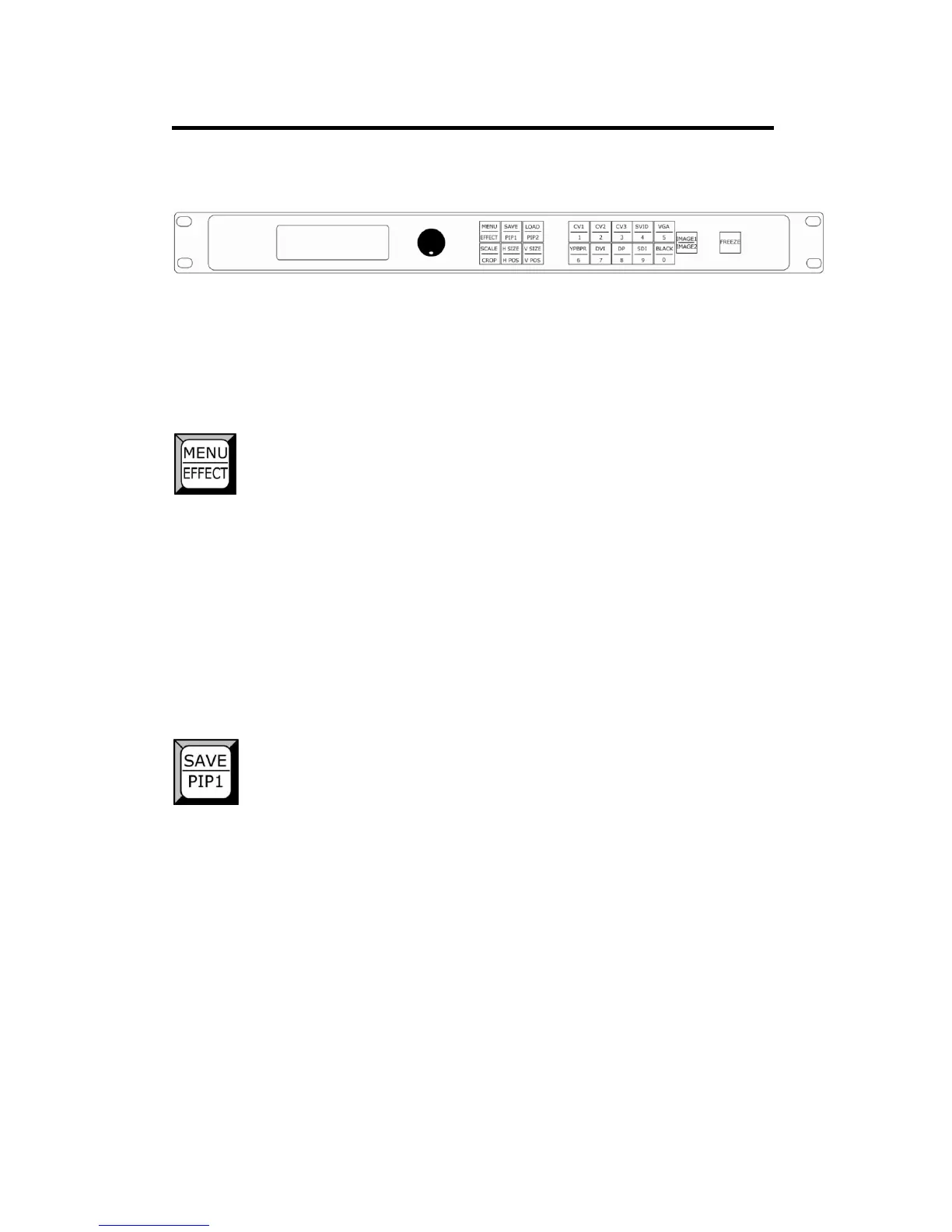

VSP 516S Front Panel
VSP 516S front panel is as following:
OLED Panel
Used to show button menu and menus for interactive communication.
Menu Buttons
MENU/EFFECT: Menu and Effect function reuse button.
Push the button to enter to MENU function, OLED panel shows MENU items,
turn the knob to select menu option, push the knob to confirm, push the button
can back to the last menu.
For details, please refer to MENU.
Push the button for two times to enter to EFFECT function, OLED panel shows
the effect menu items. Turn the knob and push to select the EFFECT mode,
then push the knob to confirm.
SAVE/PIP1: SAVE and PIP1 function reuse button.
Push the button to enter to SAVE mode, turn the knob or push the number
button to select save position.
Currently, it supports 10 saving modes. The figure: 1, 2, 3, 4, 5, 6, 7, 8, 9, 0
means SAVE1~10.
The OLED panel will show finish after finish saving.
Push the button for two times to enter to PIP1 shortcut key function, turn the
knob for PIP setup. Push the button again to close PIP function.
