2. Hardware Orientation
VSP 516S Front Panel
VSP 516S User Manual 35

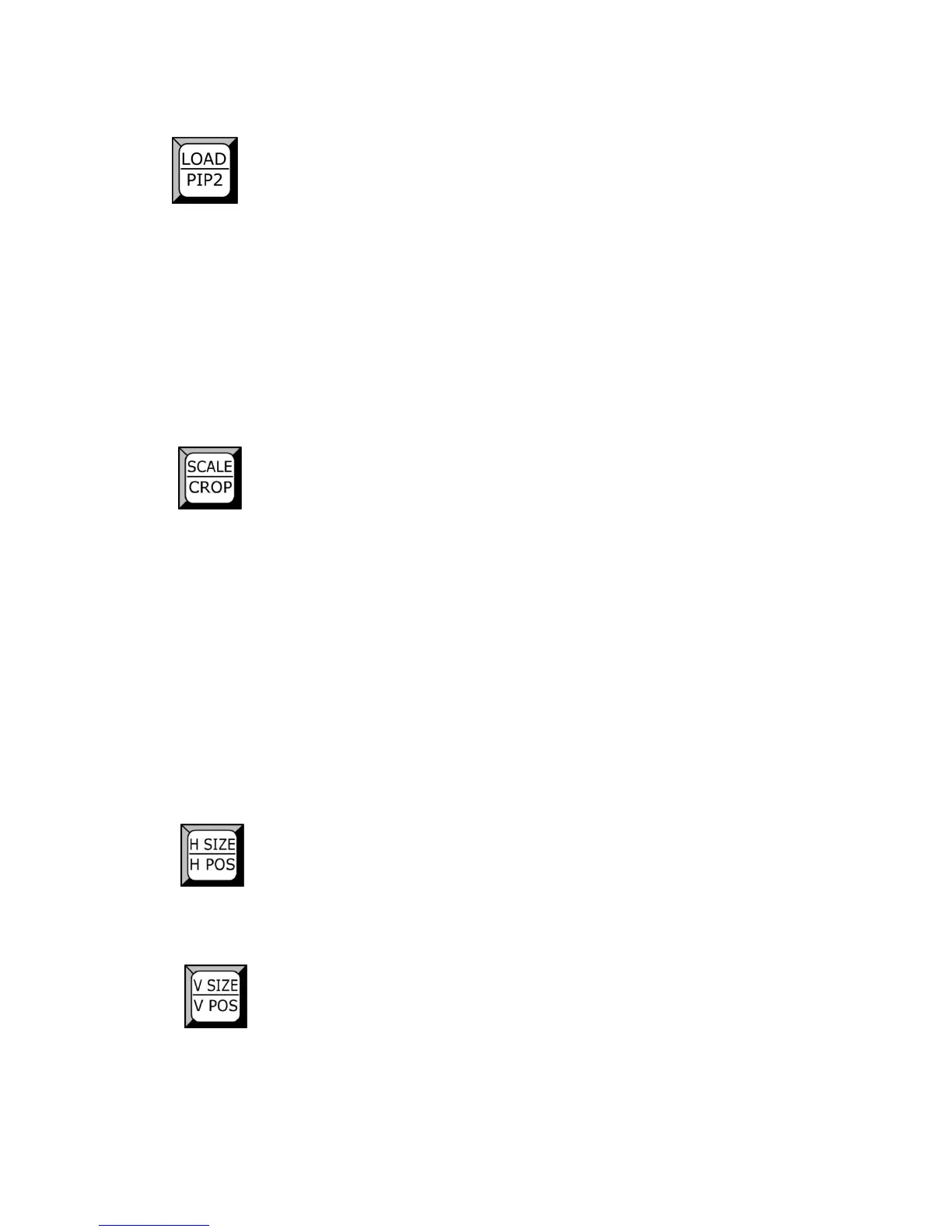

LOAD/PIP2: LOAD and PIP2 function reuse button.
Push the knob to enter LOAD mode, turn the knob or push the number button
to select LOAD position.
Currently, it supports 10 loading modes. The figure: 1, 2, 3, 4, 5, 6, 7, 8, 9, 0
means LOAD SAVE1~10.
The OLED panel will show finish after finish loading.
Push the button for two times to enter to PIP2 shortcut key function, turn the
knob for PIP setup. Push the button again to close PIP function.
SCALE/CROP: SCALE and CROP setting reuse button.
Push the button to enter to SCALE mode. Turn the knob for H SIZE, V SIZE,
H POS and V POS setting. User can also push H SIZE\H POS button to set
the width by knob or number button, push H SIZE\H POS button for two times
to set the horizontal position by knob or number button. Push V SIZE\V POS
button to set the height by knob or number button, push V SIZE\V POS button
for two times to set the vertical position by knob or number button.
Push the button for two times to enter to CROP mode. Turn the knob to
choose the crop menu items, and adjust the image by knob or number
number.
H SIZE/H POS: Width and horizontal position setting reuse button.
Push the button to enter to the width setting.
Push the button for two times to enter to the horizontal position setting.
V SIZE/V POS: Height and vertical position setting reuse button.
Push the button to enter to the height setting.
Push the button again to enter to the vertical position setting.
