VSP 516S User Manual 128
How to Install the SDI Optional Module
The VSP 516S can be modified to install or remove optional module that
change the input and/or output formats that the processor can process. We
will introduce ―How to Install the SDI Optional Module‖ in the following parts,
specific steps are as follows:
1. Take Apart the VSP 516S
2. Install the SDI Optional Module
3. Assemble the VSP 516S
Part 1: Take Apart the VSP 516S
Specific steps are as follows:
1. Disconnect the AC power cord from the VSP 516S to remove power from
the unit.
Warning: To prevent electric shock, always unplug the VSP 516S from the
AC power source before opening the enclosure.
2. Disconnect all signal and control cables.

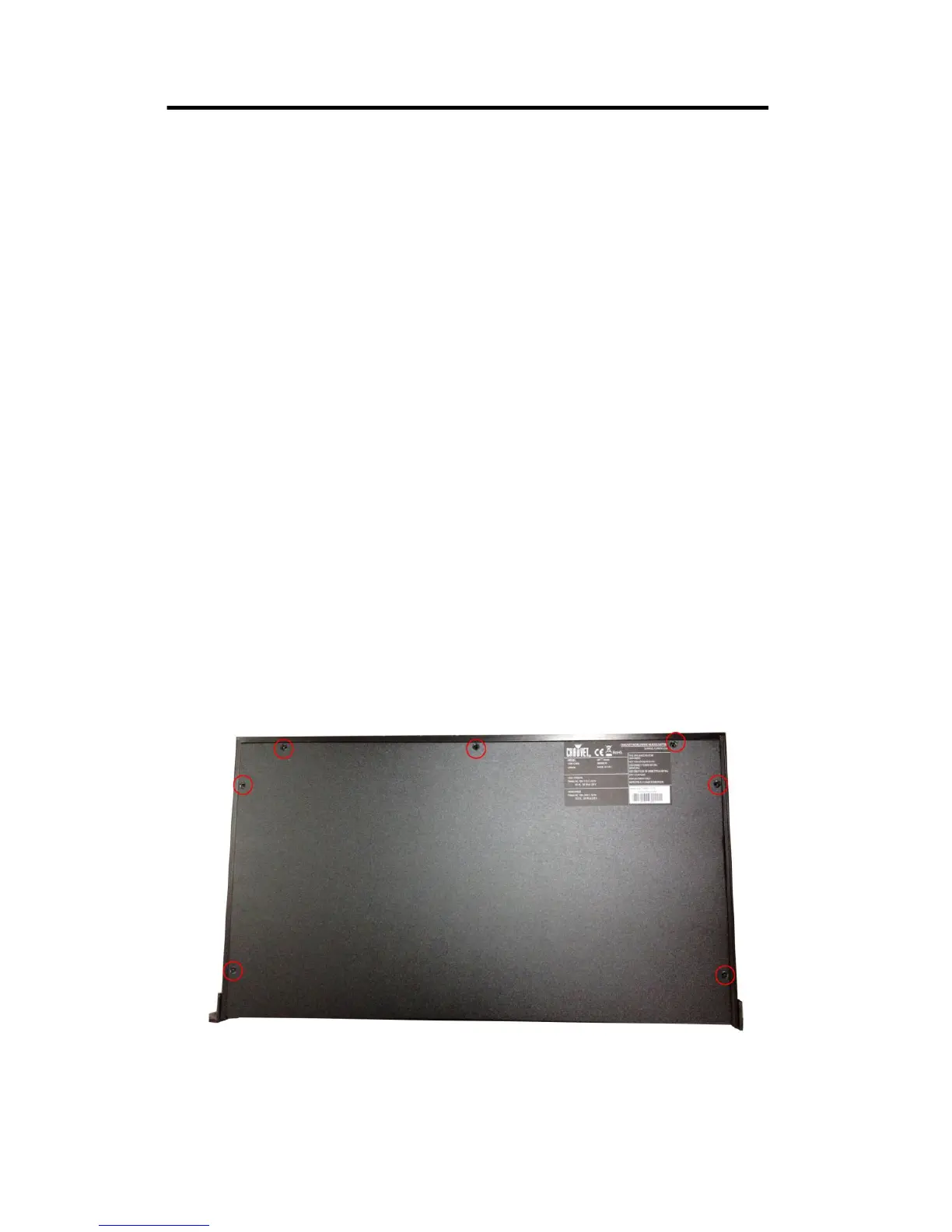

3. Remove the 7 screws on the top cover (Figure 1).
(Figure 1)
4. Remove all the screws on the back panel (Figure 2).
To Next Page
