VSP 516S User Manual 123
B. Software Upgrade
USB Upgrade
1. BOOT Upgrade
Connect the device and computer via the serial port, and upgrade with FLASH MAGIC
software, the form of the file is ―.hex‖.

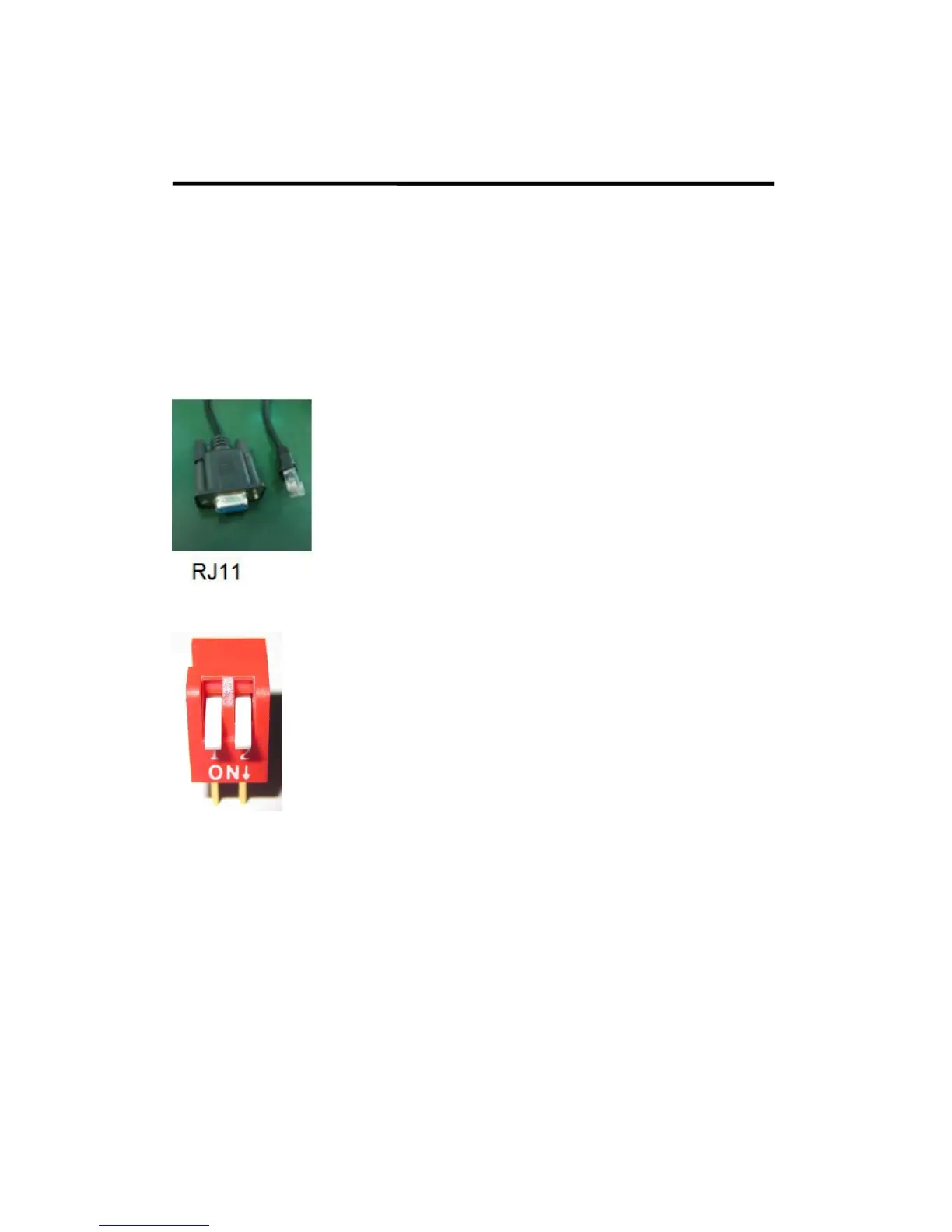

(1) Connect the device and computer with the RJ11 cable.
(2) Take the two coding switch to ―ON‖ position as below:
(3) Plug in the power cord, and make sure the device is in normal operation.
(4) Open the programming software, and enter ―Flash Magic‖ interface.
(5) Choose the corresponding serial port, set the baud rate to 115200, choose LPC2368
and load the object files (hex file) of BOOT update program.
(6) Click START button.
(7) Exit the program, turn off the power, take the two coding switch back, as below restart
the equipment power, check if the equipment work normally.
