6. System Setup and Operations
Interface and Input Signal Option
VSP 516S User Manual 88
Interface and Input Signal Option

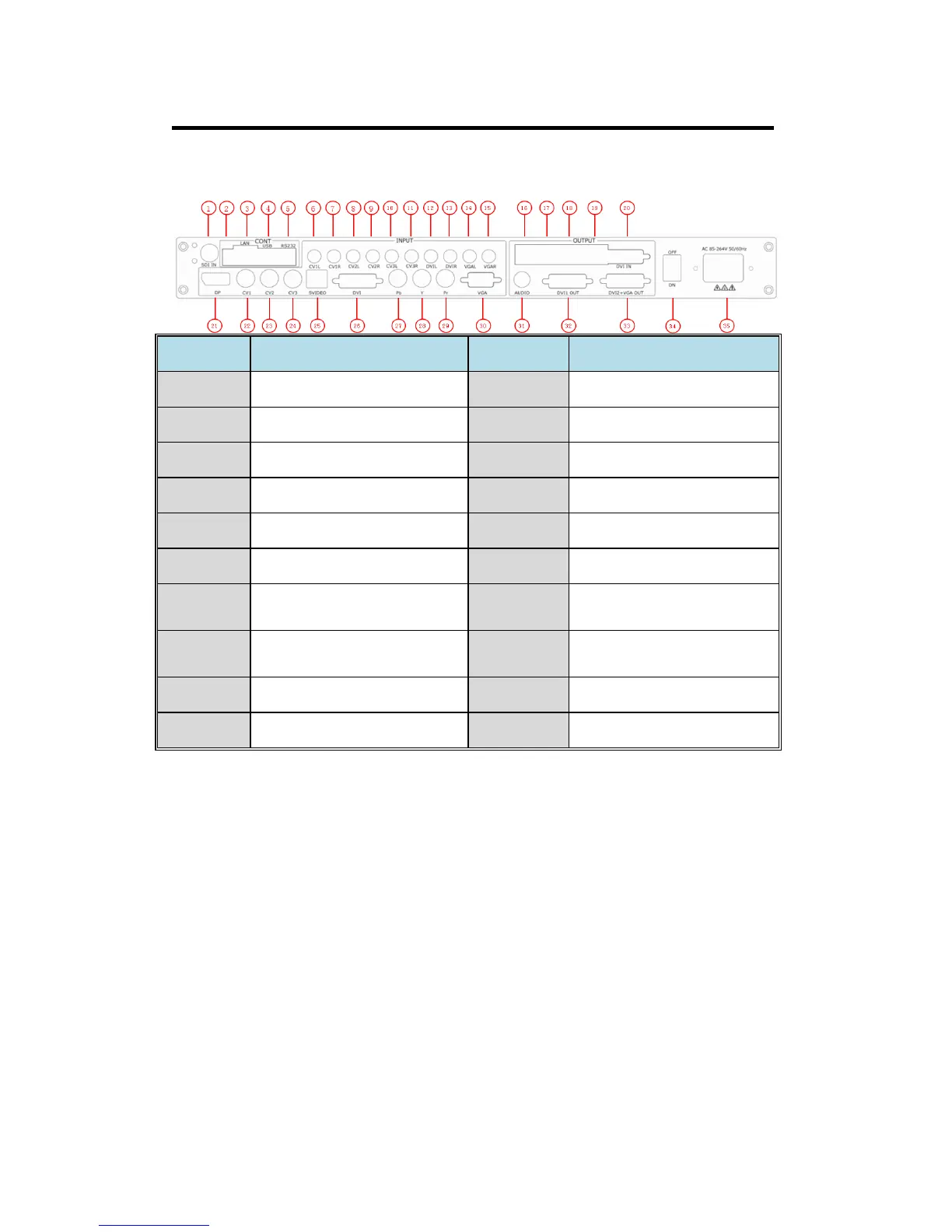

VSP 516S Back Panel with audio:
NO
INTERFACE
NO
INTERFACE
1
3G-SDI input BNC CVBS port
25
S-Video DIN 4
2
Dial the code switch
26
DVI Input DVI-I
3.16.17
10/100M Interface RJ45
27~29
YPbPr Input
4.19
USB Interface
30
VGA Input DB15 port
5
RS232 Interface
31
Audio Output
6~15
Audio Input
32
DVI Output DVI-I
18
Power supply port of
Sending Card
33
DVI+VGA DVI-I Output
20
DVI input port of
sending card
34
Switch and Power
21
Displayport Input
35
Power IEC-3 port
22~24
CVBS Input BNC port
32. DVI1 output , use for connecting the sending card of LED display.
VSP 516S support resolution format as following:
800×600×60, 1024×768×60, 1024×768×75, 1280×720×50, 1280×720×60,
1280×768×60, 1280×800×60, 1280×1024×60, 1360×768×60,
1366×768×60, 1400×1050×60, 1440×800×60, 1440×900×60,
1600×1200×60, 1680×1050×60, 1920×1080×50, 1920×1080×60,
1920×1120×60, 1920×1200×60, 2048×1152×60, 2560×812×60,
2560×816×60.
