5. Communication Software Guideline

How to Connect Windows Control Program by LAN Interface

VSP 516S User Manual 78

How to Connect Windows Control Program by LAN

Interface

First, install the upper computer software in the computer;

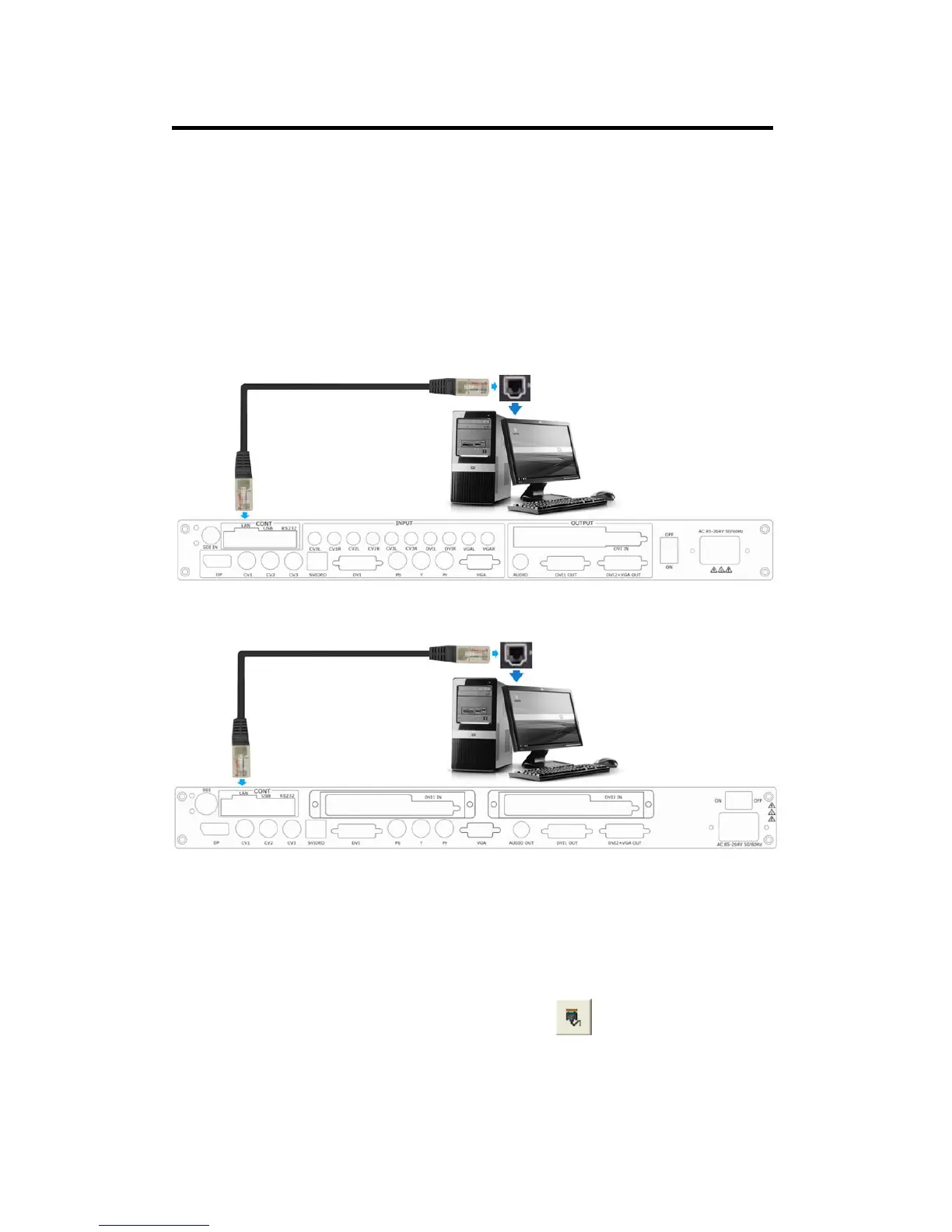

Connect VSP 516S and computer with cable, the connection diagram is

as follows:

Version 1: VSP 516S with audio:

Version 2: VSP 516S with two sending cards:

Power on VSP 516S, start the network function, specific steps are as

follows: MENU--SYSTEM -- ETHERNET -- NERWORK, select ON, and

check the IP address of the equipment, confirm if it is consistent with the

computer, such as 192.168.0.***, take 192.168.0.100 for example.

Open the upper computer software, click , interface is shown as

follows:
