5. Communication Software Guideline
How to Connect Windows Control Program by RS232 Interface
VSP 516S User Manual 82

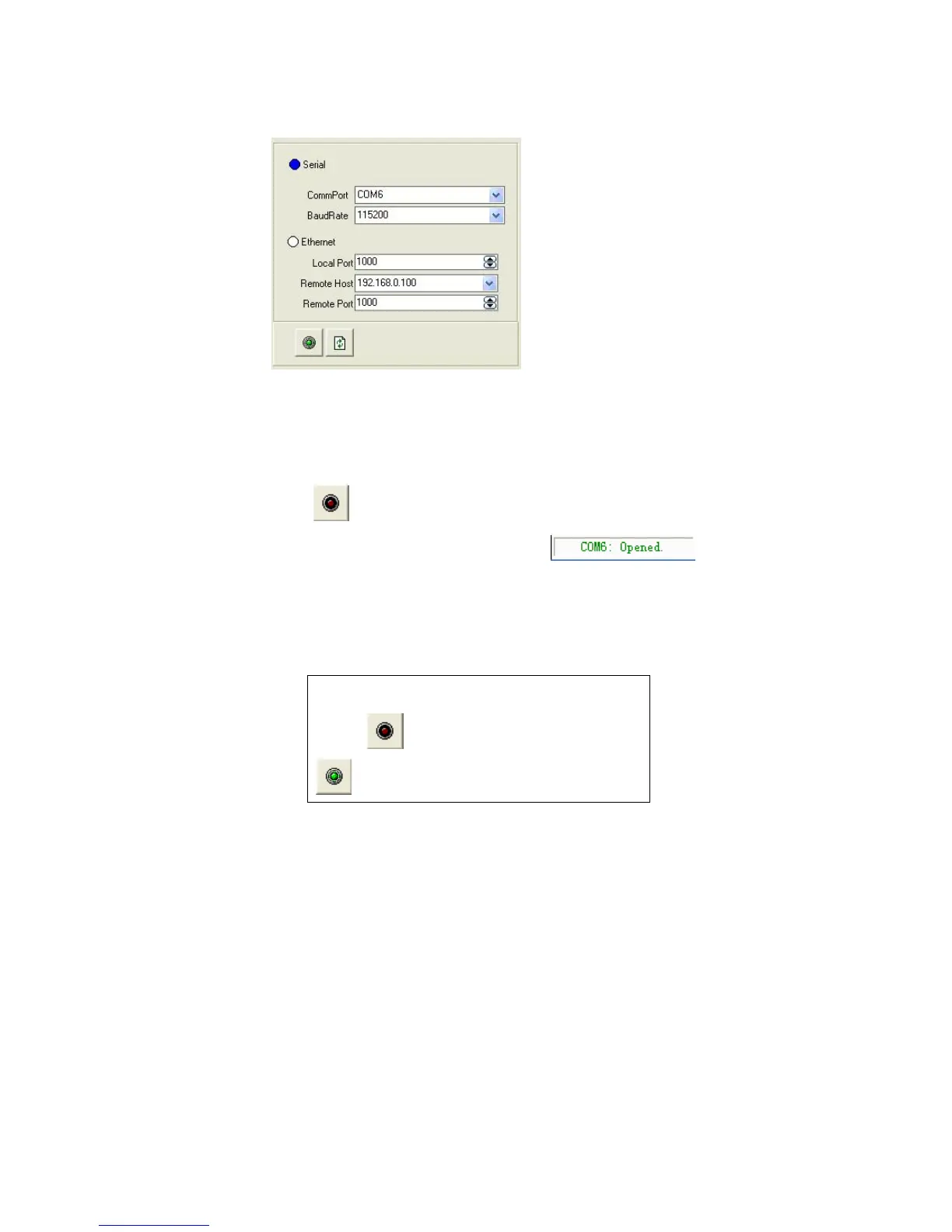

Check and tap [Serial], Serial Port , for example, is COM6 which is checked
from device manager. Set VSP 516S Boud Rate to be :115200. Click
[Confirm] after setting.
Click [open serial], check if [COM] icon is on the bottom right
corner，when there is the prompt green showing on
the software, it means the communication is ok , and you can use the
software to control the device now.
Note
If power off during communication, should close
the port , by first, and plug in out of the USB
and do communication.
