5.1.4 Rubber Electrodes
If used for delivery of electro-therapy, there are two conductive mediums
for you to select, the first one is use electrode sponges as conductive
mediums, another is use other conductive medium such as Transmission
Gel. If using sponges, make sure the sponges are damp before putting
electrodes into the sponges. These rubber Electrodes should be
secured to the treatment area using the Nylon Wraps shipped with the
Therapy System.

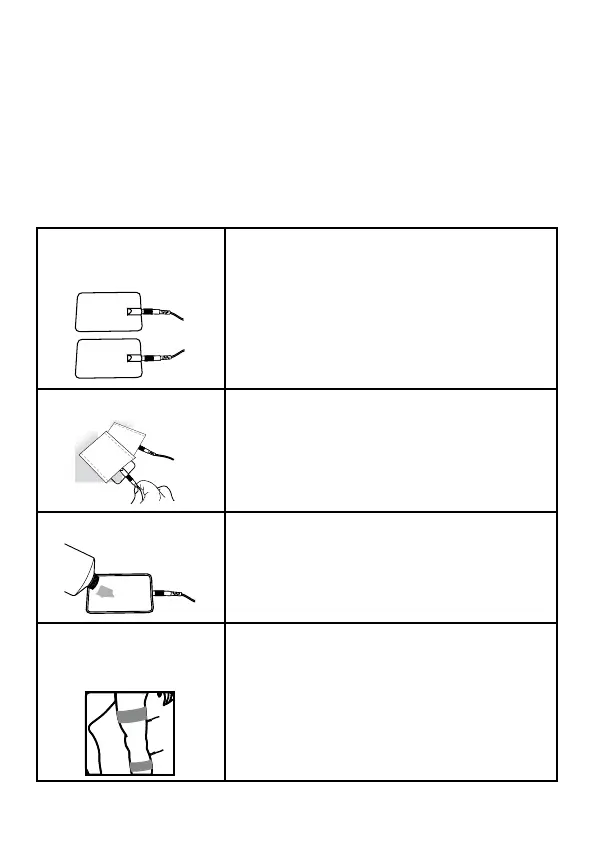

Rubber Electrodes
- Connecting Lead
Wires
Insert the lead with the red (+) electrode
connector into one adhesive electrode.
Insert the lead with the black (-) electrode
connector into the other electrode.
Make certain the lead wires are seated
completely into the electrodes, and
there are no bare metal parts of the pins
exposed.
Conductive Medium 1 Insert the rubber electrodes into the
electrode sponges that have been
moistened with distilled water.
Conductive Medium 2 Liberally apply transmission gel to
electrode prior to placement on the
patient. Please note: purchase the
transmission gel with CE mark or that has
been cleared by the FDA.
Elastic Straps to
secure rubber
electrodes in place
Use Nylon Wrap to secure each rubber
electrode into position on the patient.
