5.3 Quick Set-up for Combo Therapeutic (Ultrasound and
Electrical Stimulation)

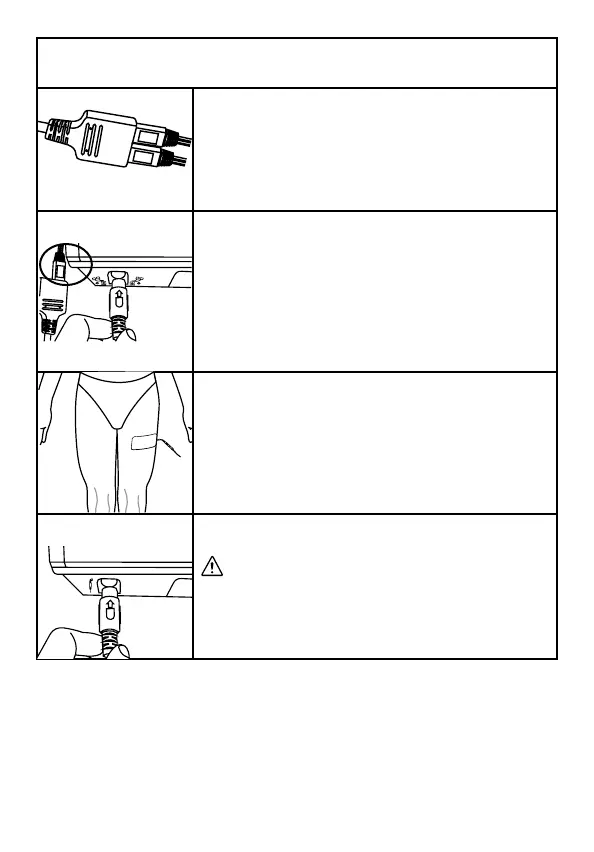

1. In Combo therapeutic mode, the Ultrasound
probe is the Negative of channel 2. To create
a combination US/EStim connection, connect
the combination lead wire (1 lead) to the
positive side of channel 2. Channel 1 will have
no output.
2. Plug the cable into the corresponding
output connector on ComboCare™.
Connect the electrode to the Channel 2
connector on the back of the device. Channel 1
will remain open.
3. Connect combination lead wire (red) to the
grey connector. Channel 1 should remain open
(as shown circled, to the left).
4. Connect one electrode to the combination
lead wire (red) and place near (above or
below) area being treated with combination
therapy.
Note: Make sure electrode is far enough away
from treatment site so it does not come in
contact with ultrasound gel during treatment.
5. For ultrasound, plug the ultrasound
applicator into the ultrasound connector.
CAUTION: Don’t plug or pull out the
ultrasound applicator when the device turned
on.
