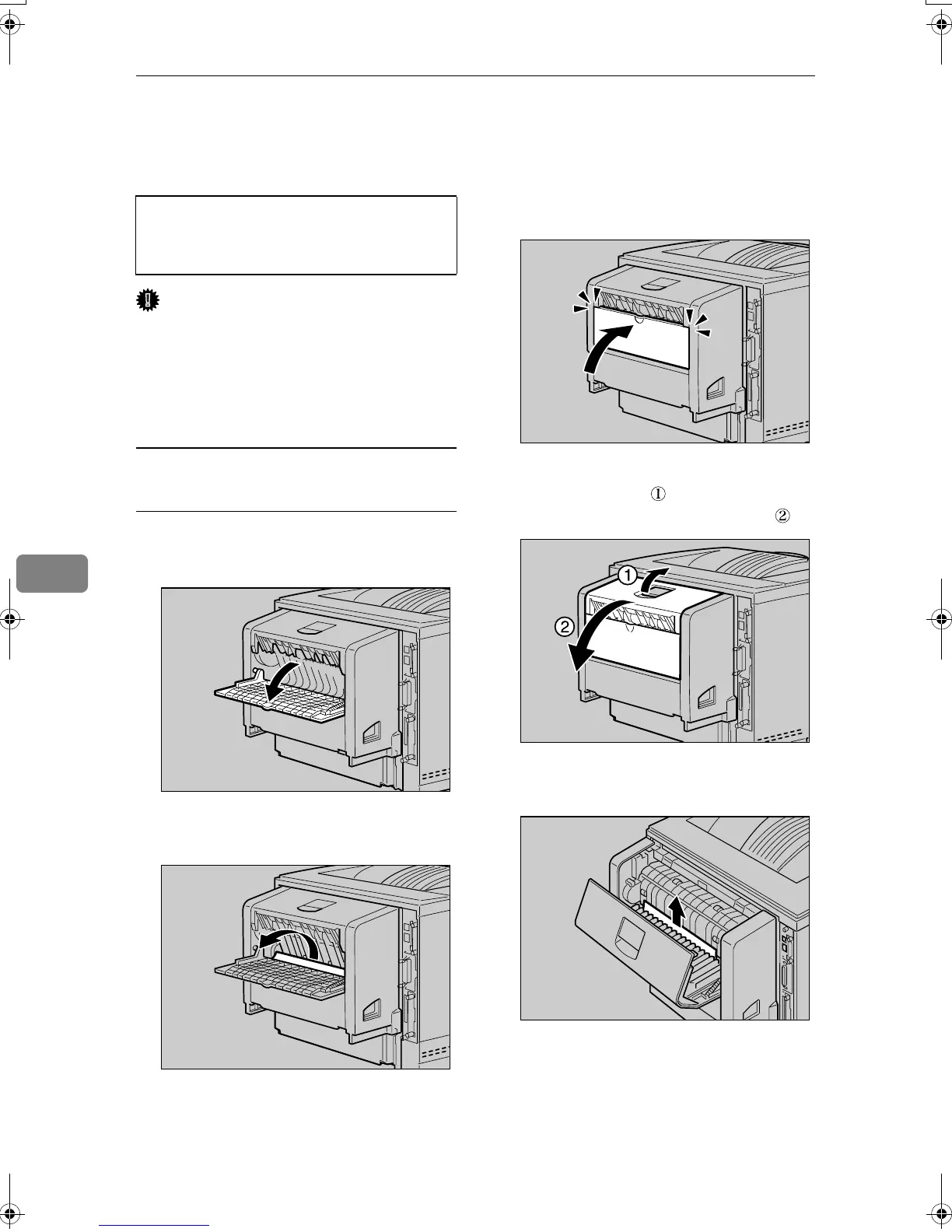

When “Remove Misfeed Duplex Unit” Appears
R
CAUTION:
Important
❒ Forcefully removing misfed paper
may cause paper to tear and leave
scraps of paper in the duplex unit.
This might cause a misfeed and
damage the printer.
Removing the misfed paper inside
the cover
A Open the rear cover of the duplex
unit.
B Remove the misfed paper.
C Close the rear cover of the duplex
unit.
D Lift the lever ( ), and then open
the cover of the duplex unit ( ).
E Remove the misfed paper.
• When removing misfed paper,
do not touch the fusing section
because it becomes very hot.
ZKGY310E
ZKGY320E
ZKGY330E
ZKGY340E
ZKGY350E
