Installation Procedure
C274 2-6 SM
6. Install the master roll.

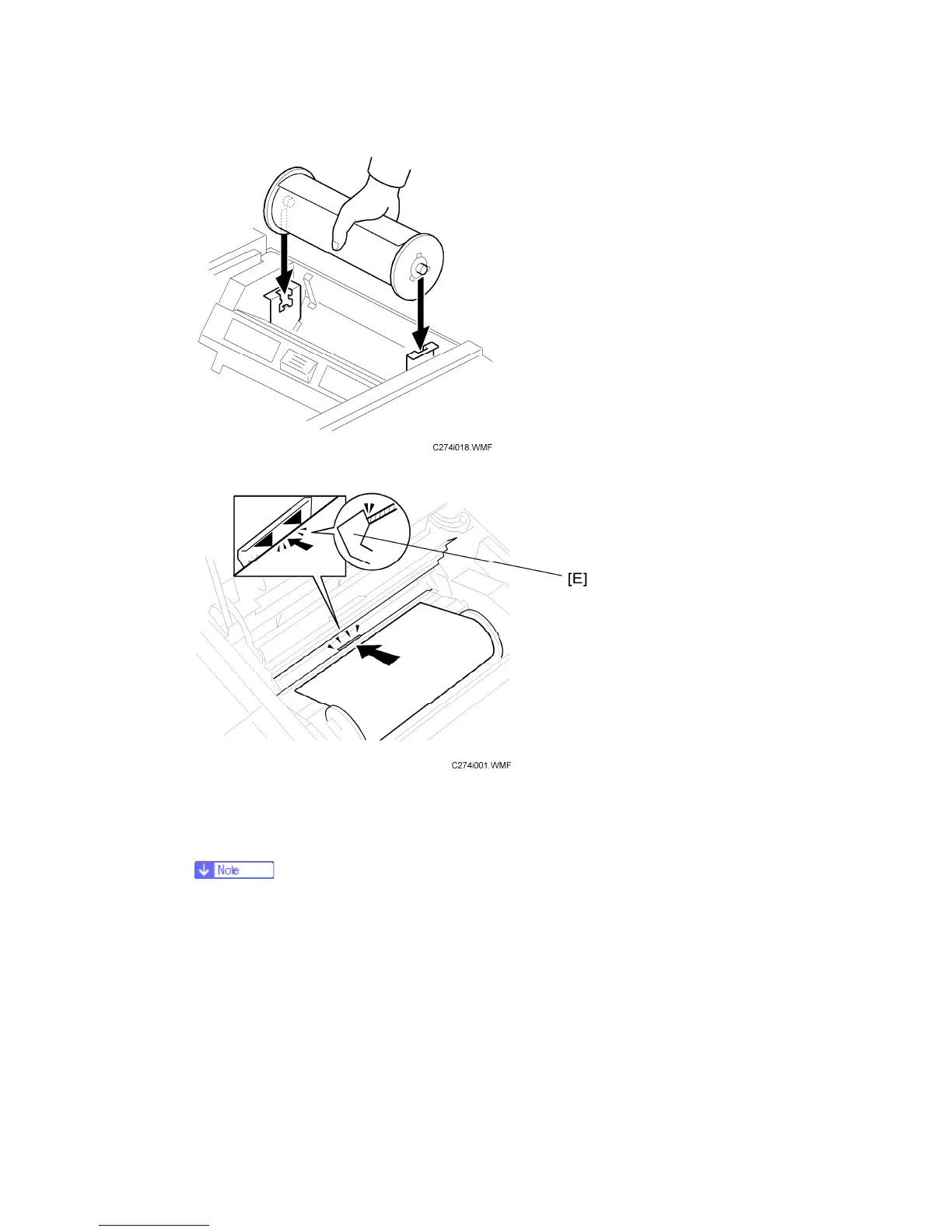

7. Open the master making unit cover, and insert the leading edge of the master roll
under the platen roller. The arrows [E] indicate the correct position of the master
leading edge.
The leading edge of the master does not enter the interior of the master
making unit, because the part at the arrows [E] is convex.
