Installation Procedure
C274 2-10 SM

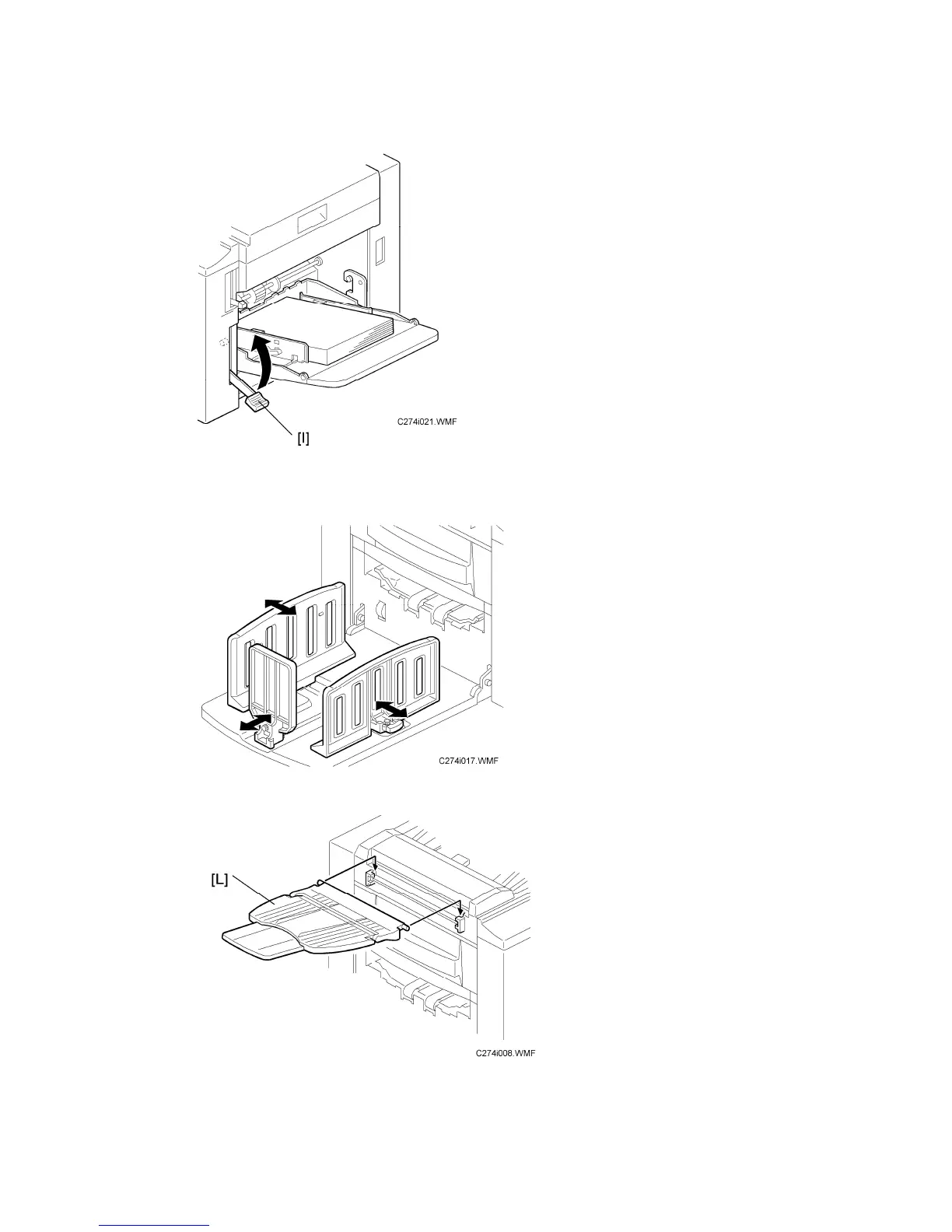

18. Load paper into the paper table.
19. Shift the paper feed tray adjustment lever [I] up to the paper feeding position.
20. Adjust the side and end fences of the paper delivery table to match the paper size.
21. Attach the original table [L].
