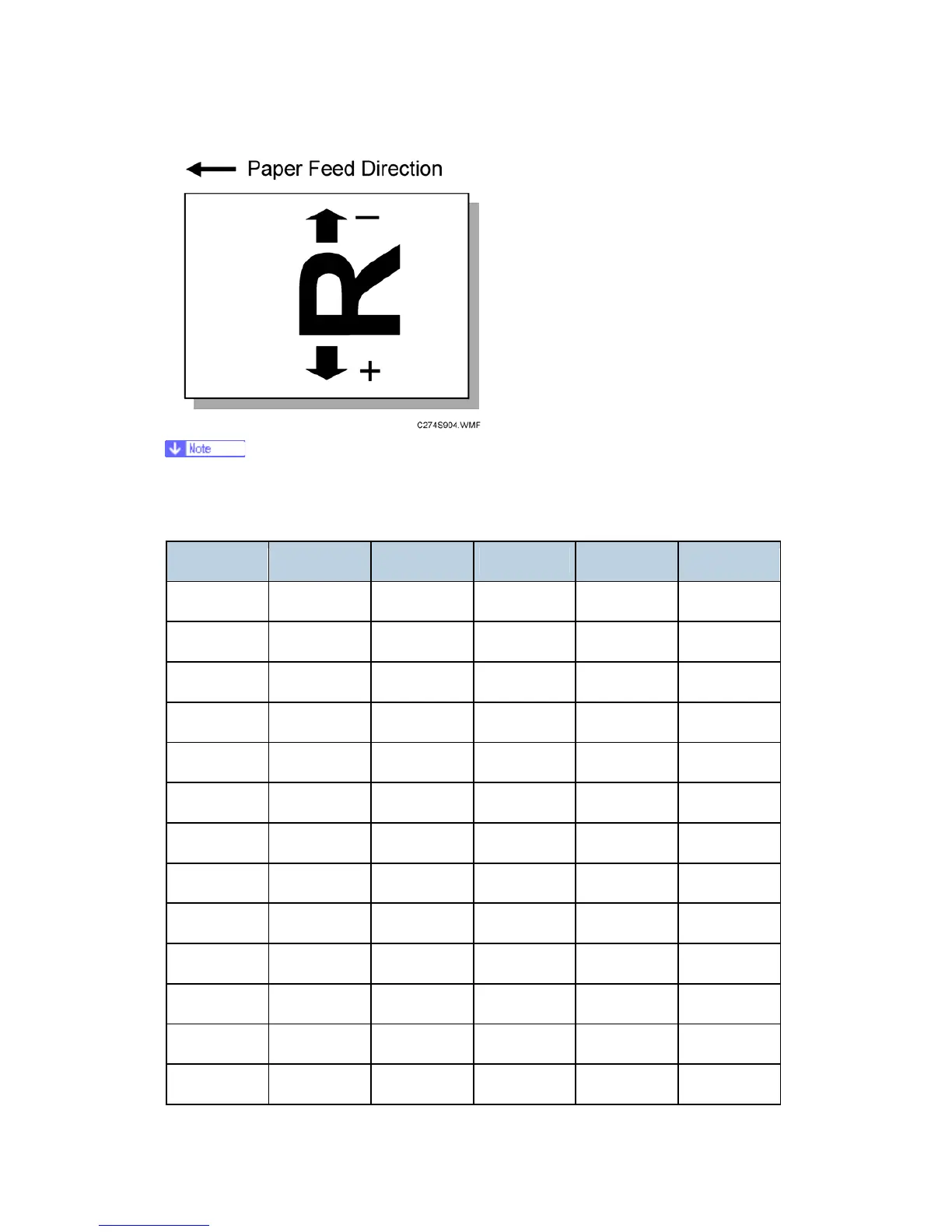

Image Adjustment
C274 4-8 SM
The image position on a trial print, which is automatically made after making a
master, tends to vary. Do not use the trial print when making adjustments.
DIPSW101-5 DIPSW101-6 DIPSW101-7 DIPSW101-8 Difference Difference
ON ON ON ON -14dot -1.185mm
OFF ON ON ON -12dot -1.016mm
ON OFF ON ON -10dot -0.847mm
OFF OFF ON ON -8dot -0.677mm
ON ON OFF ON -6dot -0.508mm
OFF ON OFF ON -4dot -0.339mm
ON OFF OFF ON -2dot -0.169mm
OFF OFF OFF ON 0 0
OFF OFF OFF OFF 0 0
ON ON ON OFF +14dot +1.185mm
OFF ON ON OFF +12dot +1.016mm
ON OFF ON OFF +10dot +0.847mm
OFF OFF ON OFF +8dot +0.677mm
