Drum
SM 4-33 C274
Replacement
and
Adjustment
Do not scratch the cloth screen or metal screen.
Properly insert the edge of the belt crossing [A] on the cloth screen under the mylar [B]
on the metal screen, as shown above.
Otherwise, ink will leak from the trailing edge of the master on the drum during a long
printing run.

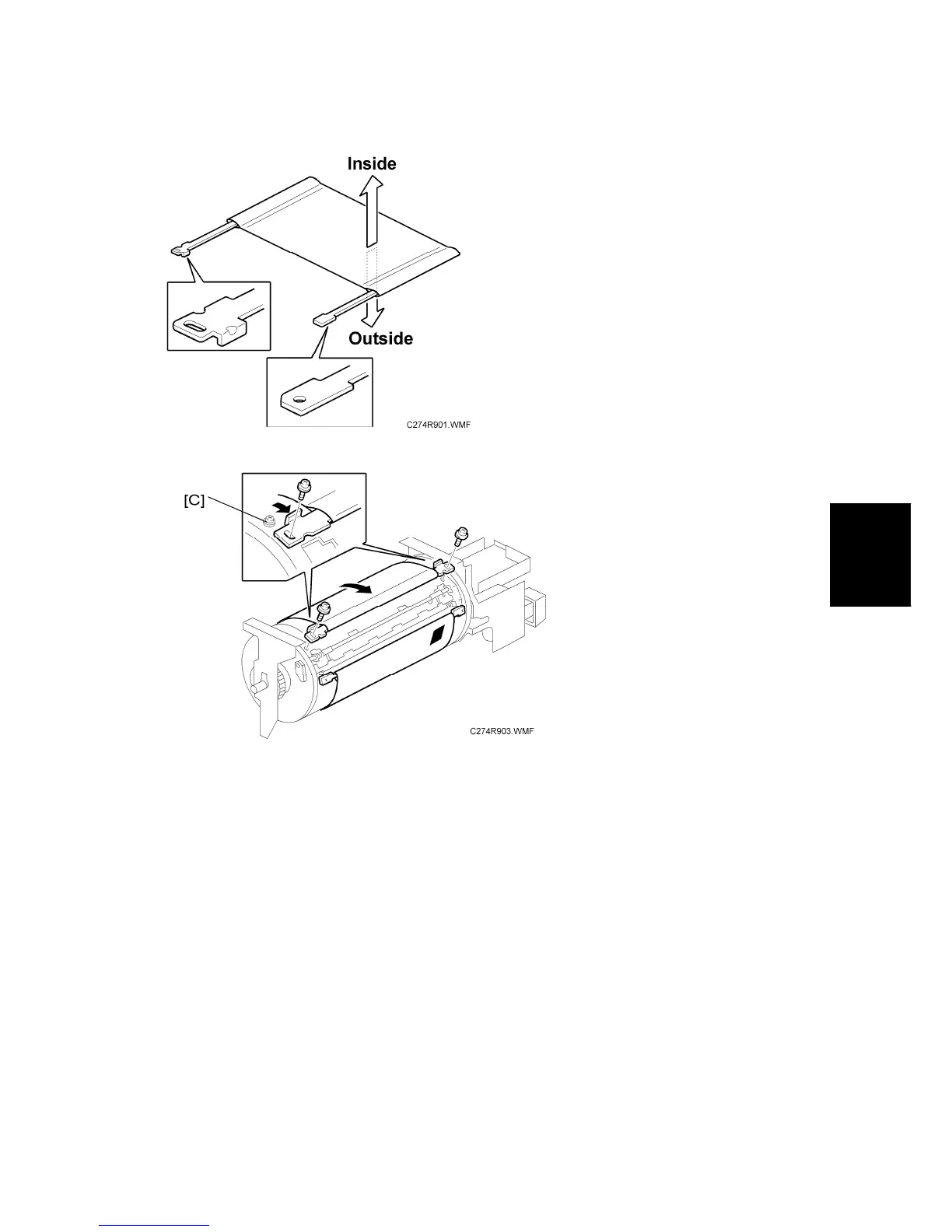

Make sure that the correct side of the screen is facing up. In addition, make sure that
the stays for securing the cloth screen are positioned correctly. (Refer to the upper
illustration.)
When replacing the cloth screen, spread the screen around the metal screen while
strongly pulling the stay [C]. Adjust the stay so that it is parallel to the master clamper,
then tighten the screws.
Make sure that the cloth screen is not wrinkled while spreading it around the drum.
