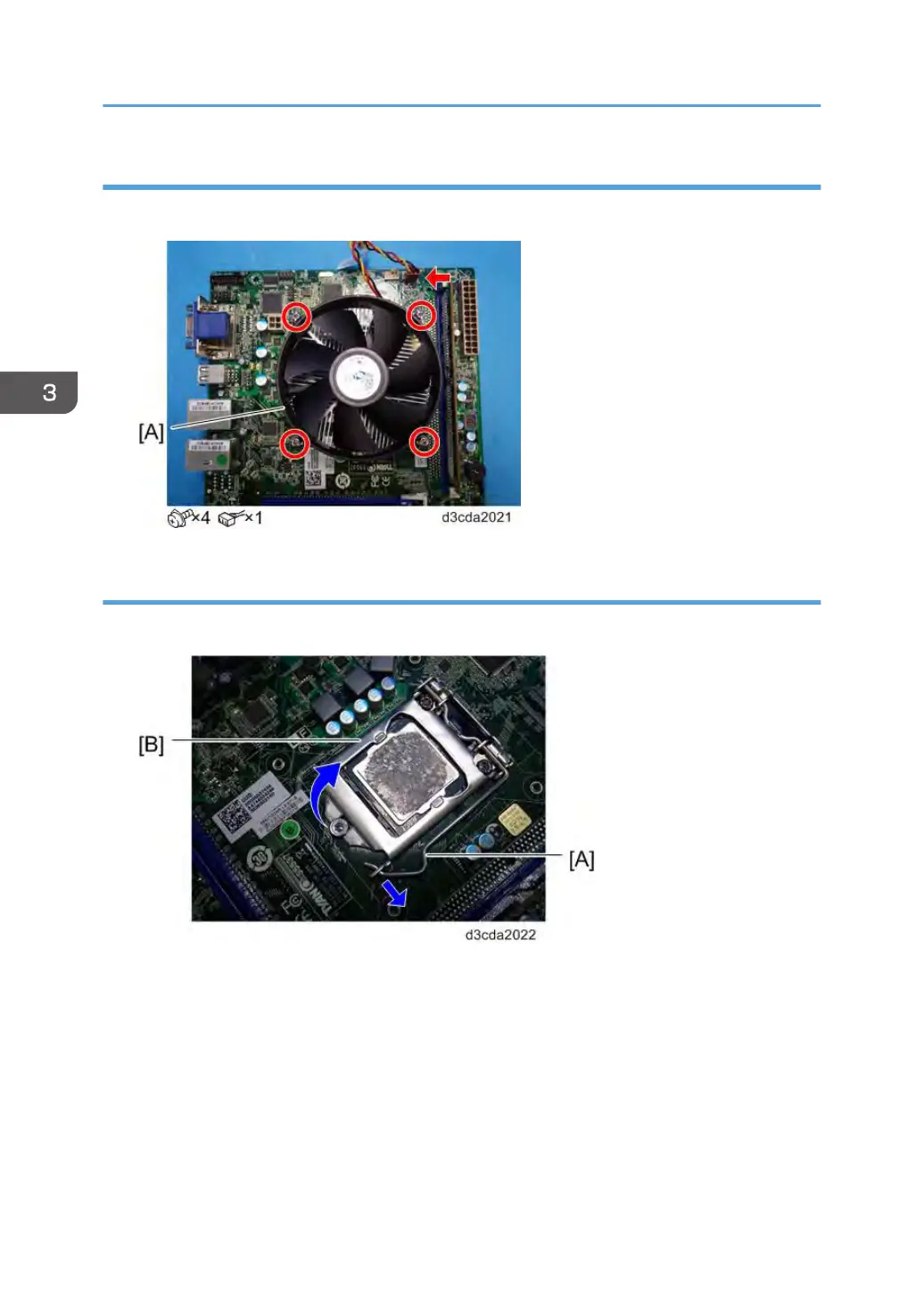

Cooling Assembly Removal Procedure
1. Remove the cooling assembly [A].
CPU Removal Procedure
1. Push the lever [A] to release the loadplate [B].
3. Replacement
