Ricoh IM C5500 Series User Manual

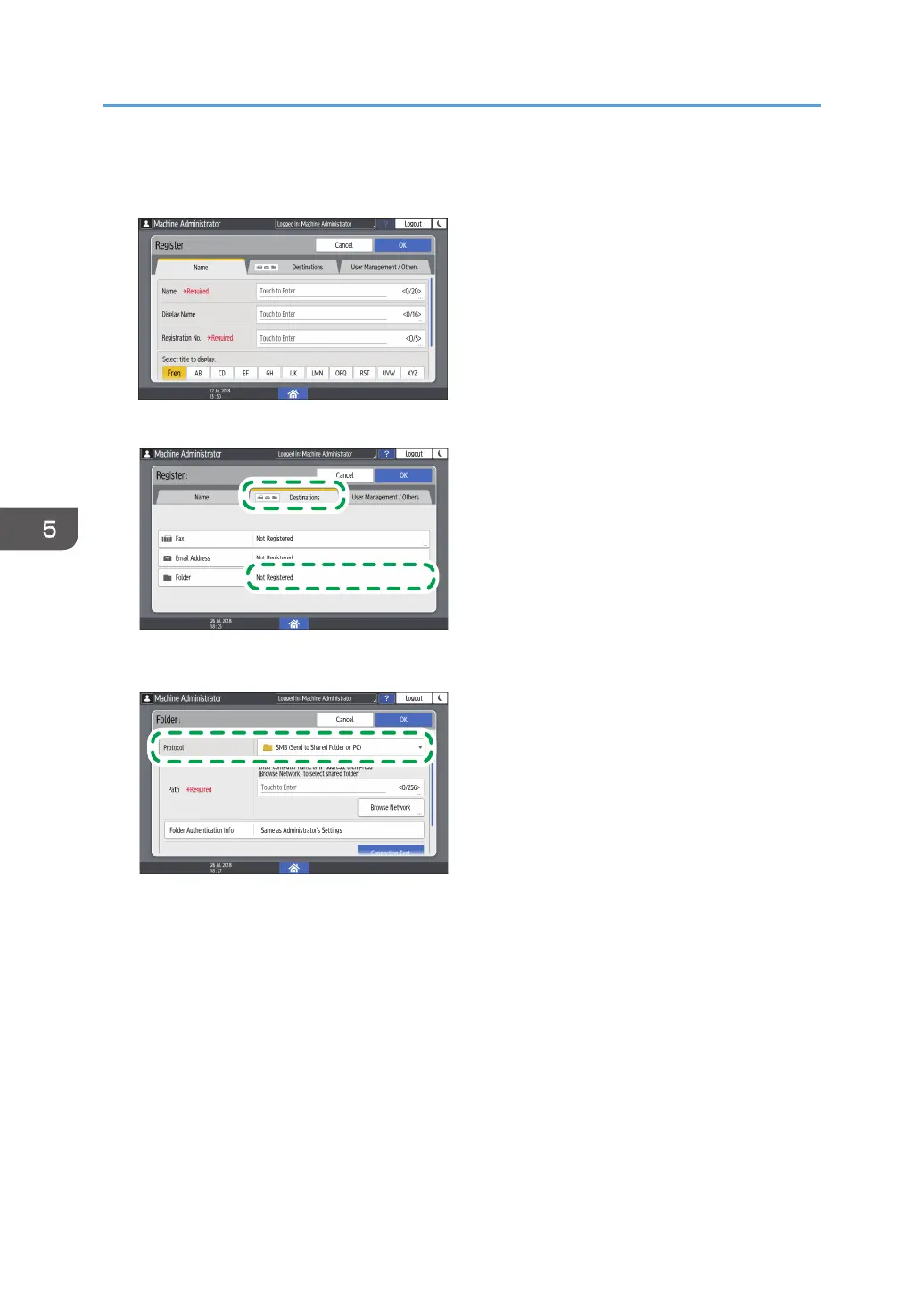

3. Enter the information of the destination in the input boxes displayed on the [Name] tab,
and select the title to classify the destination.
4. Press the [Destinations] tab, and then press [Folder].
DZC133
5. Select [SMB (Send to Shared Folder on PC)] in [Protocol].
DZC134
6. Specify the network path to the shared folder in "Path".
Entering the path name manually
If the computer name is "YamadaPC" ([1] on the check sheet) and the shared folder name is
"shared_doc" ([4]), enter as follows:
\\YamadaPC\shared_doc
Selecting a folder from the list
Enter the IP address or host name of the computer on which to search for a shared folder,
press [Browse Network], and then select the destination folder.
7. Under [Folder Authentication Info], select [Specify Other Authentication Information] and
then enter the name and password of the login user who will access the shared folder.
5. Scan
156

Ricoh IM C5500 Series Specifications

General

Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	200, 000 pages
Functions	Print, Copy, Scan, Fax (optional)
Type	Color Laser Multifunction Printer
Copy Resolution	600 x 600 dpi
Print Speed	55 ppm (B&W, Color)
Paper Capacity	Maximum: 4, 700 sheets
Connectivity	USB 2.0, Ethernet, Wi-Fi
Duplex Printing	Automatic
Copy Speed	55 cpm (black/white and color)
Scan Resolution	Up to 600 dpi
Fax Resolution	300 x 300 dpi
