Ricoh MP 402SPF Service Manual

4.Replacement and Adjustment
134

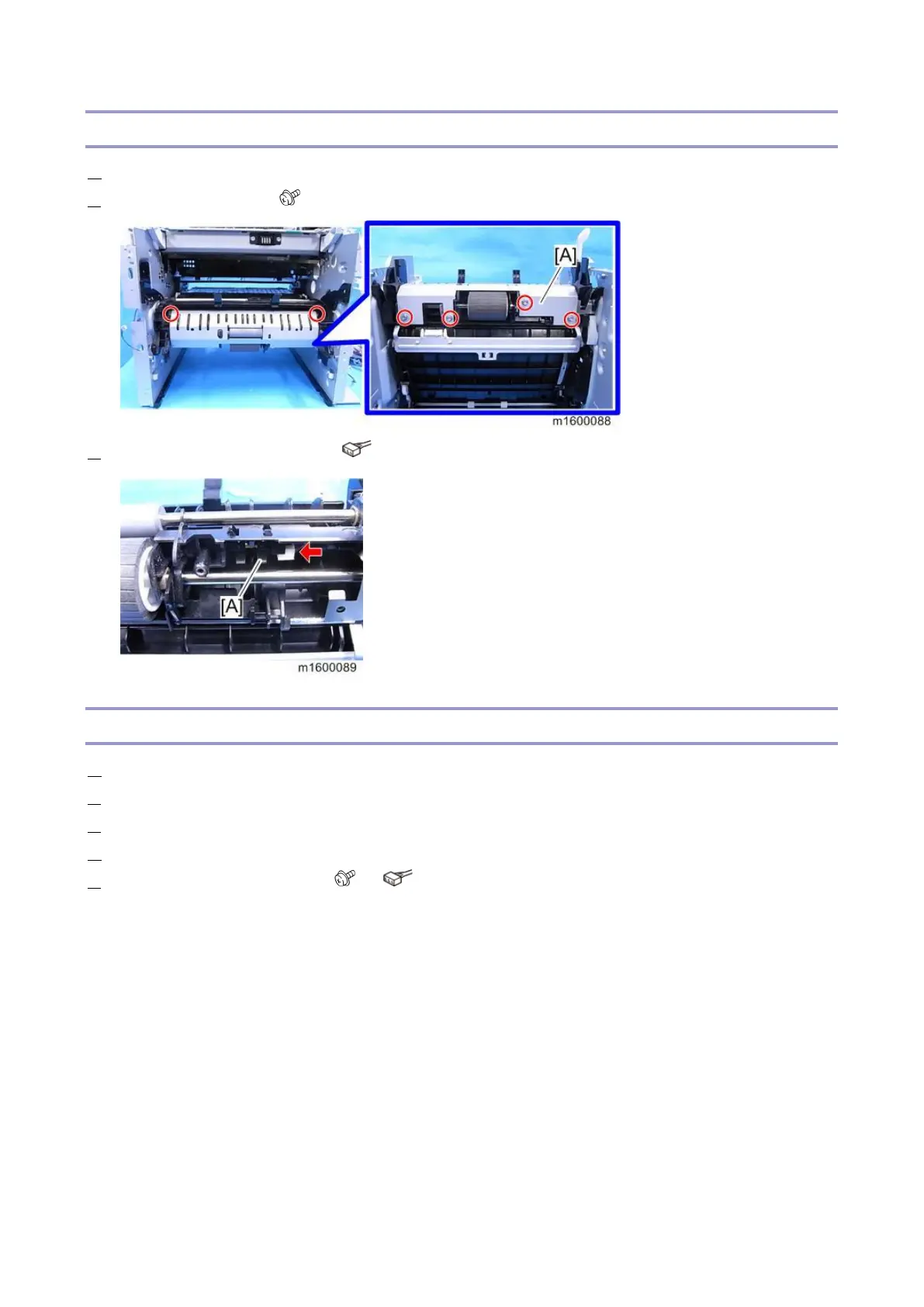

Paper End Sensor
1. Remove the bypass feed unit. (Bypass Feed Unit)
2. Remove the bracket [A]. ( x6)
3. Remove the paper end sensor [A]. ( x1, Hook)
Bypass Feed Unit
1. Remove the front cover. (Front Cover Unit)
2. Remove the left cover. (Left Cover)
3. Remove the right cover. (Right Cover)
4. Remove the bypass bottom plate clutch. (Bypass Bottom Plate Clutch)
5. Remove the bypass feed unit [A]. ( x5, x2)
