6.Troubleshooting
302

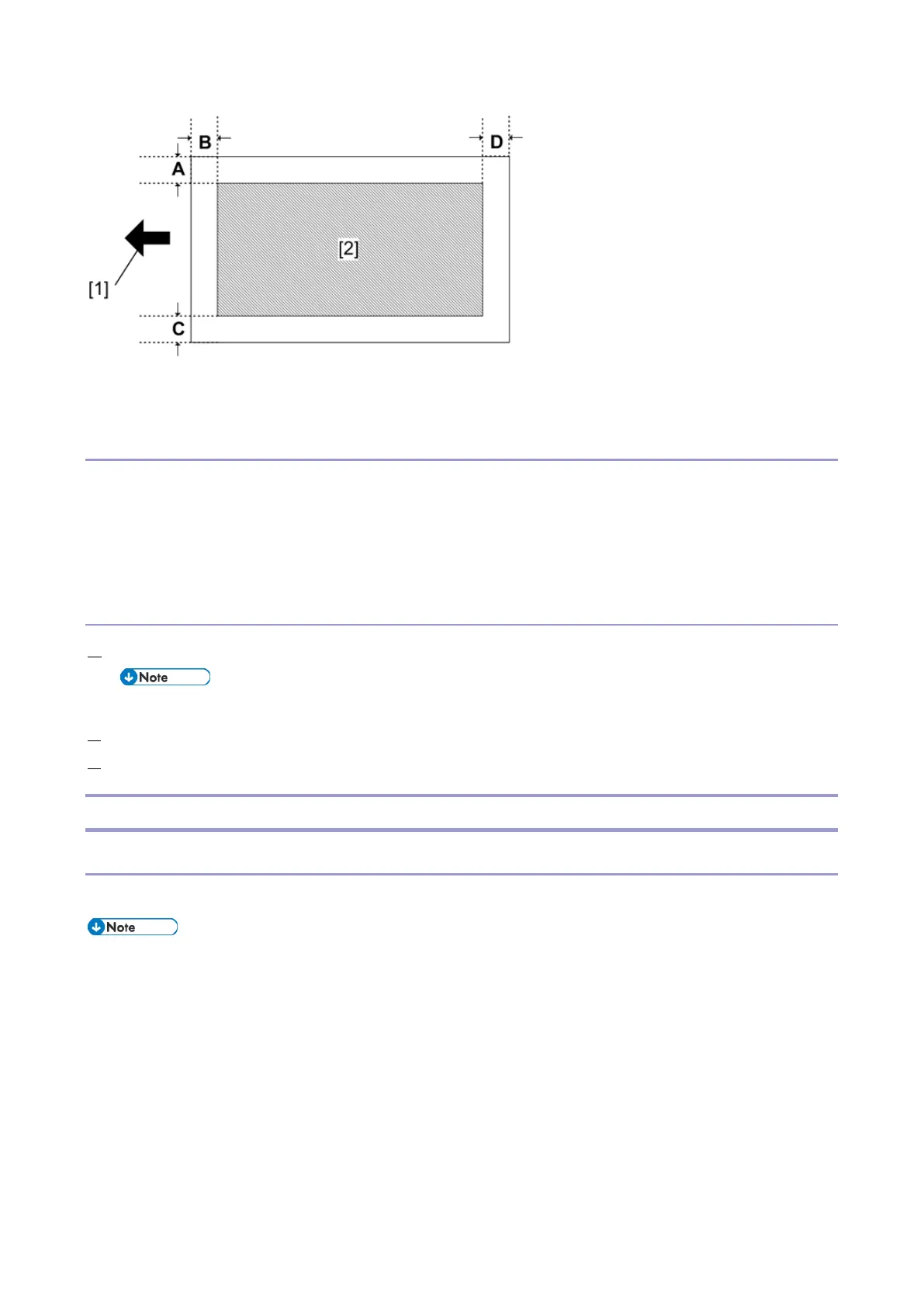

ï‚· [1]: Paper feed direction
ï‚· [2]: Print area
Adjustment Reference Values
 B: Leading edge (Sub scanning direction): 3.0 ± 1.5 mm
ï‚· D: Trailing edge (Sub scanning direction): 3.0 mm
 C: Left (Main scanning direction): 2.0 ± 1.5 mm
ï‚· A: Right (Main scanning direction): 2.0 mm
Adjustment Procedure
1. Enter the SP mode, and then print the test pattern (17: Trim Area) with SP2-109-001.
ï‚· Print the test pattern, and then adjust the leading edge registration in the SP mode to the optimum value.
2. Do SP1-002-(001,002,003,004,006) to check and adjust the registration.
3. Check the side-to-side registration for each paper feed tray.
Scanner, SPDF Image Adjustment
Scanner Image Adjustment
Before the scanner adjustment, do the Side-to-Side registration and blank margin width adjustment.
ï‚· Use a test chart to adjust these settings.
