Ricoh MP 402SPF Service Manual

4.Replacement and Adjustment
142
 Use pliers to pinch the link in order to release it.
6. Remove the duplex entrance sensor [A]. ( x1, Hook)
Registration Roller (Driven)
1. Remove the drive unit. (Drive Unit)
2. Remove the gear unit. (Gear Unit)
3. Remove the paper size switch (Paper Size Switch)
4. Remove the registration sensor. (Registration Sensor)
5. Remove the HVPS with bracket. (HVPS with Bracket)

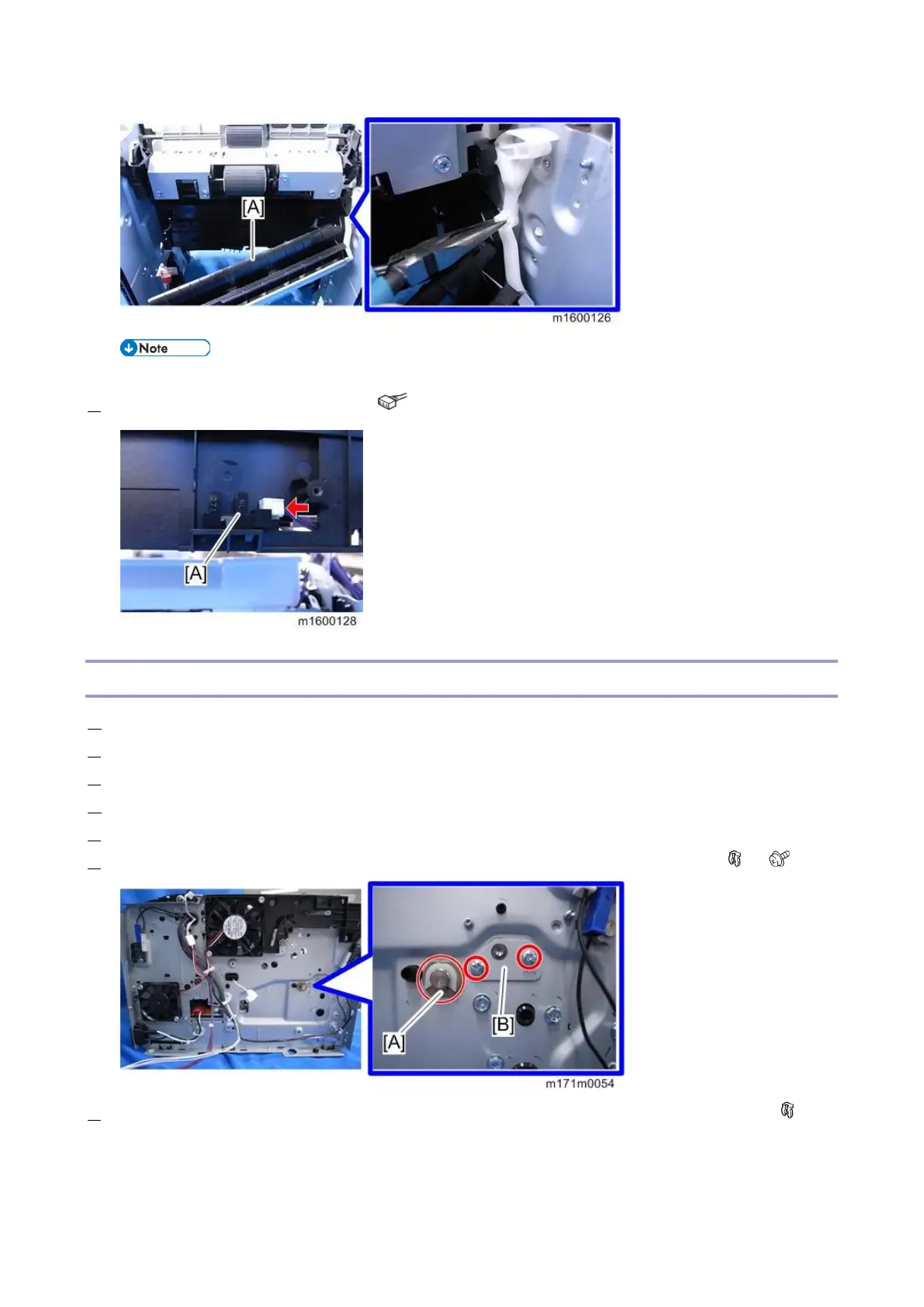

6. Release the bearing [A] ×1 at the left end of the registration roller (drive) and fixing plate [B] ×1. ( x1, ×2)
7. Release the bearing at the right end of the registration roller (drive), and remove the grounding plate [A]. ( x 1,

Ricoh MP 402SPF Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Maximum Print Resolution	1200 x 1200 dpi
Maximum Paper Capacity	1, 600 sheets
Duplex Printing	Yes
Scan Resolution	600 x 600 dpi
Fax Capability	Yes
Maximum Paper Size	A4
Warm-up Time	21 seconds
Memory (RAM)	2 GB
Fax Transmission Speed	33.6 Kbps
Copy Resolution	600 x 600 dpi
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB, Ethernet, Wi-Fi
Control Panel	Touchscreen
Mobile Printing	Yes
Hard Disk Drive	320 GB (Optional)
Network Connectivity	Ethernet
Print Speed	Up to 42 ppm (Letter)
Copy Speed	Up to 42 cpm (Letter)
