Ricoh MP 6503 Series User Manual

Placing Originals
Placing Originals on the Exposure Glass
• Keep your hands away from the hinges and exposure glass when lowering the ADF. Not doing
so may result in an injury if your hands or fingers are pinched.
• Do not lift the ADF forcefully. Otherwise, the cover of the ADF might open or be damaged.
1. Lift the ADF.
Be sure to lift the ADF by more than 30 degrees. Otherwise, the size of the original might not be
detected correctly.

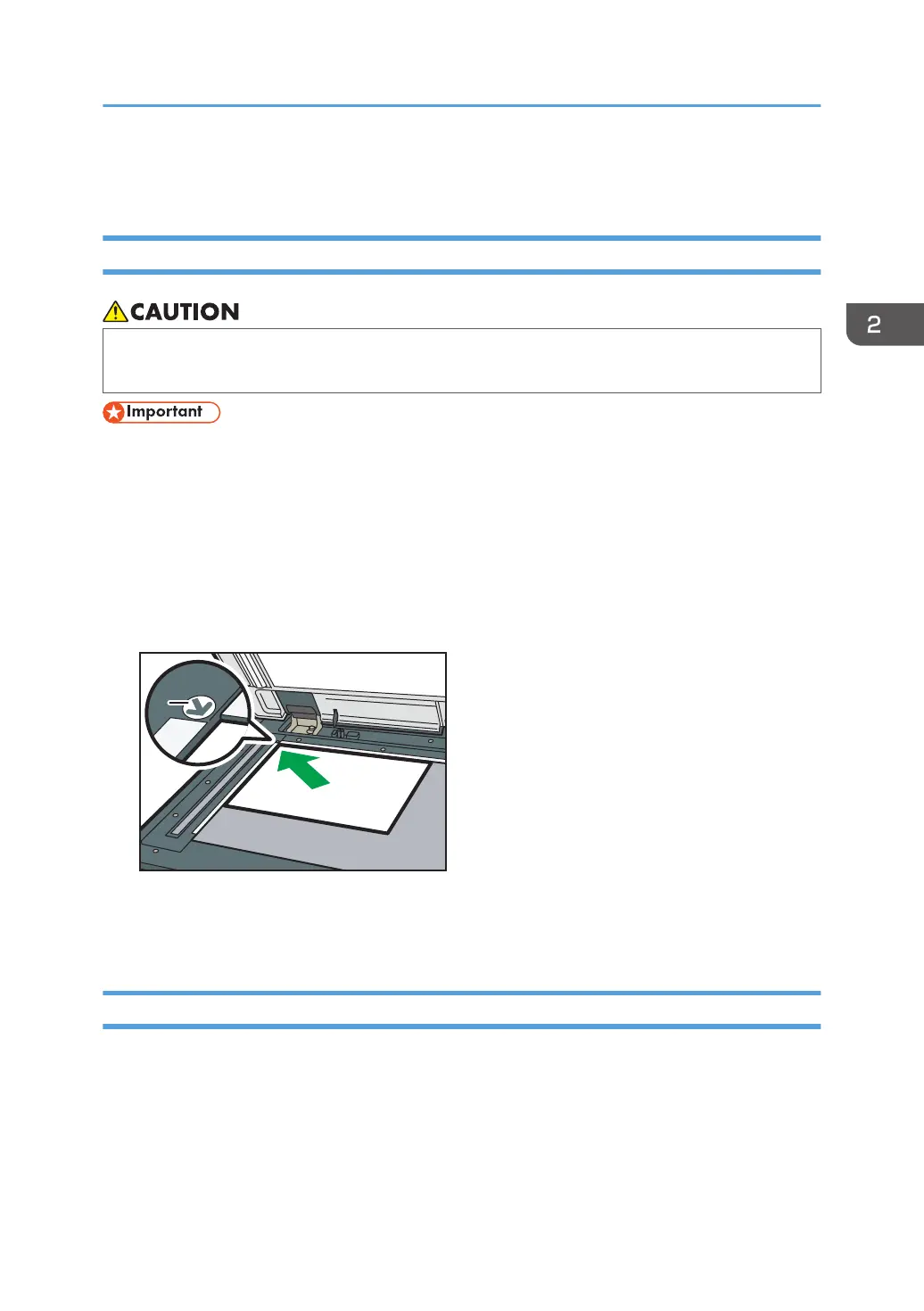

2. Place the original face down on the exposure glass. The original should be aligned to the
rear left corner.
Start with the first page to be scanned.
1
1
DPZ017
1. Positioning mark
3. Lower the ADF.
Placing Originals in the Auto Document Feeder
Be sure not to block the sensor or load the original untidily. Doing so may cause the machine to detect
the size of the original incorrectly or display a paper misfeed message. Also, be sure not to place
originals or other objects on the top cover. Doing so may cause a malfunction.
Placing Originals
69

Ricoh MP 6503 Series Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Hard Disk Drive	320 GB
Power Source	220 - 240 V, 50/60 Hz
Supported Operating Systems	Windows, Mac OS, Linux
Monthly Duty Cycle	300, 000 pages
Type	Multifunction Printer
Print Speed	65 ppm
Connectivity	USB 2.0, Ethernet
Supported Paper Sizes	A3, A4, A5, B4, B5, Legal, Letter, Executive
First Print Speed	3.2 seconds
Paper Weight	52 - 300 gsm
Memory	2 GB
Scanning Speed	120 ipm
Scan Resolution	600 dpi
